Okuma MB-46VAE

Photo Gallery

Okuma - MB-46VAECZ-MIL-OKU-2007-00002

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

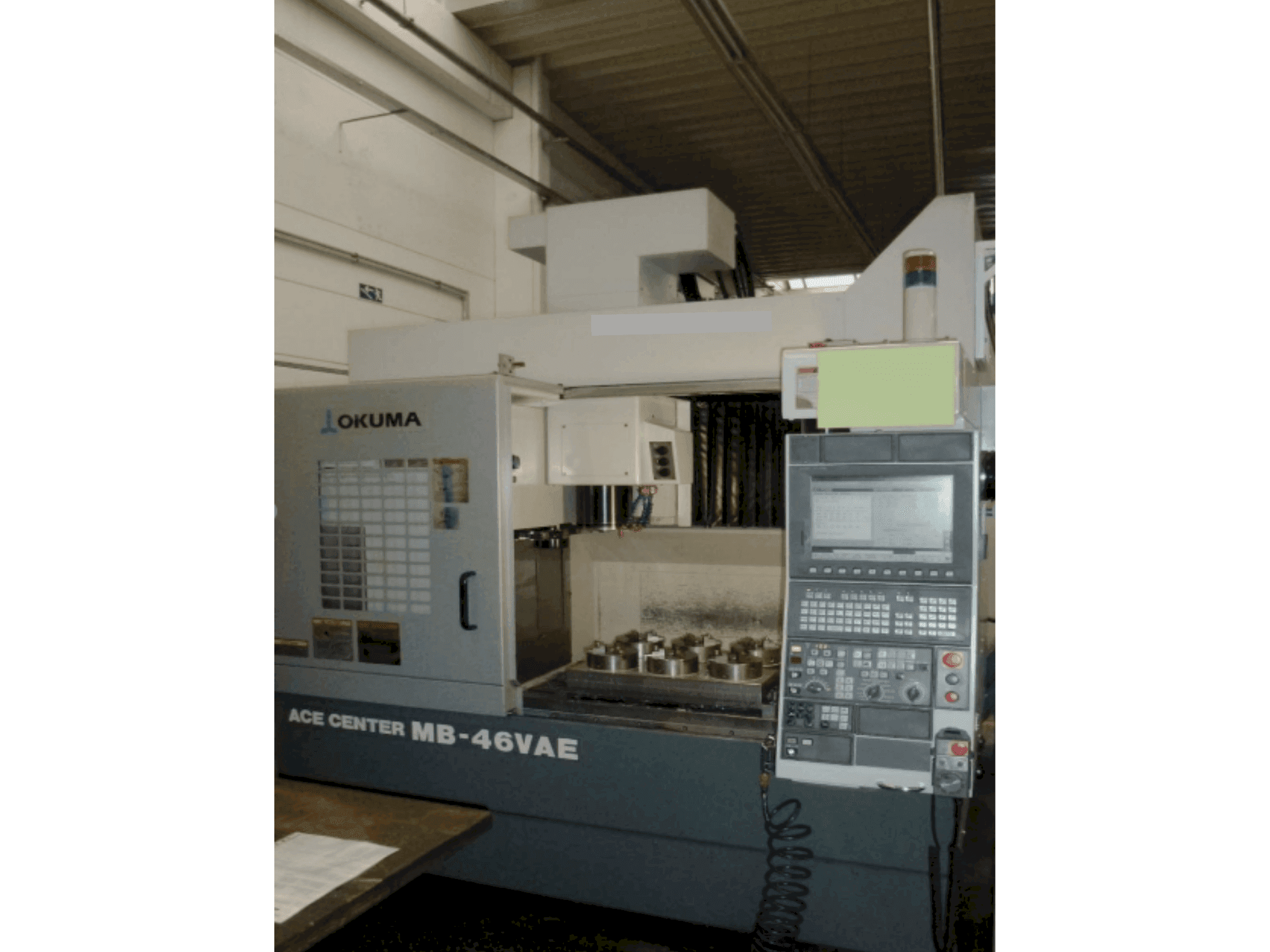

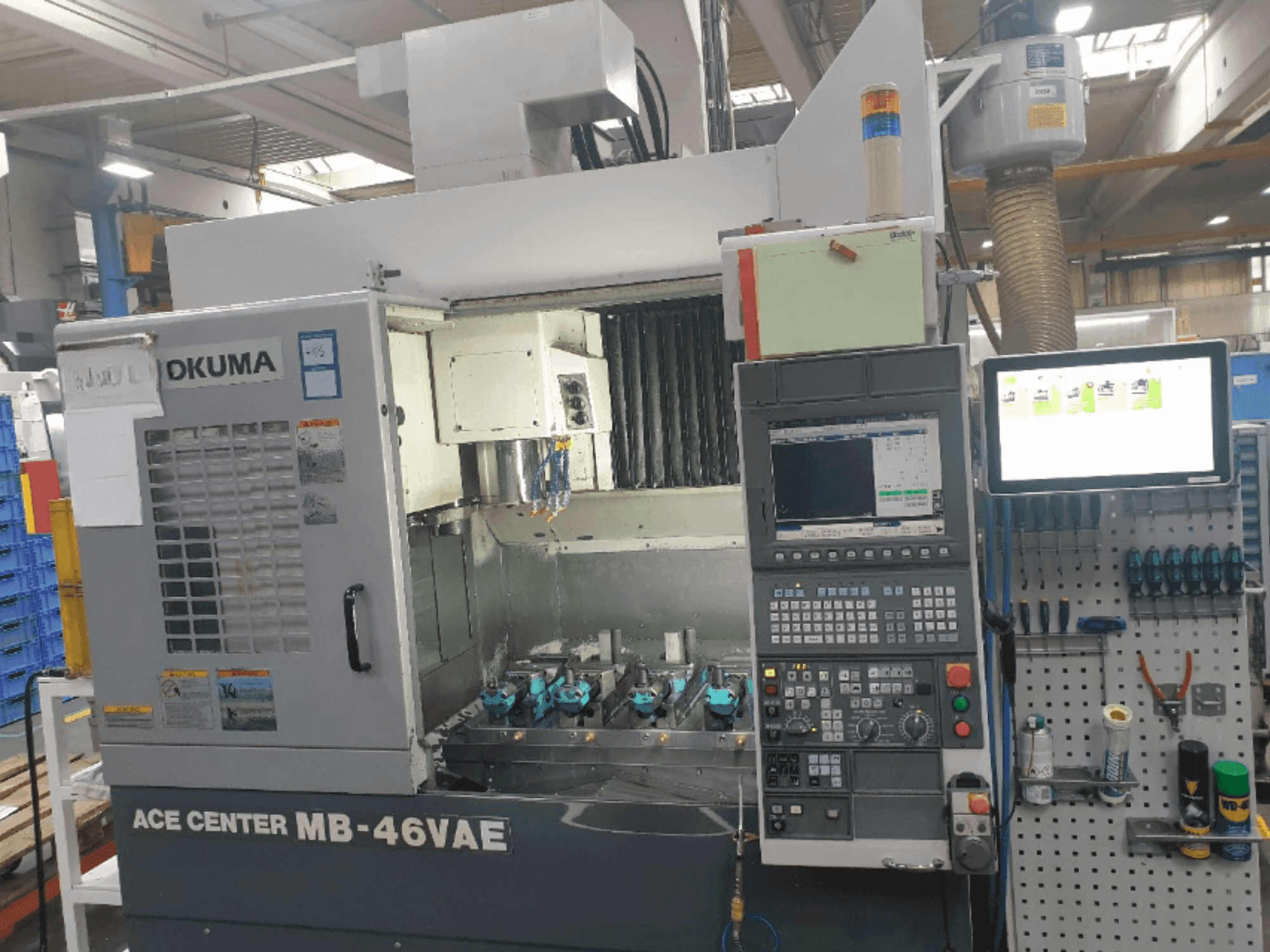

➤ Used Okuma MB-46VAE Vertical Machining center

Show in original language

This Okuma MB-46VAE Vertical Machining center was manufactured in the year 2007 in Japan and is controlled by an Okuma OSP P200M control unit. The machine has a spindle speed of 15000 rpm. It is equipped with 3 axis, 32 tool slots and tool holder SK40. It is currently under production and in good condition due to regular maintenance.

Overview

brand: Okuma
year: 2007
MODEL: MB-46VAE
application type: Milling
Location: Czech Republic
machine type: Vertical Machining Centre
control unit brand: OKUMA

Technical Information - Okuma MB-46VAE

General Data

Measurements width: 2805 MM
Measurements depth: 2160 MM
Measurements height: 2746 MM
Machine weight: 7500 KG

Control Unit

Model: OSP-P200M
Brand: OKUMA

Main drive

Number of spindles: 1
Spindle speed range: 15000 1/min

Movement

X-AXIS Movement: 762 mm
Y-AXIS Movement: 460 mm
Z-AXIS Movement: 460 mm

Workpiece

Workpiece weight: 700 kg

Table

Outer length: 1000 mm
Outer width: 460 mm

Tools

Slots in storage: 32
Max weight: 8 kg
Max tool diameter: 90/125 mm
Max tool length: 300 mm
Type of tool holder: SK 40

Media

Power consumption: 37.2 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Min. -max. Height under spindle 150-610 mm
- - Feedrate 32 m/min
- - Rapid feedrate x/y: 40, z: 32 m/min
- - Spindle motor power 22 kw
- - Through spindle coolant
- - Mist collector
- - Chip conveyor
Qualitative Machine Benefits:
- - Good condition, regularly maintained

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
