ONA - HS 600ES-EDM-ONA-2002-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ONA HS 600 Erosion machine

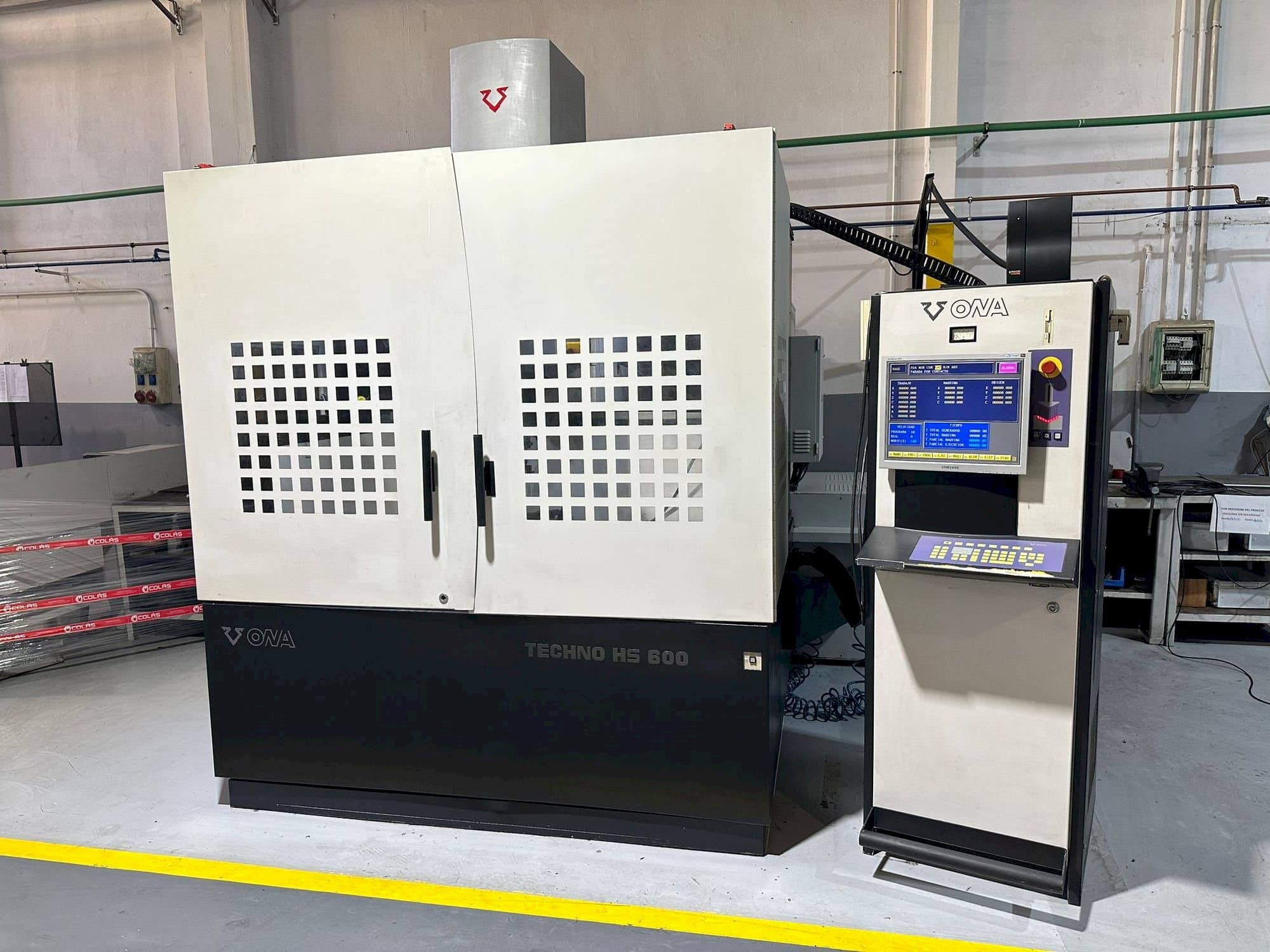

This ONA HS 600 Erosion machine was manufactured in the year 2002.
Overview
- brand: ONA
- year: 2002
- MODEL: HS 600
- application type: EDM
- Location: Spain
- machine type: Die-Sinking EDM Machine
- availability: Sold
- control unit brand: FANUC
Technical Information - ONA HS 600
General Data
- Measurements width: 3500 mm
- Measurements depth: 3300 mm
- Measurements height: 2875 mm
- Machine weight: 7400 kg
Control Unit
- Brand: FANUC
Movement
- X-AXIS Movement: 1000 mm
- Y-AXIS Movement: 600 mm
- Z-AXIS Movement: 500 mm
- C-AXIS Movement: 360º MM
Table
- Outer length: 1200 mm
- Outer width: 800 mm
- Height adjustment: 530 mm
- Table load: 4000 kg
Additional Information
- Technical Machine Benefits:
- - Clamping: erowa
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Sergi Guardia
Payment Terms
Payment in advance
Asset Financing
