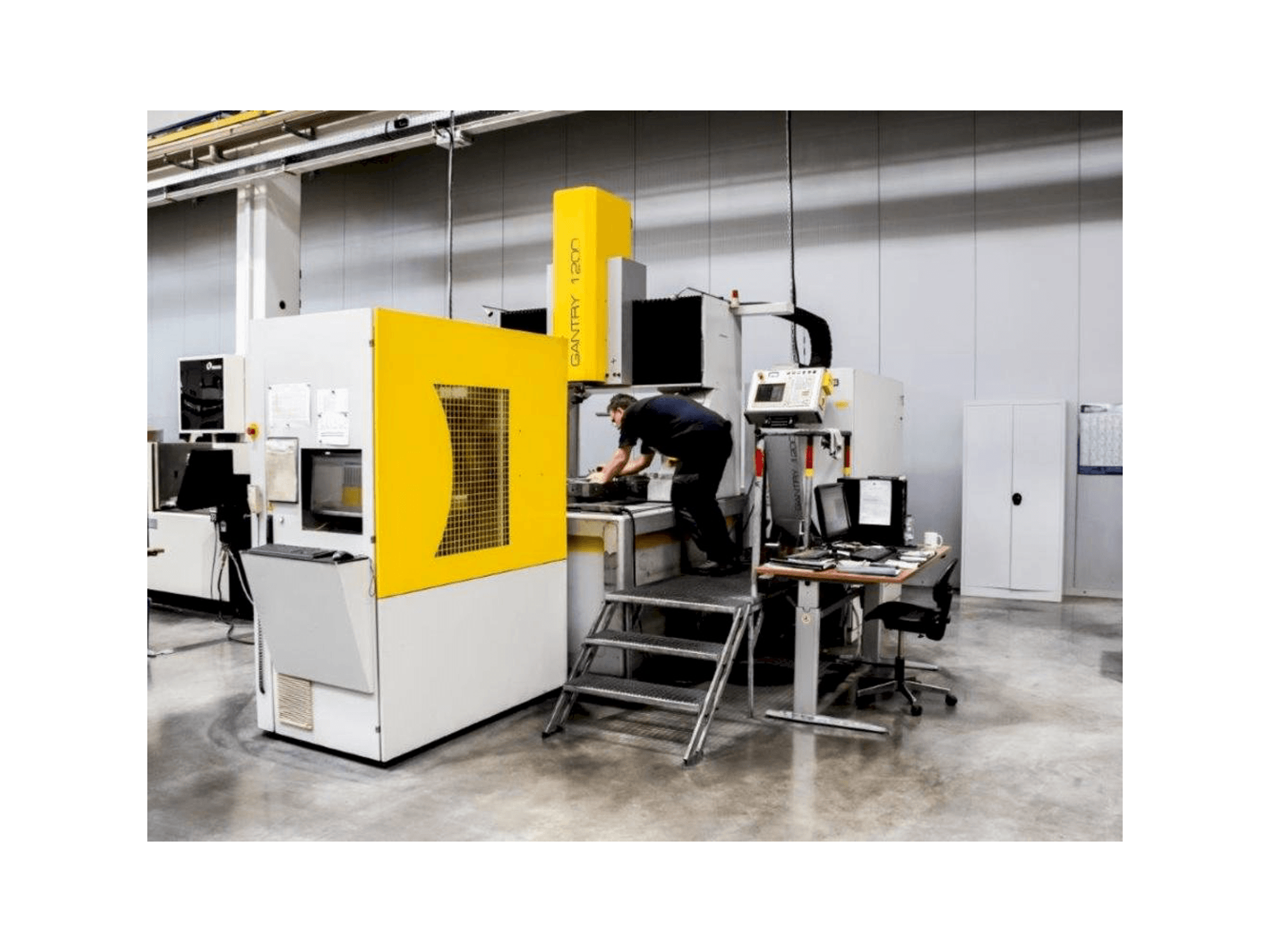

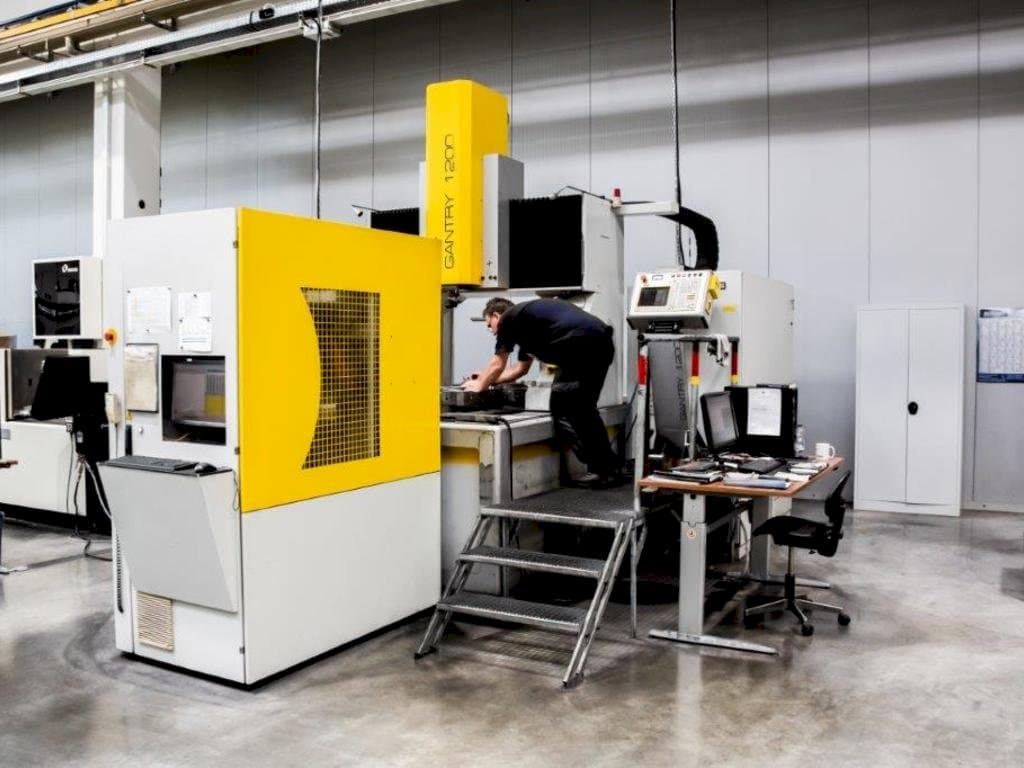

OPS Ingersoll Gantry 1200 erosion machine

Show in original language

This OPS Ingersoll Gantry 1200 erosion machine was built in the year 2006 in Germany. It is equipped with a Mitsubishi - 64 bit CNC control unit and has 4 axis. The machine has a gantry elevation by 250 mm.

Overview

brand: OPS INGERSOLL
year: 2006
MODEL: Gantry 1200
application type: EDM
Location: Germany
machine type: Die-Sinking EDM Machine
availability: Sold
control unit brand: MITSUBISHI

Technical Information - OPS INGERSOLL Gantry 1200

General Data

Measurements width: 2950 mm
Measurements depth: 3900 mm
Measurements height: 3430 mm
Machine weight: 12000 kg

Control Unit

Brand: MITSUBISHI
Model: 64 bit CNC

Main drive

Number of axis: 4

Movement

X-AXIS Movement: 1000 mm
Y-AXIS Movement: 1510 mm
Z-AXIS Movement: 650 mm

Table

Outer length: 1640 mm
Outer width: 1140 mm
Table load: 7500 kg

Additional equipment

- IMC3 automation 60-fold electrode changer
- Accessories: CO2 fire extinguishing system

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Generator output: 70 amps - multi pulse
- - Traverse paths (x, y, z): 1000 x 1500 x 650 mm (875 x 1350 x 650 mm)
- - Gantry elevation by 250 mm
- - Electrode changer: imc-3 60-fold
- - Work bowl (w x d x h): 1770 x 1270 x 680 mm
- - Workpiece clamping table (w x d): 1640 x 1140 mm
- - 60-position changer.
- - Digital display: 0,001 mm
- - Changer total load: 150 kg
- - Atc
Qualitative Machine Benefits:
- - Max. Top load: 400 kg

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
