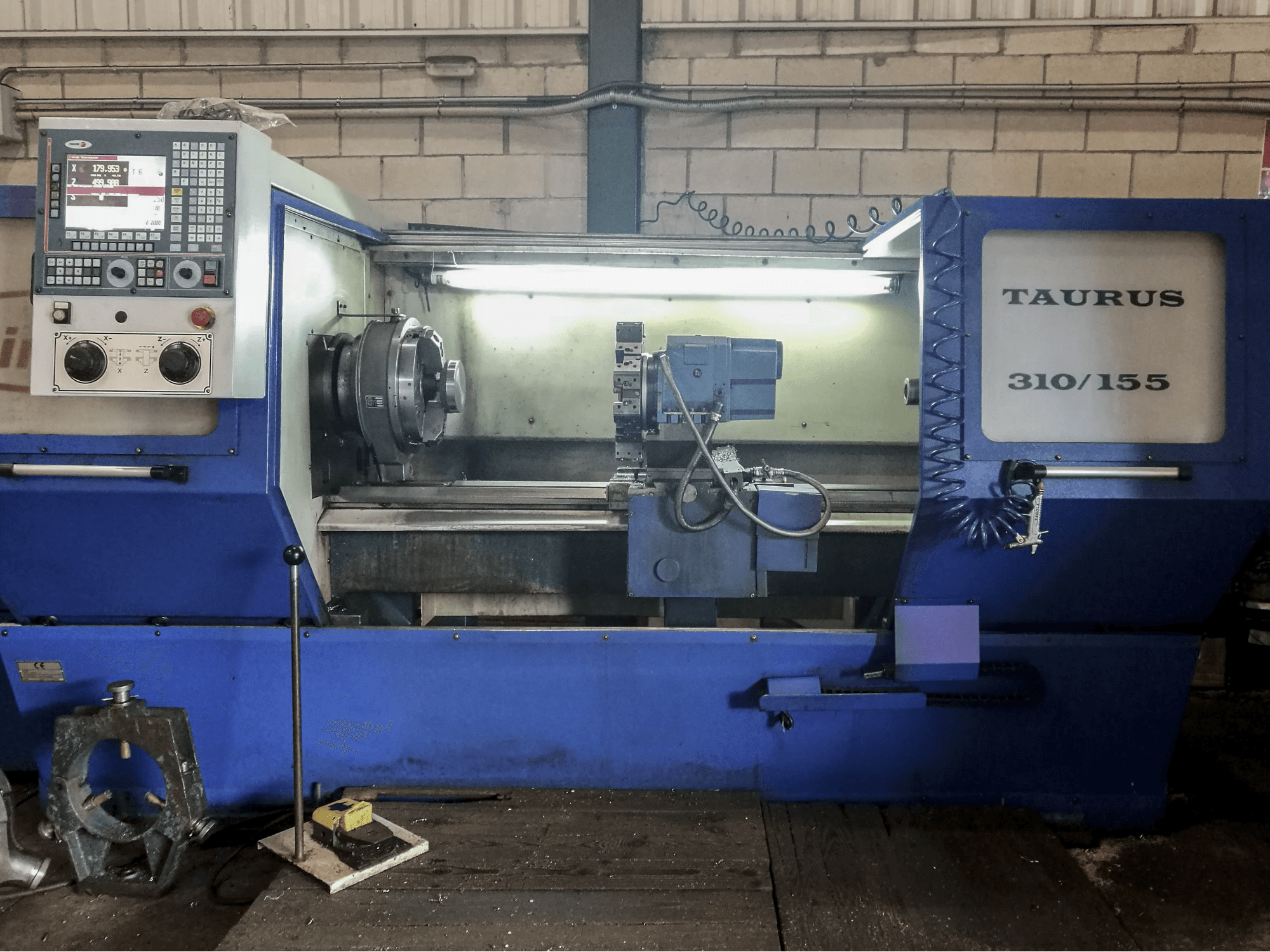

Front view 1 of Pinacho Taurus 310/155 Machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Pinacho Taurus 310/155

Photo Gallery

Pinacho - Taurus 310/155ES-TUR-PIN-2006-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Pinacho Taurus 310/155 Lathe

Show in original language

This Pinacho Taurus 310/155 Lathe from 2006 has a production record of approximately 5000 working hours and was manufactured in Spain. Operated through a Fagor 8025 Control unit, this machine is in a very good status as it was used very little and got its hydraulic plate changed in October 2017.

Overview

brand: Pinacho
year: 2006
MODEL: Taurus 310/155
production hours: 5000
application type: Turning
Location: Spain
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: FAGOR

Technical Information - Pinacho Taurus 310/155

General Data

Measurements width: 4980 mm
Measurements depth: 1915 mm
Measurements height: 1820 mm
Machine weight: 3700 kg

Control Unit

Model: 8025
Brand: FAGOR

Main drive

Number of spindles: 1
Spindle speed range: 780 1/min
Spindle motor power: 7.5 kW
Spindle bore: 155 mm

Movement

X-AXIS Working Feed: 7000 mm/min
X-AXIS Rapid traverse: 10 m/min
Z-AXIS Working Feed: 7000 mm/min
Z-AXIS Rapid traverse: 10 m/min

Workpiece

Workpiece drm over bed: 620 mm
Workpiece drm over support: 580 mm
Workpiece x: 2000 mm

Turret

Number of tool slots: 8

Tail Stock

Pinol diameter: 82 mm
Pinol way: 180 mm
Pinol tool taper: 5

Tools

Slots in storage: 8

Media

Main electronic connection: 400 V / 50 Hz

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
