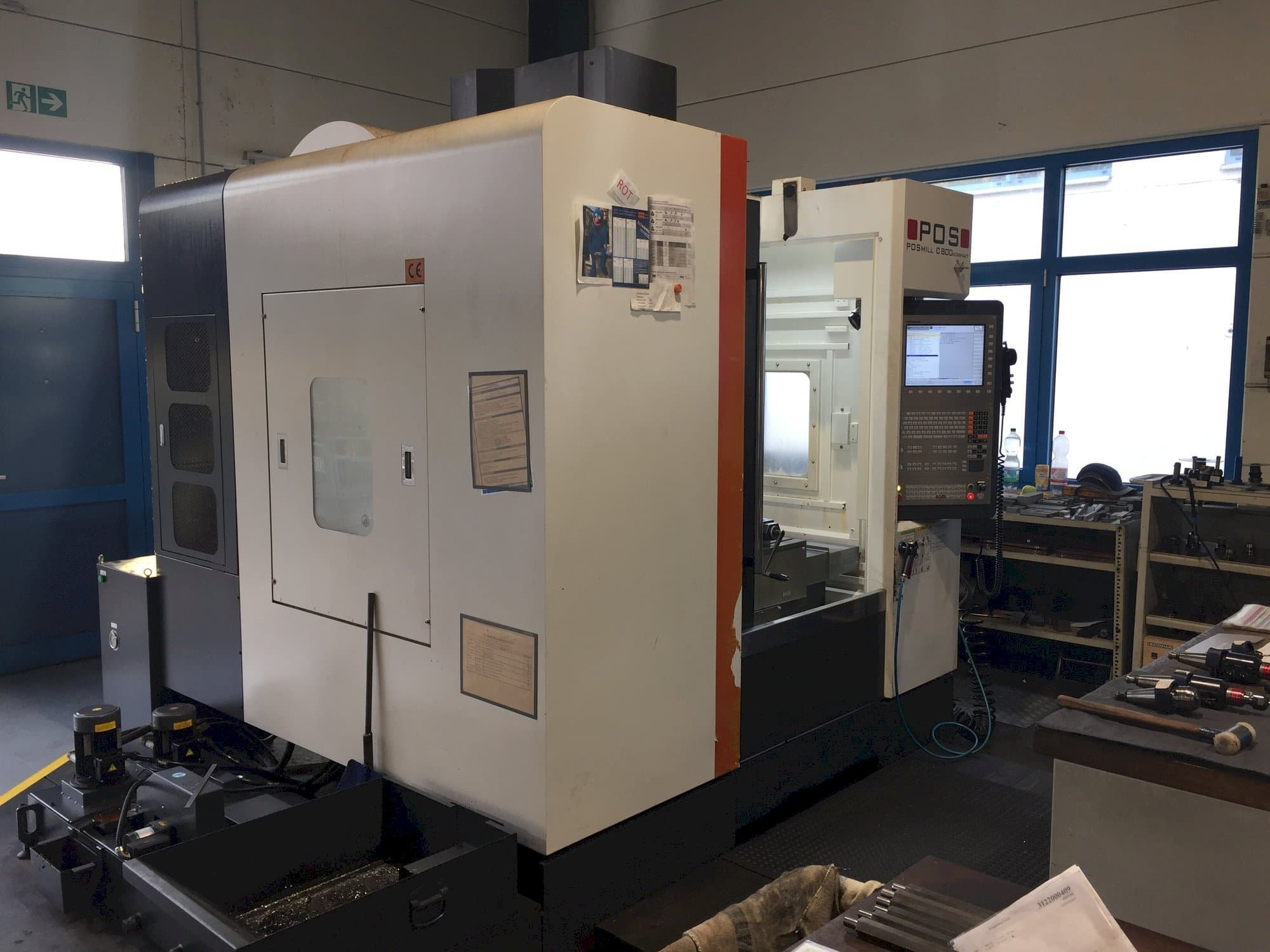

Front view of POSmill C 800 Kompakt machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

POSmill C 800 Kompakt

Photo Gallery

POSmill - C 800 KompaktDE-MIL-POS-2017-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
POSmill C 800 Kompakt Vertical Machining center

Show in original language

This POSmill C 800 Kompakt Vertical Machining Center was manufactured in the year 2017 and has 13445 production hours. It is equipped with a Heidenhain iTNC 620 control unit and has 3 axis. The machine has a spindle speed of 10000 rpm.

Overview

brand: POSmill
year: 2017
MODEL: C 800 Kompakt
production hours: 13445
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - POSmill C 800 Kompakt

General Data

Measurements width: 3960 mm
Measurements depth: 2977 mm
Measurements height: 2786 mm
Machine weight: 6800 kg

Control Unit

Model: iTNC 620
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 10000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 800 mm
Y-AXIS Movement: 520 mm
Z-AXIS Movement: 550 mm

Table

Outer length: 950 mm
Outer width: 520 mm

Tools

Max weight: 7 kg
Max tool diameter: 125 mm
Max tool length: 300 mm
Type of tool holder: SK 40 DIN 69871

Additional Information

Machine Benefits

Technical Machine Benefits

Tool changer: 24

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
