POSmill C1050

Photo Gallery

POSmill - C1050DE-MIL-POS-2012-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

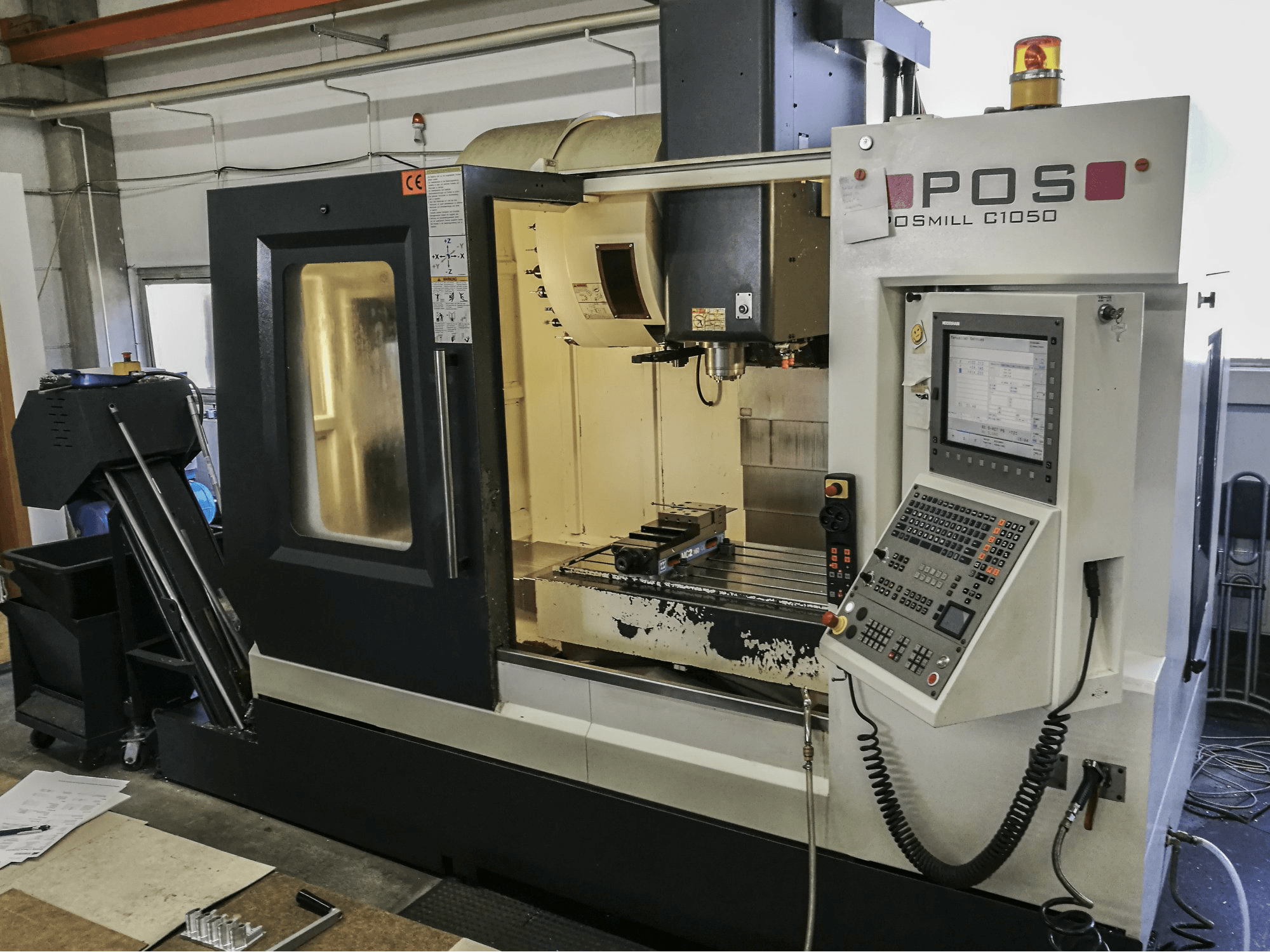

POS POSmill C1050 Vertical Machining Center

Show in original language

This POSmill C1050 Vertical Machining Center was manufactured in 2012 in Germany and has a total of 3648 production hours. Operated through a Heidenhein iTNC 530 Control unit, this machine has mainly worked with aluminum but also with plastics during the past and comes with tools and an infrared taster included. With this machine, which comes without tools or vises, synchronous cutting thread is possible.

Overview

brand: POSmill
year: 2012
MODEL: C1050
production hours: 3648
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - POSmill C1050

General Data

Measurements width: 4275 mm
Measurements depth: 2342 mm
Measurements height: 2555 mm
Machine weight: 7800 kg

Control Unit

Model: iTNC 530
CNC main language: German
CNC language customizable: Yes
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 10000 1/min

Movement

X-AXIS Movement: 1050 mm
X-AXIS Rapid traverse: 24 m/min
Y-AXIS Movement: 530 mm
Y-AXIS Rapid traverse: 24 m/min
Z-AXIS Movement: 630 mm

Table

Outer length: 1150 mm
Outer width: 560 mm

Turret

Tool taper: ISO 40

Tools

Slots in storage: 30
Max weight: 7 kg
Max tool diameter: 90 mm
Max tool length: 250 mm

Media

Main electronic connection: 380 V
Power consumption: 25 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional equipment

- Infrared Taster

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
