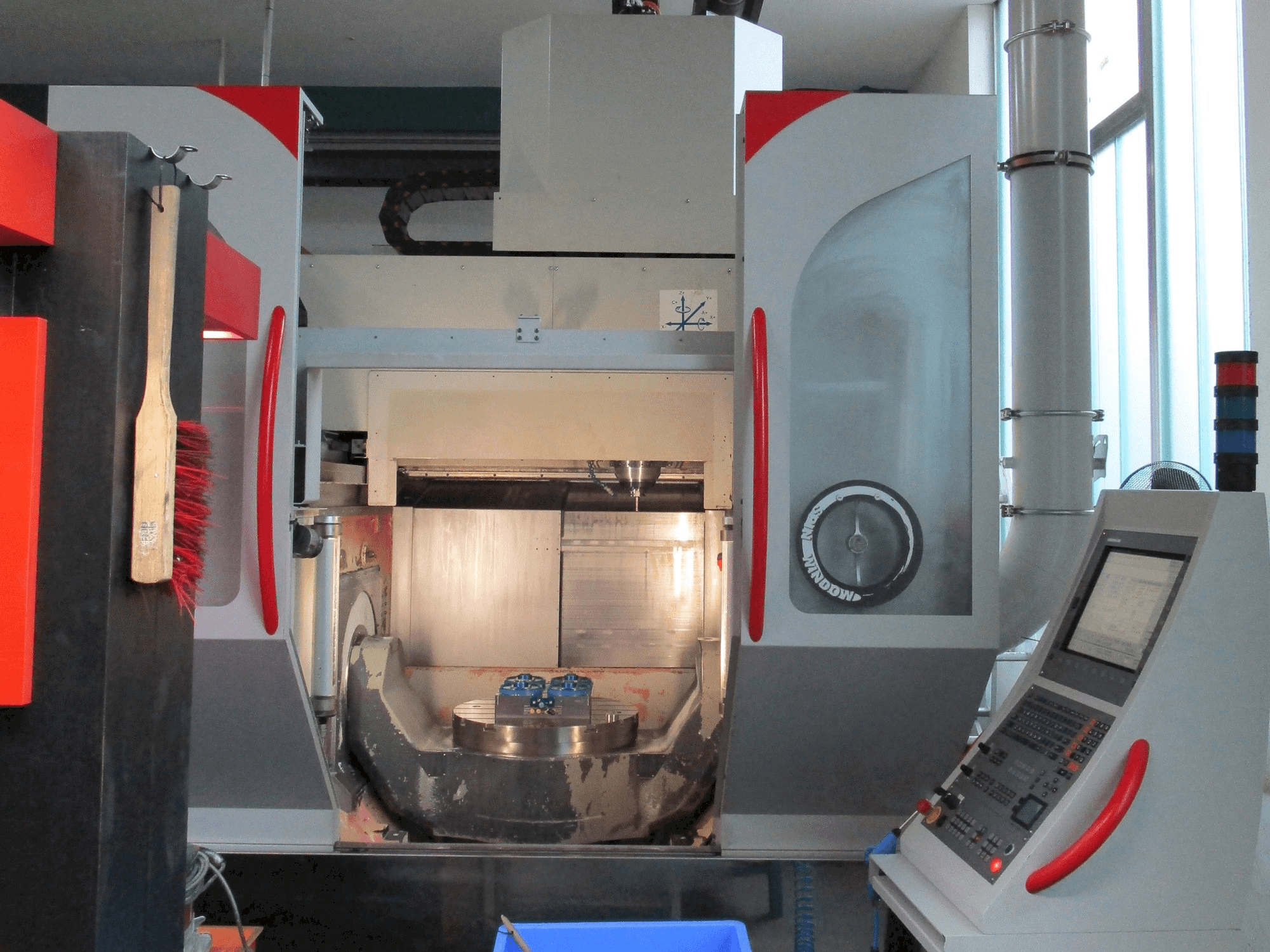

POS POSmill H 630 U Vertical Machining Center

Show in original language

This POSmill H 630 U Vertical Machining Center was manufactured in 2012 in Germany. This machine can work with a spindle speed range between 18000-24000 rpm.

Overview

brand: POSmill
year: 2012
MODEL: H 630 U
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - POSmill H 630 U

General Data

Machine weight: 20000 kg

Control Unit

Model: TNC 640
Brand: HEIDENHAIN

Main drive

Spindle speed range: 18000-24000 1/MIN

Movement

X-AXIS Movement: 670 mm
X-AXIS Rapid traverse: 60 m/min
Y-AXIS Movement: 820 mm
Y-AXIS Rapid traverse: 60m/min
Z-AXIS Movement: 600 mm
Z-AXIS Rapid traverse: 60m/min

Table

Outer length: 630 mm
Outer width: 630 mm
TSlots size: 90 mm
Number of tslots: 7
Min distance between vertical spindle and table: 120 mm
Max distance between vertical spindle and table: 720 mm
Table load: 1200 kg

Tools

Max weight: 8 kg
Max tool length: 300 mm
Type of tool holder: HSK A63

Media

Main electronic connection: 400 V

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
