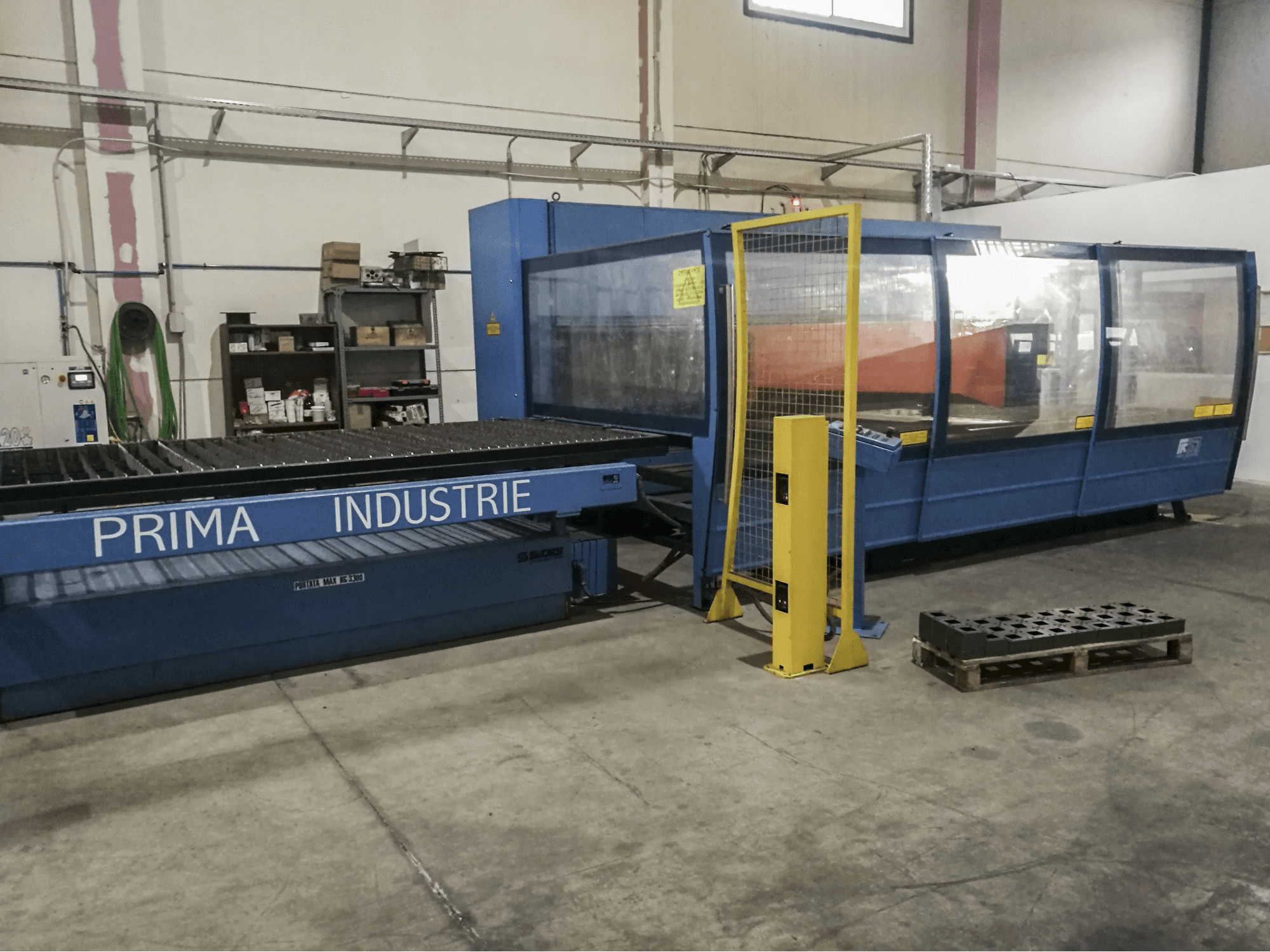

Right side view of Prima Power Platino 1530 Machine
Right side view of Prima Power Platino 1530 Machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

Prima Power - Platino 1530ES-LAS-PRI-2000-00001

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Prima Power Platino 1530 Laser Cutting Machine was manufactured in 2000 in Italy and has a working record of 60974 production hours. Operated through a Primach 9000-L Control unit, this 3 kW machine stands in really good conditions as it received regular maintenance.

Overview

  • brand: Prima Power
  • year: 2000
  • MODEL: Platino 1530
  • production hours: 60974
  • application type: Cutting
  • Location: Spain
  • machine type: CO2 Laser Cutting Machine

Technical Information - Prima Power Platino 1530

General Data

  • Measurements width: 6200 mm
  • Measurements depth: 3800 mm
  • Measurements height: 2500 mm
  • Machine weight: 13000 kg

Control Unit

  • Model: 9000-L

Main drive

  • Laserpower: 3 kW
  • Laser type: CO2
  • Laser brand: PLS 3000

Movement

  • X-AXIS Movement: 3000 mm
  • X-AXIS Rapid traverse: 50 m/min
  • Y-AXIS Movement: 1500 mm
  • Y-AXIS Rapid traverse: 50 m/min
  • Z-AXIS Movement: 150 mm
  • Z-AXIS Rapid traverse: 40 m/min

Workpiece

  • Workpiece x: 3000 mm
  • Workpiece y: 1500 mm
  • Workpiece z: 15 mm

Max Material thickness

  • Steel: 15 mm
  • Stainless steel: 8 mm

Machine specific data

  • Size of cutting head 1: 5"
  • Size of cutting head 2: 7.5"

Media

  • Main electronic connection: 400 V
  • Power consumption: 63.3 kVA

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Sergi Guardia

Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
