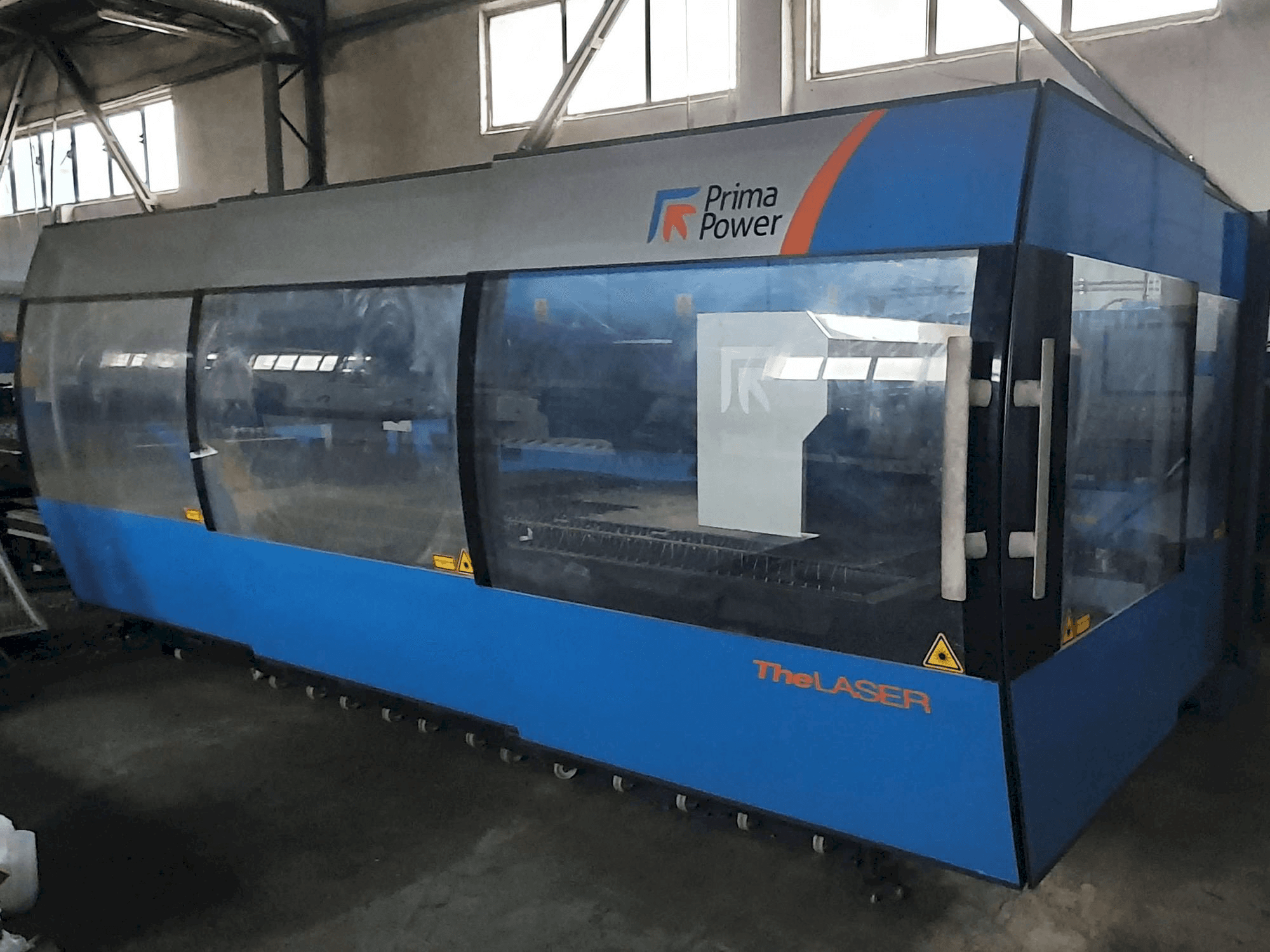

Front view of Prima Power Platino 1530 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Prima Power Platino 1530

Photo Gallery

Prima Power - Platino 1530PL-LAS-PRI-2014-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
Prima Power Platino 1530

Show in original language

This Prima Power Platino 1530 Laser Cutting Machine was manufactured in Italy in the year 2014. It has a record of approximately 6000 working hours. This machine operates through a PRIMACH 30L control unit. It works with a laser power 3 kW. This machine is in very good conditions and it includes full documentation with manuals and service reports. It has always been serviced by Prima Power service.

Overview

brand: Prima Power
year: 2014
MODEL: Platino 1530
production hours: 6000
application type: Cutting
Location: Poland
machine type: CO2 Laser Cutting Machine

Technical Information - Prima Power Platino 1530

General Data

Measurements width: 10600 mm
Measurements depth: 3550 mm
Measurements height: 2500 mm
Machine weight: 10000 kg

Control Unit

Model: 30L

Main drive

Laserpower: 3 kW
Laser type: CO2
Laser brand: Prima Electro

Movement

X-AXIS Movement: 3050 mm
Y-AXIS Movement: 1525 mm
Z-AXIS Movement: 150 mm

Max Material thickness

Steel: 20 mm
Stainless steel: 10 mm
Aluminum: 8 mm

Media

Main electronic connection: 400 V / 50 Hz

Additional equipment

- Pallet changer
- Exhaust system
- Chiller
- Software

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Laser source: cx3000
- - Max material weight: 3300 kg
- - Max material size: 3000 x 1500 mm
Qualitative Machine Benefits:
- - Machine in very good conditions
- - Full documentation with manuals and service reports
- - Ready for tests.
- - Always serviced by prima power service

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
