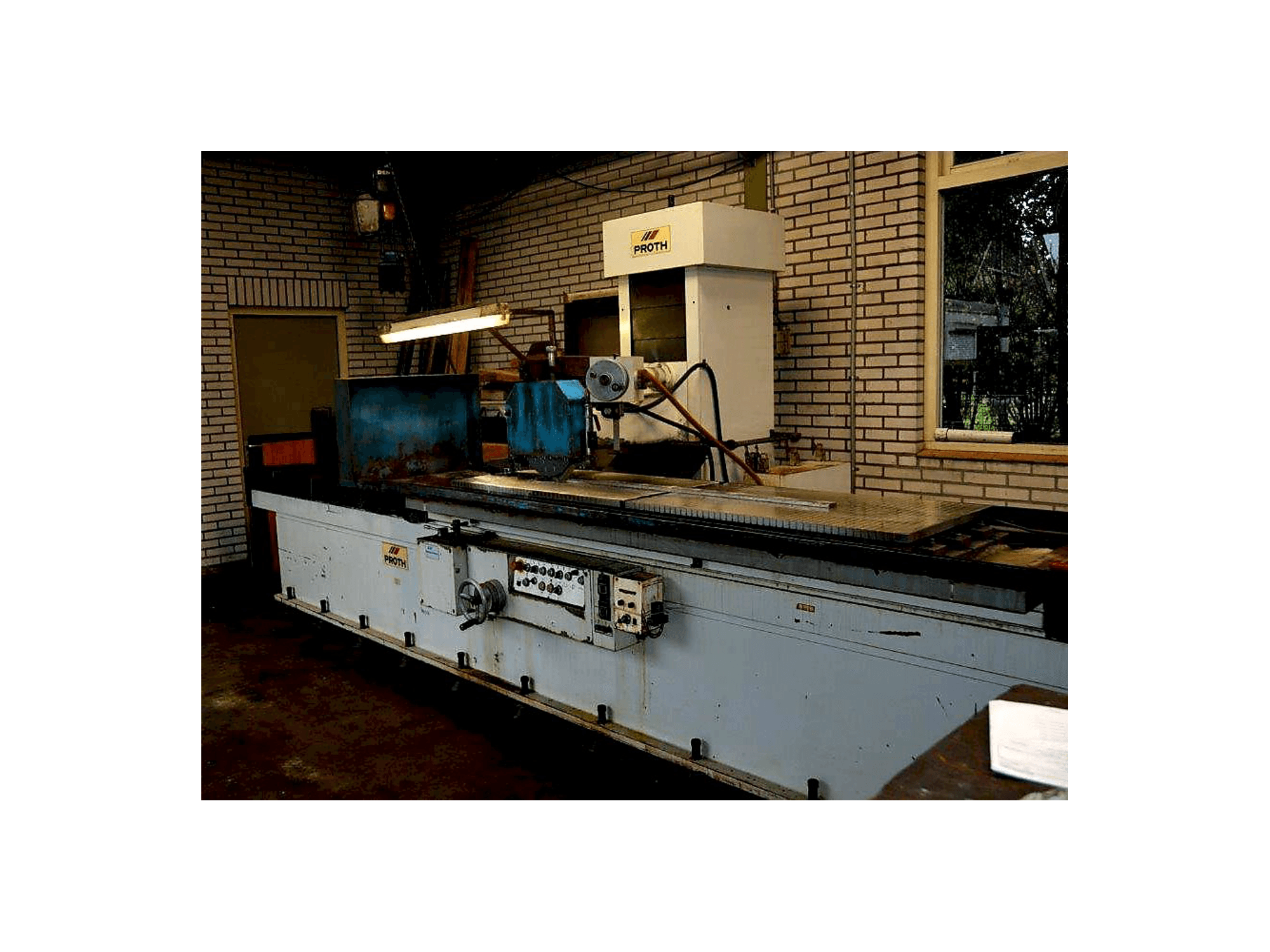

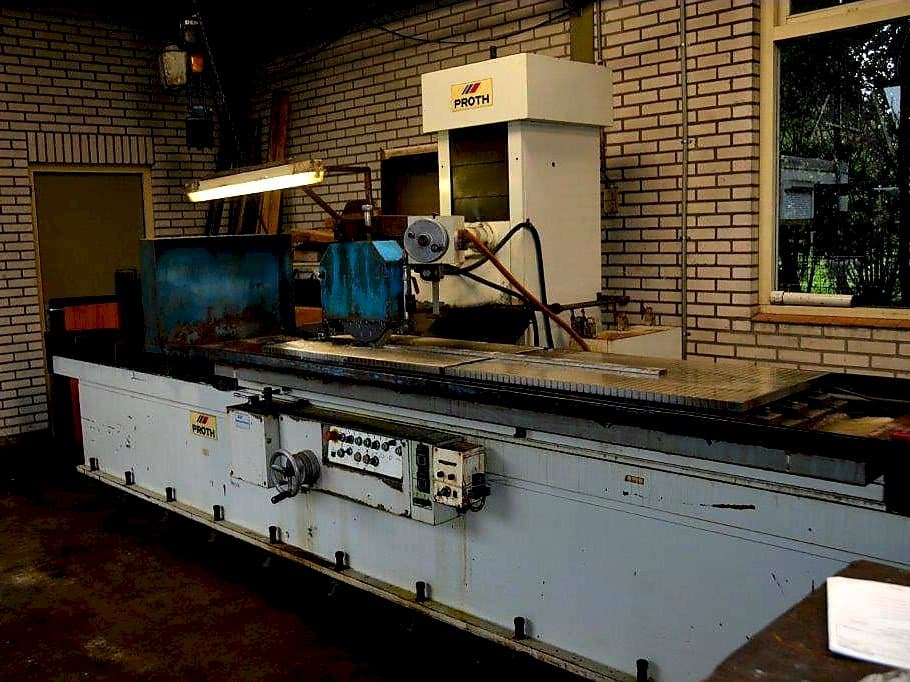

Proth PSGC-60220AHR Grinding Machine

Show in original language

This Proth PSGC-60220AHR Grinding Machine from Taiwan was manufactured in 1991 and has a been operative for approximately 15000 production hours since then. This complete working machine has mainly worked for the sheet metal industry in the past, standing out for its big size surface and a spindle power of 7.5 kW

Overview

brand: Proth
year: 1991
MODEL: PSGC-60220AHR
production hours: 15000
application type: Grinding
Location: Netherlands
machine type: Surface Grinding Machine
availability: Sold

Technical Information - Proth PSGC-60220AHR

General Data

Measurements width: 6200 mm
Measurements depth: 2260 mm
Measurements height: 2750 mm
Machine weight: 10000 kg

Main drive

Spindle speed range: 1450 rpm 1/MIN

Movement

X-AXIS Movement: 2400 mm
Y-AXIS Movement: 665 mm
Z-AXIS Movement: 450 mm

Workpiece

Workpiece x: 2230 mm
Workpiece y: 600 mm
Workpiece z: 430 mm

Table

Outer length: 3830 mm
Outer width: 810 mm
Number of tslots: 3
Distance between: 175 mm

Tools

Max tool diameter: 400 mm
Max tool length: 50 mm
Type of tool holder: wheel holder 3 pcs

Media

Main electronic connection: 400 V

Additional equipment

- band filter
- hydraulic unit
- automatic dressing device
- electro magnetic tables

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
