Quaser MV214P/12B

Photo Gallery

Quaser - MV214P/12BCZ-MIL-QUA-2018-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Quaser MV214P/12B

Show in original language

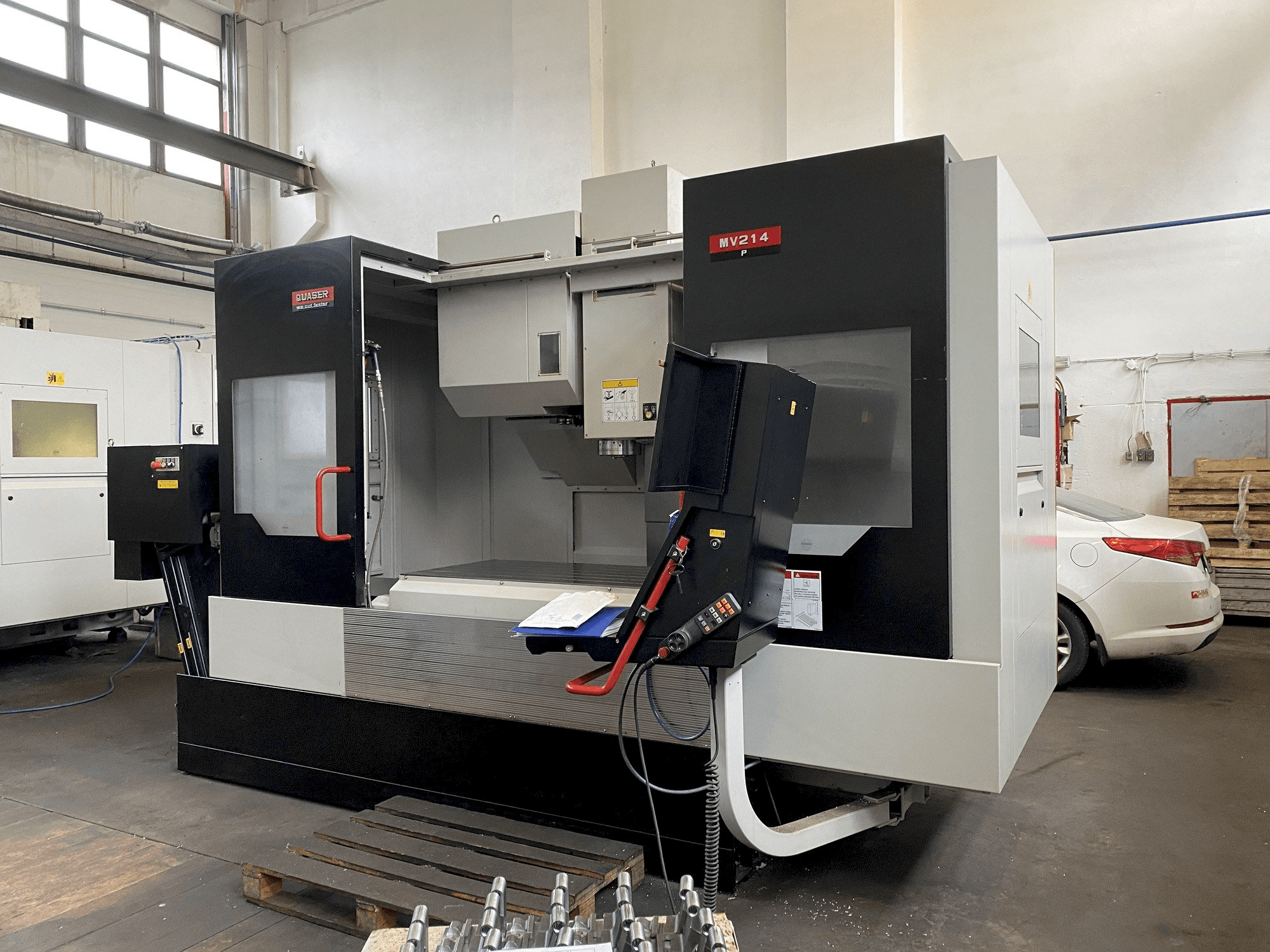

This Quaser MV214P/12B Vertical Machining Center from 2018 was manufactured in Taiwan. It has a record of 5773 hours, of which 2627 are spindle hours. This 3 axis machine is operated through a HEIDENHAIN iTNC 640 control unit. It works with a spindle speed up to 12000 rpm. This machine has a coolant system and a wash gun. It is in excellent condition.

Overview

brand: Quaser
year: 2018
MODEL: MV214P/12B
production hours: 5773
application type: Milling
Location: Czech Republic
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - Quaser MV214P/12B

General Data

Measurements width: 4520 mm
Measurements depth: 3710 mm
Measurements height: 3120 mm
Machine weight: 10100 kg

Control Unit

Model: iTNC 640
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 12000 1/MIN
Spindle motor power: 36.7 kW
Number of axis: 3

Movement

X-AXIS Movement: 1524 MM
Y-AXIS Movement: 700 MM
Z-AXIS Movement: 610 MM

Workpiece

Workpiece weight: 2000 KG

Table

Outer length: 1700 MM
Outer width: 700 MM

Tools

Slots in storage: 48
Max weight: 7 KG
Max tool diameter: 76.2/125 MM
Max tool length: 280 MM
Type of tool holder: BT 40

Media

Main electronic connection: 400 V

Additional Information

Additional equipment

WASH GUN

Machine Benefits

Qualitative Machine Benefits

Excellent condition
2020 - new spindle (replaced under warranty by the manufacturer) and has about 100 hours

Technical Machine Benefits

Rapid feedrate 36 m/min
Cooling through spindel 20 bar
Coolant system
Cutter air blast
4th axis preparation

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
