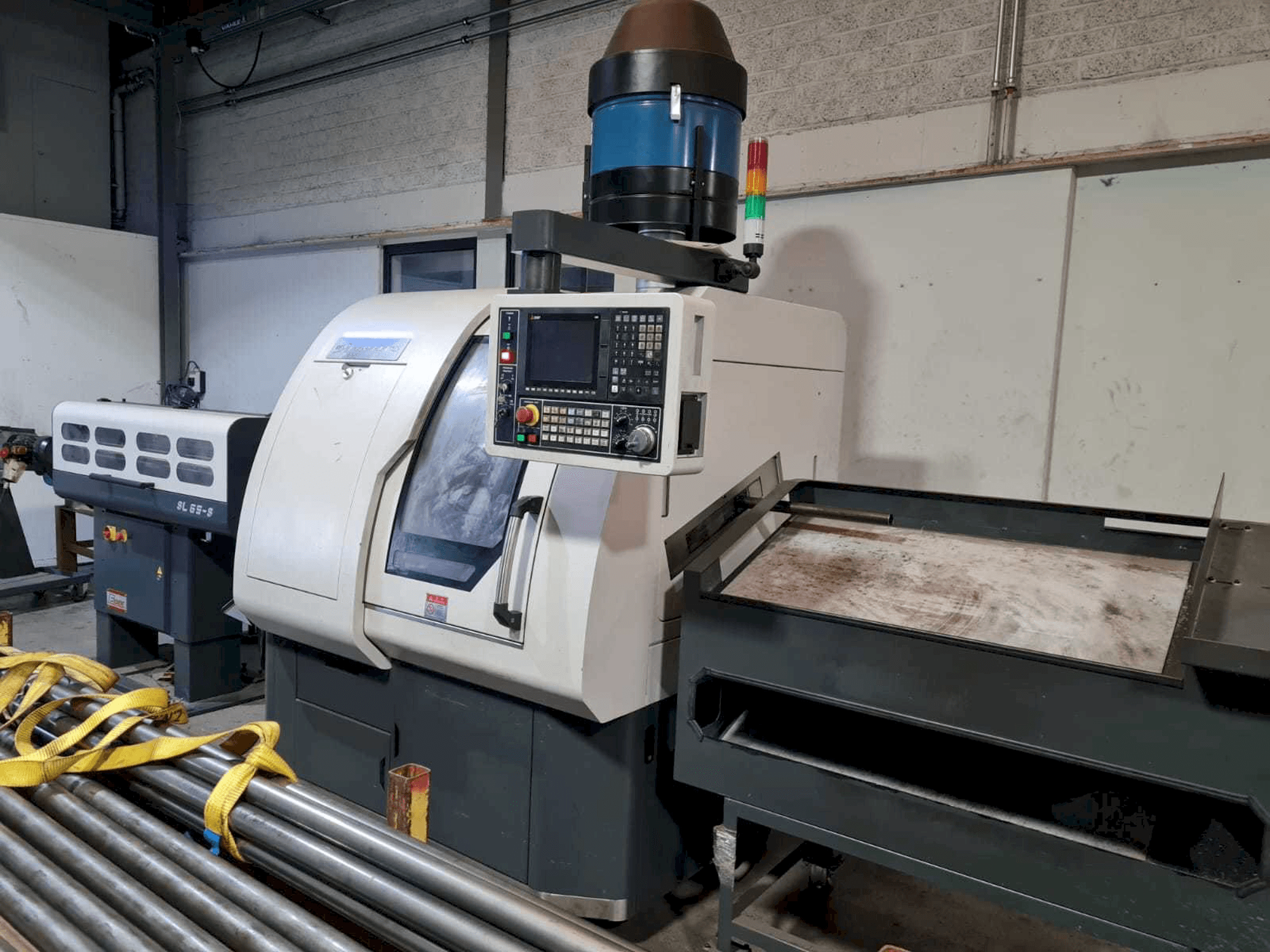

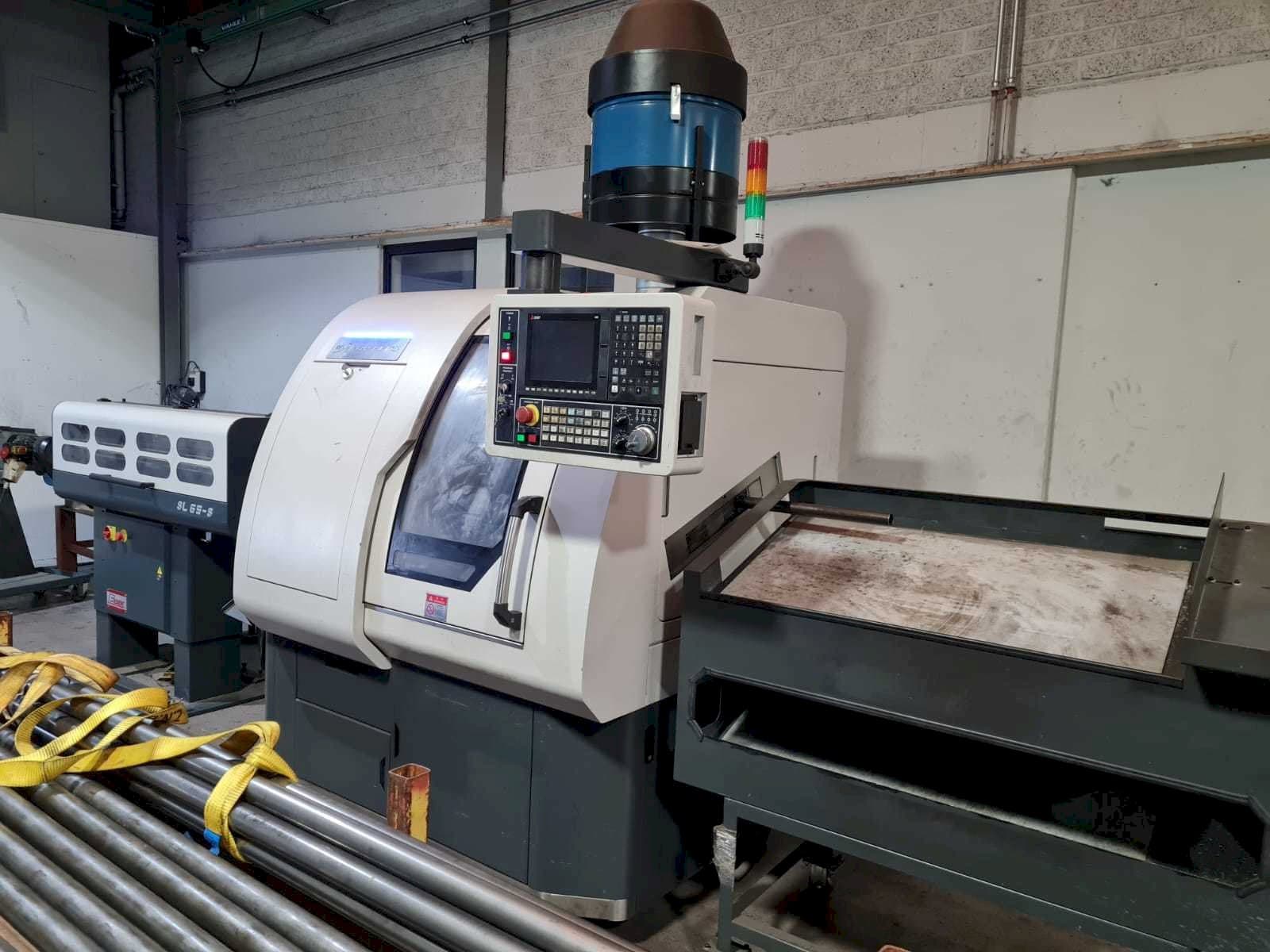

➤ Used Ray Feng RC32 Lathe machine 2018

Show in original language

This Ray Feng RC32 Lathe machine was manufactured in the year 2018. This can work with a spindle speed range up to 6000 rpm and a spindle speed of 5 kW. Also counts with a max. turning diameter of 33 mm and a max. turning length of 100 mm. Includes accesories.

Overview

brand: Ray Feng
year: 2018
MODEL: RC32
application type: Turning
Location: Netherlands
machine type: Swiss Type Turning Machine
availability: Sold

Technical Information - Ray Feng RC32

General Data

Measurements width: 2070 mm
Measurements depth: 1565 mm
Measurements height: 1835 mm
Machine weight: 1800 kg

Main drive

Spindle speed range: 6000 1/MIN
Spindle motor power: 5 Kw

Additional equipment

- Collet holder (1 collet) Foot switch for collet Machine lighting
- 4 drill holders
- 2 rotary holders
- 1 stop bar
- Lubricate installation
- User manual
- Fedex LNS bar feeder type SL 65S (servo load)
- Processed Pipe Collection Device (Right of Machine)
- CE Compliance Transformer 10Kva
- 6 position turret

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Workpiece collection device and mist cooling
- - Max. Turning diameter: 33 mm
- - Max. Turning length: 100 mm
- - Max. Across the transverse: 80 mm
- - X-axis displacement: 340 mm
- - Z-axis displacement: 150 mm
- - Rapid traverse displacement: 16 m/min
- - Max. Spindle passage: 32 mm
- - X/z engine: 0. 75 kw
- - Smallest date to be entered: 0. 001 mm
Qualitative Machine Benefits:
- - Cooling pump: 0. 56 hp
- - Outside turning tool size: 16x16mm
- - Inside turning tool size: c20-er16

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
