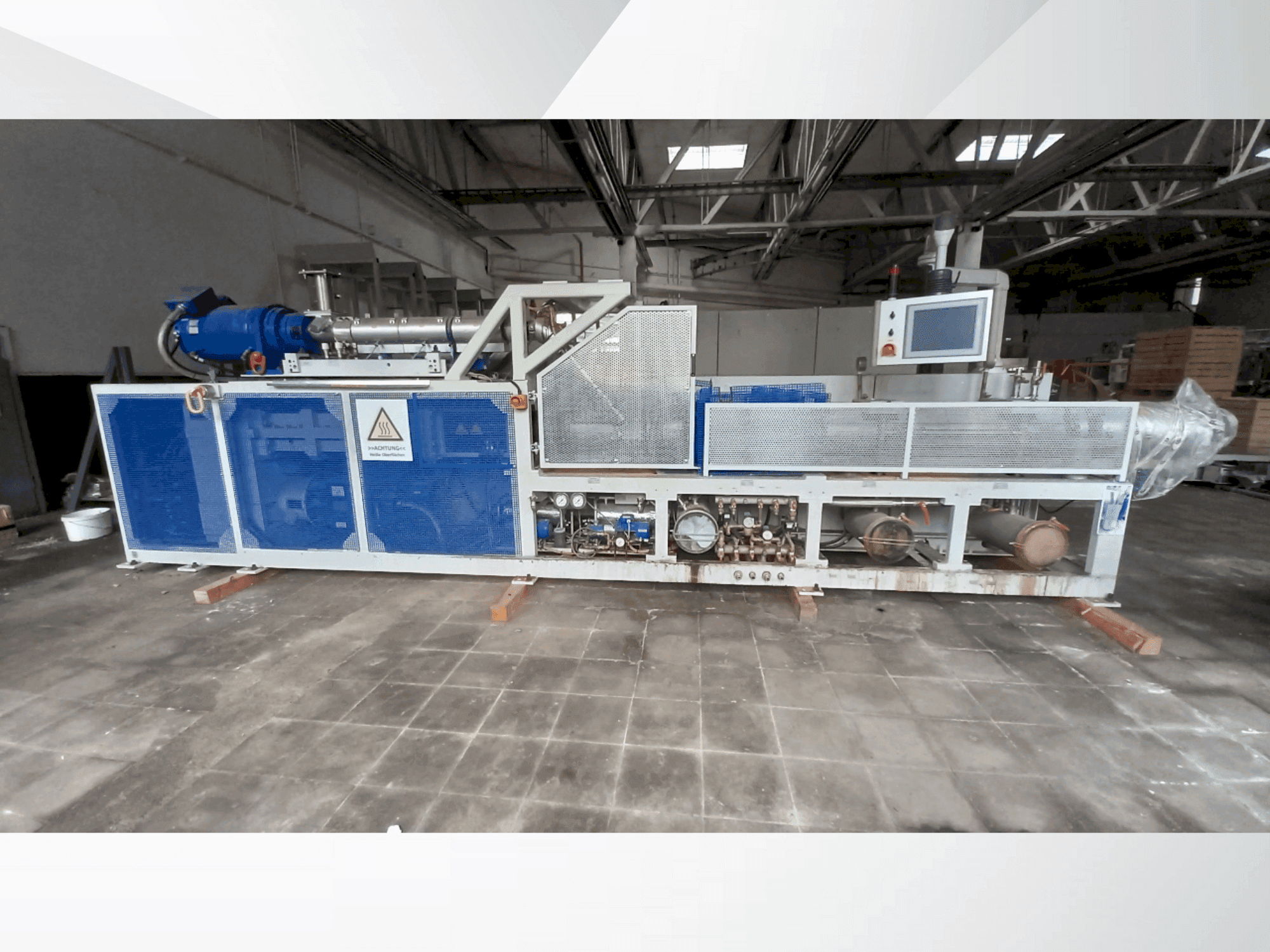

REIFENHÄUSER - BI Trudes 115DE-EXT-REI-2013-00001

Additional equipment

• - 2x electrical melt pressure transducer 1/2 “UNF diaphragm pressure transducer
• - 2x ground temperature sensor with sword probe

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Stationary for an extrusion height of 1000 mm
  • - Complete control cabinet with all necessary control and regulation equipment attached
  • - Microprocessor-controlled multi-channel controller for two and three-point zones
  • - Adaptive and self-optimizing control behavior
  • - Fault messages with collective alarm and storage
  • - Siemens mp377 touch panel for setpoint specification and actual value display
  • - Recipe management of up to 20 recipes
  • - Drive with one ac motor, vector-controlled
  • - Digital drive controller for ac motors, with full digital technology
  • - Motor temperature monitoring with pre-warning and shutdown
• Qualitative Machine Benefits:
  • - 13x anchoring for one fixing point installation tool
  • - Pair of worms, compact version, made of highly tempered steel and bimetal design
  • - Counter-rotating twin-screw extruder, gearbox with integrated back pressure bearing for 350 bar
  • - Recirculating oil lubrication with oil pressure and oil temperature monitoring
  • - Barrel Ø 115-30 d with atmospheric and vacuum degassing openings
  • - Heating and air cooling divided into 5 zones, total output of 56400 w
  • - Vacuum unit for bt 115 including 2x vacuum unit and vacuum suction unit
  • - Complete screw temperature control including cassette installation
  • - Mains supply with main switch and load disconnector for heating, drives, and auxiliary voltages

Extra information

• - Machine still under power
