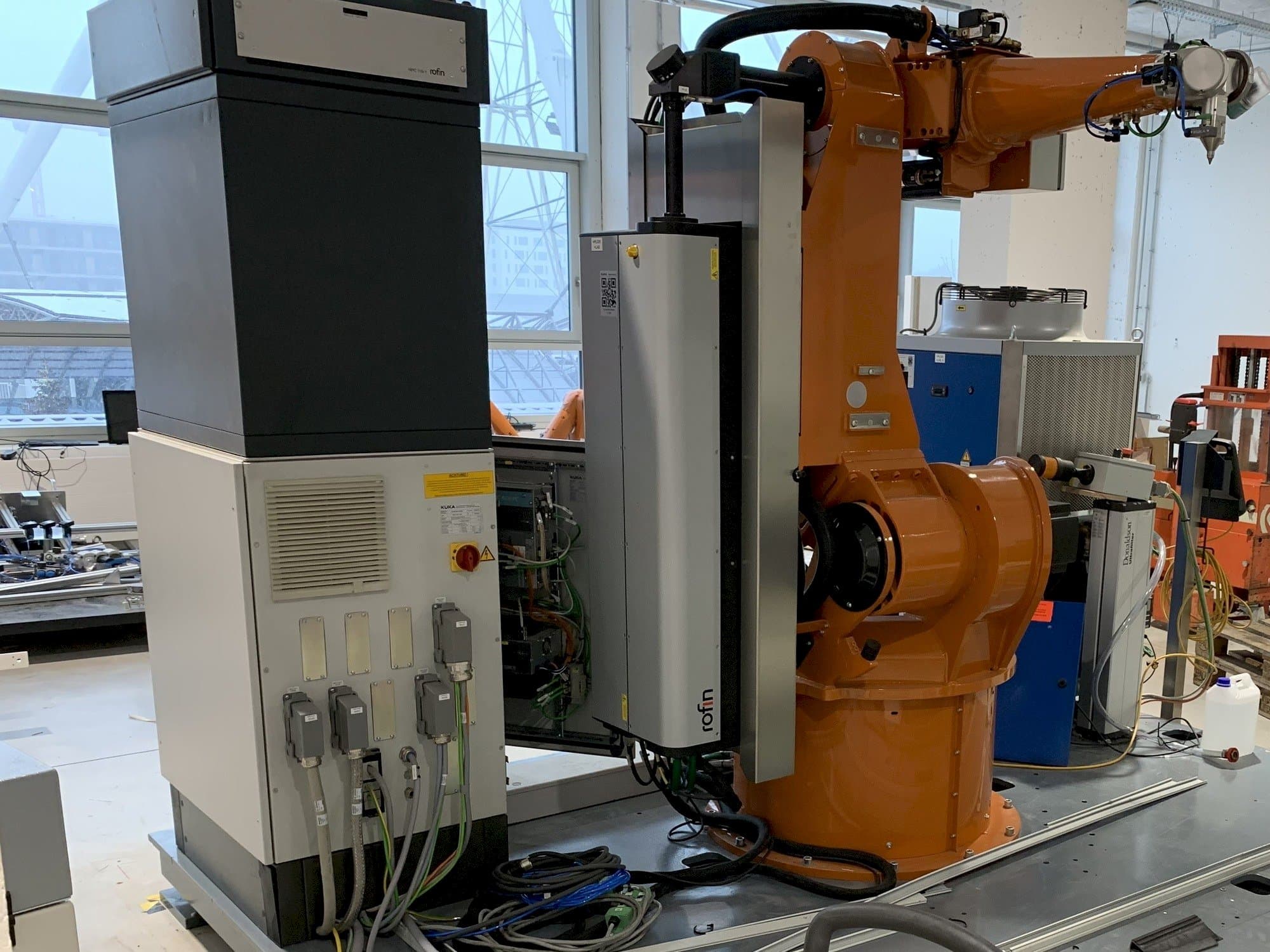

Front view of Reis Robotics Laserroboter RV6L machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Reis Robotics Laserroboter RV6L

Photo Gallery

Reis Robotics - Laserroboter RV6LDE-ROB-REI-2017-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Automation Equipment
Reis Robotics Laserroboter RV6L

Show in original language

This Reis Robotics Laserroboter RV6L robot was built in the year 2017 in Germany. This machine has a weight processing optics of 6 kg and a repeatability +- 0.05 mm.

Overview

brand: Reis Robotics
year: 2017
MODEL: Laserroboter RV6L
application type: Robotics
Location: Germany
machine type: Robot Arm

Technical Information - Reis Robotics Laserroboter RV6L

General Data

Machine weight: 960 kg

Media

Power consumption: 7.1 kva

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Weight processing optics / process accesories: 6k
- - Additional load a3 incl. Process-specific installation: 10 kg
- - Max. Weight laser: 400 kg
- - Axis data: axis a1 140 °/s; axis a2 105 °/s; axis a3 200 °/s; axis a4 700 °/s; axis a5 750 °/s
- - Repeatability: +- 0. 05 mm
- - Mains fusing: max. 3 x 25a

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
