Reishauer - RZ 400DE-GRI-REI-2005-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used Reishauer RZ 400 For Sale | gindumac.com

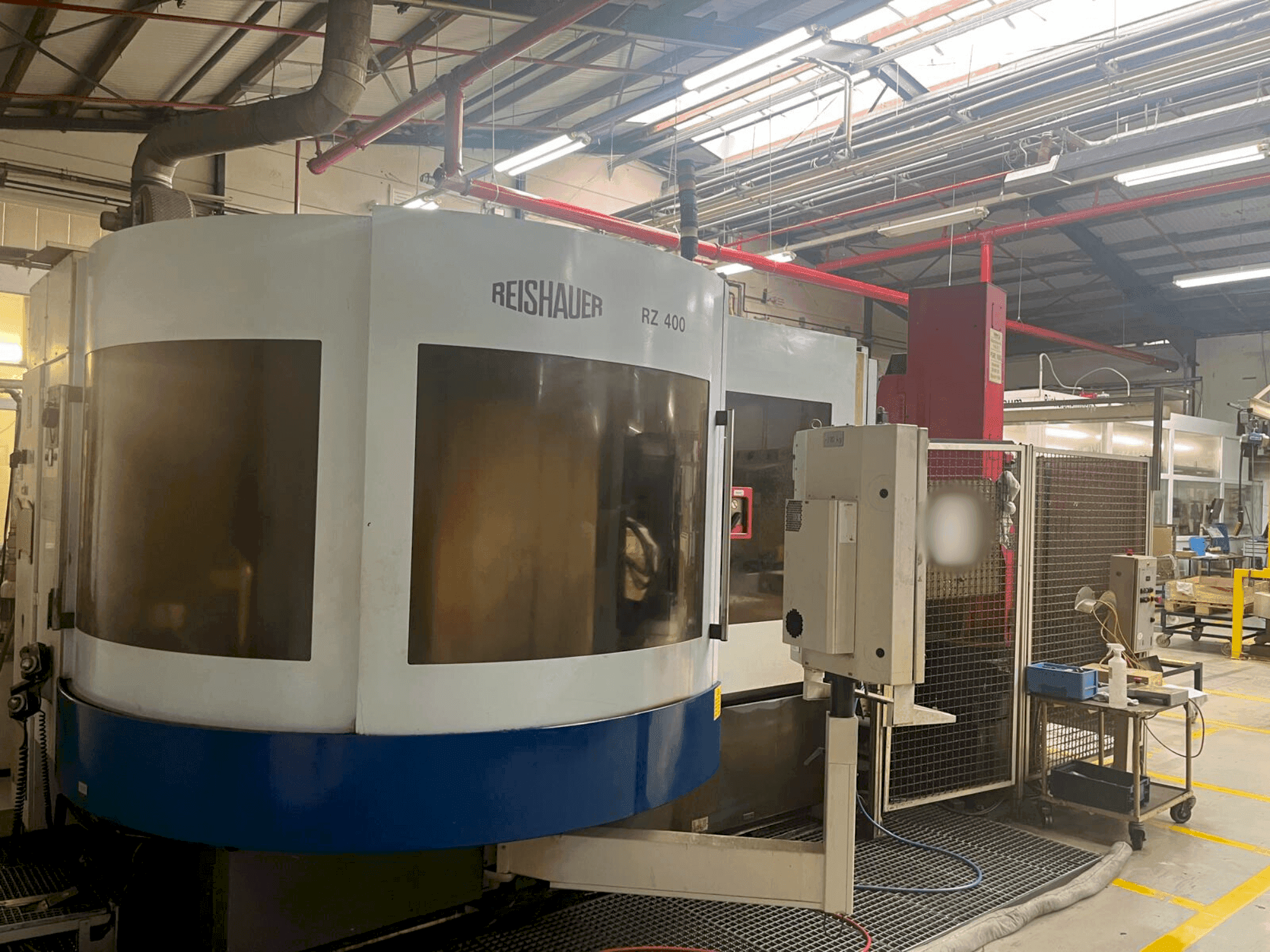

This Reishauer RZ 400 grinding machine was manufactured in 2005. It features a Siemens 840D control system, can handle wheel diameters up to 400 mm, and wheel widths up to 300 mm. With a maximum workpiece weight of 300 kg and spindle speeds up to 4,700 1/min, it's ideal for varied grinding tasks. Dimensions are 4.9 m x 3.7 m x 3.2 m, weighing 11.5 tons. For more information about this grinding machine, please reach out to us.
Overview
- brand: Reishauer
- year: 2005
- MODEL: RZ 400
- production hours: 25639
- application type: Grinding
- Location: Germany
- machine type: Cylindrical Grinding Machine
- control unit brand: SIEMENS
Technical Information - Reishauer RZ 400
Control Unit
- Control Brand: SIEMENS
- Control Model: 840D
Technical Specification
- Spindle Power: 10 kW
- Spindle Speed: 4700 RPM
Additional Information
Additional equipment
- Counter spindle for tailstock (W-axis)
- Workpiece spindle drive (C-axis) / Motorised grinding spindle (B1) / Spindle speed infinitely variable 1100-4700 min-1
- Cooling nozzle (P1 axis)
- Reinforced flushing device for flushing away the grinding sludge
- Grinding sludge feed (X-axis)
- Shift axis (Y1) / Feed (Z1f)
- Swivelling axis (A1) for automatic adjustment of the grinding worm / Swivelling axis (C1) for swivelling the tool carrier
- Hydraulic equipment: free-standing unit with 3-point support control / Tank capacity approx. 30 litres
- Centre 80’ MK3
- Nozzle 5’; width 40mm / Nozzle 5’; width 4e 70m
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
