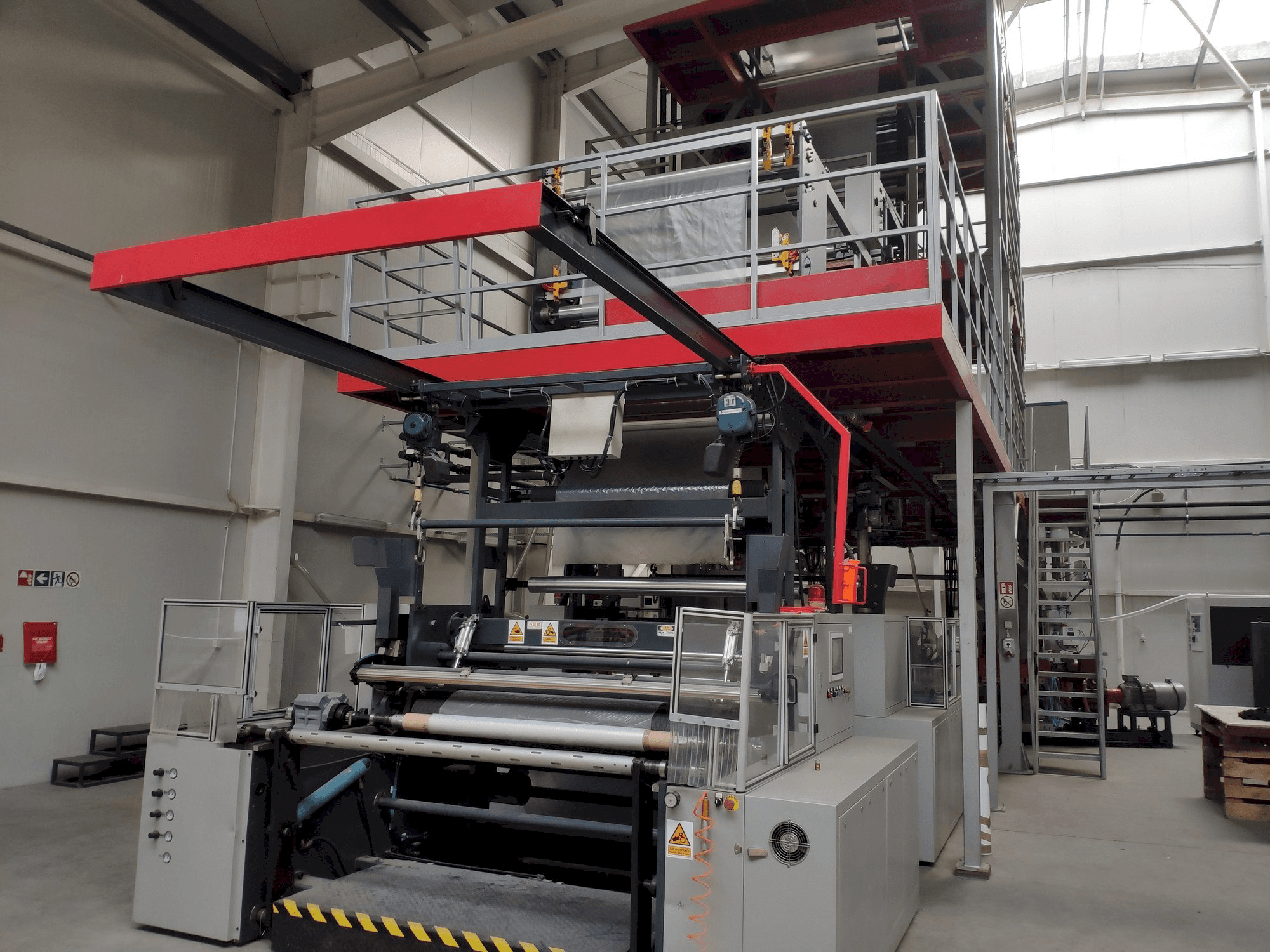

This ROLBATCH 1600 Film Extrusion Machine was made in Germany in the year 2015. It is equipped with a B&R control unit. It incorporates 5 layers and can operate with a film extraction and rotation system 360°. It includes several additional equipments.
Overview
- brand: ROLBATCH
- year: 1994
- MODEL: 1600
- application type: Extrusion
- Location: Poland
- machine type: Film Extruder
Technical Information - ROLBATCH 1600
Dimensions
- Machine Depth: 8300 mm
- Machine Height: 10500 mm
- Machine Weight: 38000 kg
Additional Information
Additional equipment
- Single-screw extruders 80 mm, L / D = 30: 1, 75 kW with inverter, - layers A and E, Maximum extruder output for LDPE processing: 170 kg / h - 2 pieces
- Single-screw extruders 50 mm, L / D = 30: 1, 22 kW with inverter, - layers B and D Maximum extruder output for LDPE processing: 40 kg / hour - 2 pieces
- Single-screw extruder 60 mm, L / D = 30: 1, 37 kW z - layer C. Maximum extruder output for LDPE processing: 90 kg / hour - 1 piece
- Manual screen changers for extruders A, B, C, D, E - 5 sets
- Head for 5-layer co-extrusion film - 1 piece
- The cooling system of the interior of the balloon "IBC" - 1 piece
- Automatic foil thickness measurement and control system: automatic air ring, automatic film thickness measuring system (PlastControl), automatic film thickness control system 1 set
- Calibration basket - 1 set
- Closing frame - 1 set
- Film extraction and rotation system 360 ° - 1 set
- Second water-cooled extraction - 1 set
- Tower - 1 set
- III-1700 automatic double winder 3rd generation - 1 set
- Central computer controlling the work of the line - 1 set
- Gravimetric feed system for the Irish brand TSM: 3 extruders x 4 components, 2 extruders for 1 component – 1 set
- Air compressor - cooperating with 2 lines - 1 piece
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
