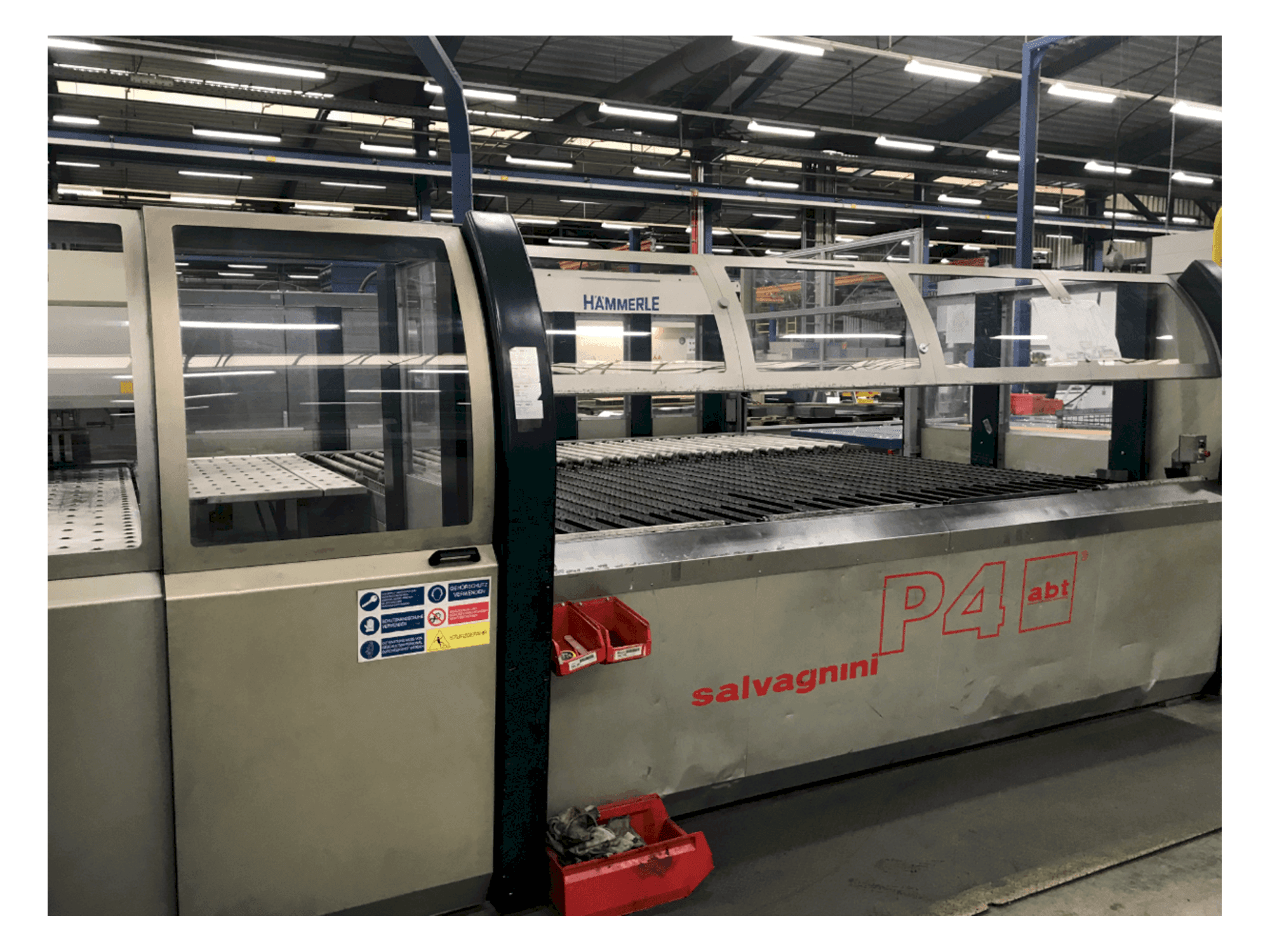

Salvagnini S4S-40 / P4-3216 Punching and Bending Machine

Show in original language

This Salvagnini S4S-40 / P4-3216 Punching and Bending Machine was made in 2004. The punching machine has been working for 59643 hours, and the bending machine for 54423 hours. This machine can work with a bending length 3000 mm, and a maximum sheet thickness 5 mm. This machine is one of Salvagnini's most popular solutions, it punches, shears and bends sheet metal totally automatically. Selected Spare part, and various tools are included.

Overview

brand: Salvagnini
year: 2004
MODEL: S4S-40 / P4-3216
production hours: 59643
application type: Punching
Location: Germany
machine type: Punch-Laser Combination
availability: Sold

Technical Information - Salvagnini S4S-40 / P4-3216

General Data

Measurements width: 35400 MM
Measurements depth: 9800 MM

Main drive

Bending length: 3000 mm

Additional equipment

- Selected Spare parts
- Various Tools

Additional Information

Machine Benefits

Technical Machine Benefits:
- - S4s-40: working area max. : 4064 x 1524 mm
- - Board size min. : 370 x 300 mm
- - Diagonal max. : 4340 mm
- - Sheet thickness max. : 5 mm
- - P4-3216: blank size max. : 4064 x 1524 mm - blank size min. : 370 x 300 mm
- - Diagonal max. : 3500 mm
- - Sheet thickness max. : 0,5 - 2,5 mm
- - Dimensional tolerance depending on sheet thickness: +/- 0. 1 mm
- - Bending height max. : 165 mm - bending height min. 90°: 5x sheet thickness - bending height min. 180°: 7x sheet thickness
- - Angle accuracy: +/- 1
Qualitative Machine Benefits:
- - Dimensional tolerance depending on sheet thickness: +/- 0. 1 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
