SCHMID - SE 368DE-MIL-SCH-2019-00002
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used SCHMID SE 368 For Sale | gindumac.com

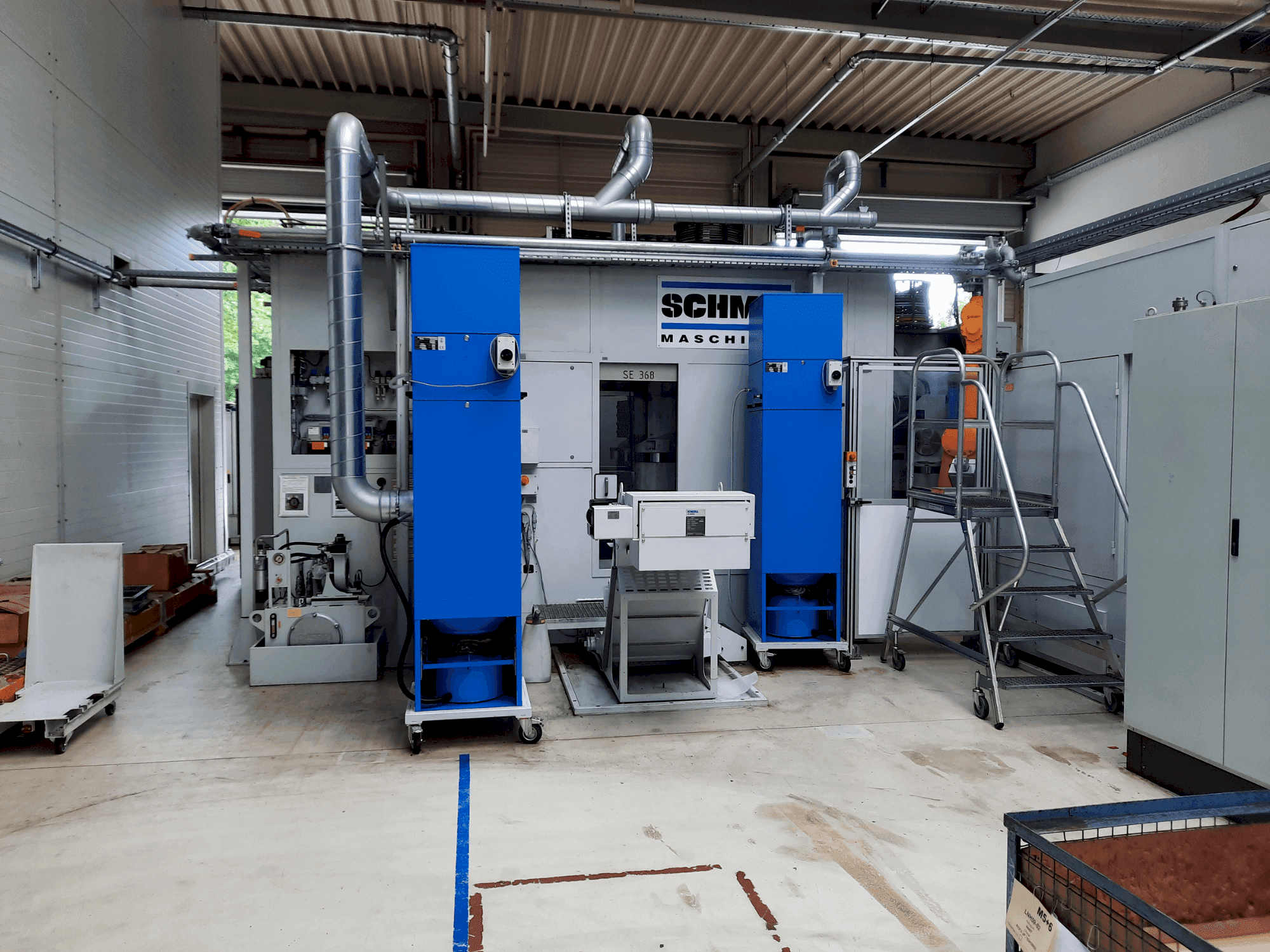

This 5-axis SCHMID SE 368 horizontal machining centre was manufactured in 2019. It features a Siemens Sinumerik 840 D SL control, rapid traverse rates of 75/40/90 m/min in X/Y/Z, and a shuttle table. Equipped with dual NC rotary swivelling units, a 30-fold tool changer, and HSK-A63 tool holder. Max speed is 10,000 rpm. Includes a chip conveyor and recooling system. A great opportunity to buy this SCHMID SE 368 horizontal machining centre. Contact us for further details regarding this horizontal machining centre.
Overview
- brand: SCHMID
- year: 2019
- MODEL: SE 368
- application type: Milling
- Location: Germany
- machine type: Horizontal Machining Centre
- control unit brand: SIEMENS
Technical Information - SCHMID SE 368
General Data
- Machine weight: 21000 kg
Control Unit
- Model: Sinumerik 840 D SL
- Brand: SIEMENS
Main drive
- Number of spindles: 2
- Spindle speed range: 50 - 24000 rpm 1/MIN
- Tool taper: HSK-A63
Movement
- X-AXIS Movement: 400 mm
- X-AXIS Rapid traverse: 75 m/min
- Y-AXIS Movement: 450 mm
- Y-AXIS Rapid traverse: 40 m/min
- Z-AXIS Movement: 550 mm
- Z-AXIS Rapid traverse: 90 m/min
Tools
- Max tool diameter: 75 mm
Additional equipment
- - Double spindle
- - Shuttle table
- - 2x 2 NC rotary swivelling units
- - Switch cabinet system
- - Chip conveyor Knoll 600K-1 2019
- - Hydraulic unit
- - Filter system
- - Recooling system Lahntechnik KOF1803-100 2020
- - Number of tool magazine positions: 2x 30
- - Rotary table (NC / hydraulic clamping) : n x 360o, vertical axis,
Additional Information
- Technical Machine Benefits:
- - Ibag three-phase main drive : s1-100% 40 kw / s6-40% 52 kw
- - Key performance data working spindle kw s1 : 3 12 29 40 40
- - Spindle speeds approx. 1/min : 1,000 5,000 10,000 20,000 24,000
- - Torque approx. Nm : 27 27 27 19 17
- - Tool diameter with free neighbouring positions : 125 mm
- - Swivelling table (nc / hydraulic indexing) : vertical axis, 0° - 180°, max. Rotation angle in connection with 5th axis : +/- 150°
- - Rotary table diameter : 400 mm, rotary table (horizontal axes u1-u2/ v1-v2), rotary table (nc / hydraulic clamping) : n x 360o, vertical axis, rotary table diameter : 330 mm
- - Pallet clamping : 2 zero point clamping modules/ table
- - Position measuring systems : absolute position measuring systems
- - Position tolerance x - y - z : 0. 008 mm (vdi/dgq 3441)
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
