SCHRODER-FASTI FP 60-40/4

Show in original language

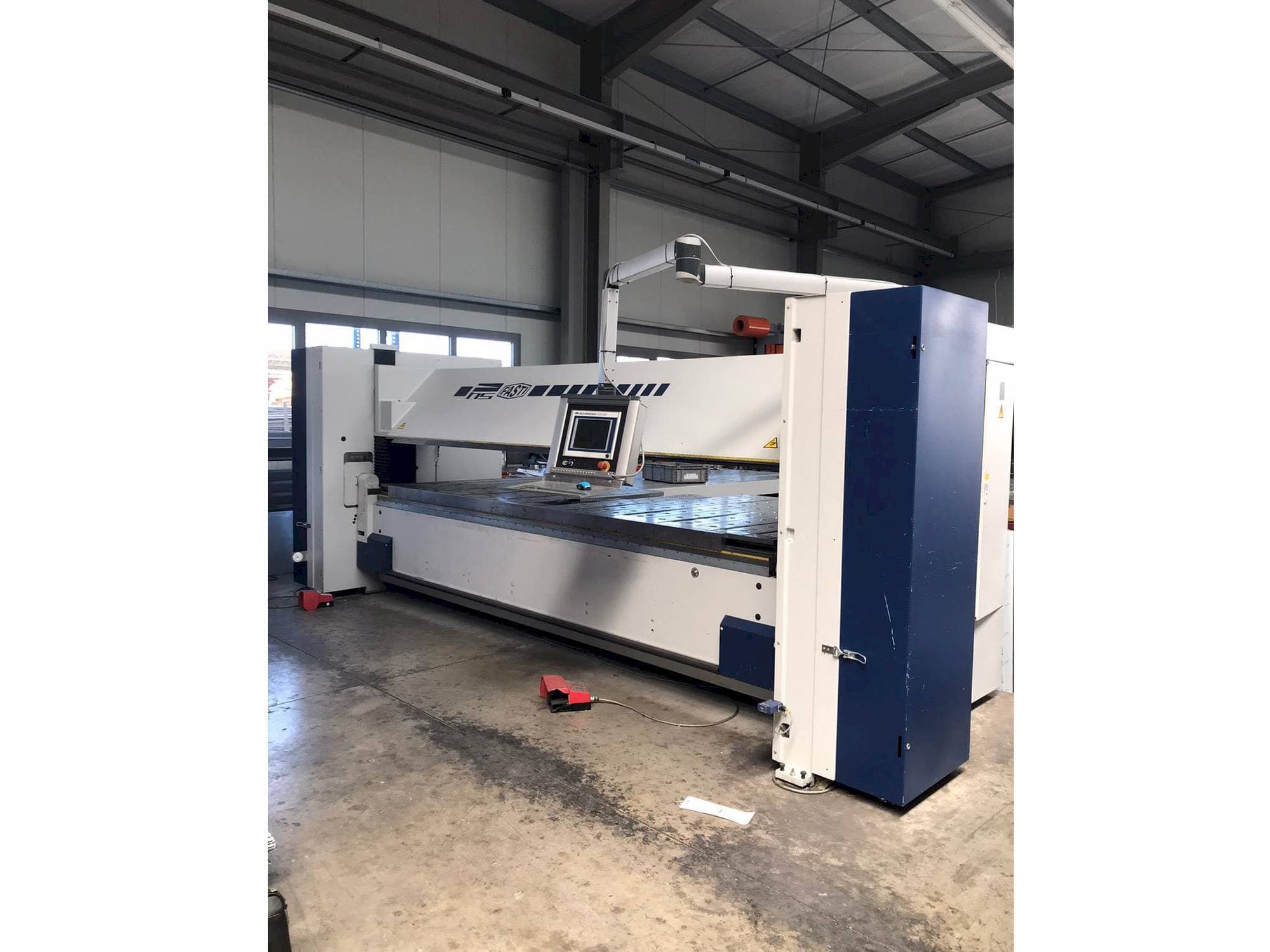

This SCHRODER-FASTI FP 60-40/4 Swivel Bending Machine was manufactured in Germany in the year 2011. This is operated through a SCHRODER POS 2000 control unit. It works with a cutting length 4005 mm and a cutting thickness for steel 400 N/mm2.

Overview

brand: SCHRODER-FASTI
year: 2011
MODEL: FP 60-40/4
application type: Bending
Location: Germany
machine type: Die Bending Machine
availability: Sold

Technical Information - SCHRODER-FASTI FP 60-40/4

General Data

Machine weight: 13500 KG

Main drive

Bending length: 4005 mm

Max Material thickness

Steel: 400 N/mm2

Media

Main electronic connection: 3 X 400 V 50 HZ

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 4mm length 4000 mm
- - 6 mm length 3000 mm
- - Ow stroke: 500 mm
- - Ow speed: 60 mm/s ; bw-speed: 60º/s
- - Bw-adjustment: 80 mm; bm-adjustment +/ -40 mm
- - Bw/bm-verst-speed: 2. 7 mm/s
- - Motorised adjustment 0-80 mm
- - Pitch segm. - ow r= 0. 50 mm wzs2000 ca. 1000 n/mm
- - Goat's foot seg. Ow c l 200 r= 0. 50 mm h=120 mm approx. 1000 n/mm2 ; a= 45mm b= 85mm 30º length (1x) = 200 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
