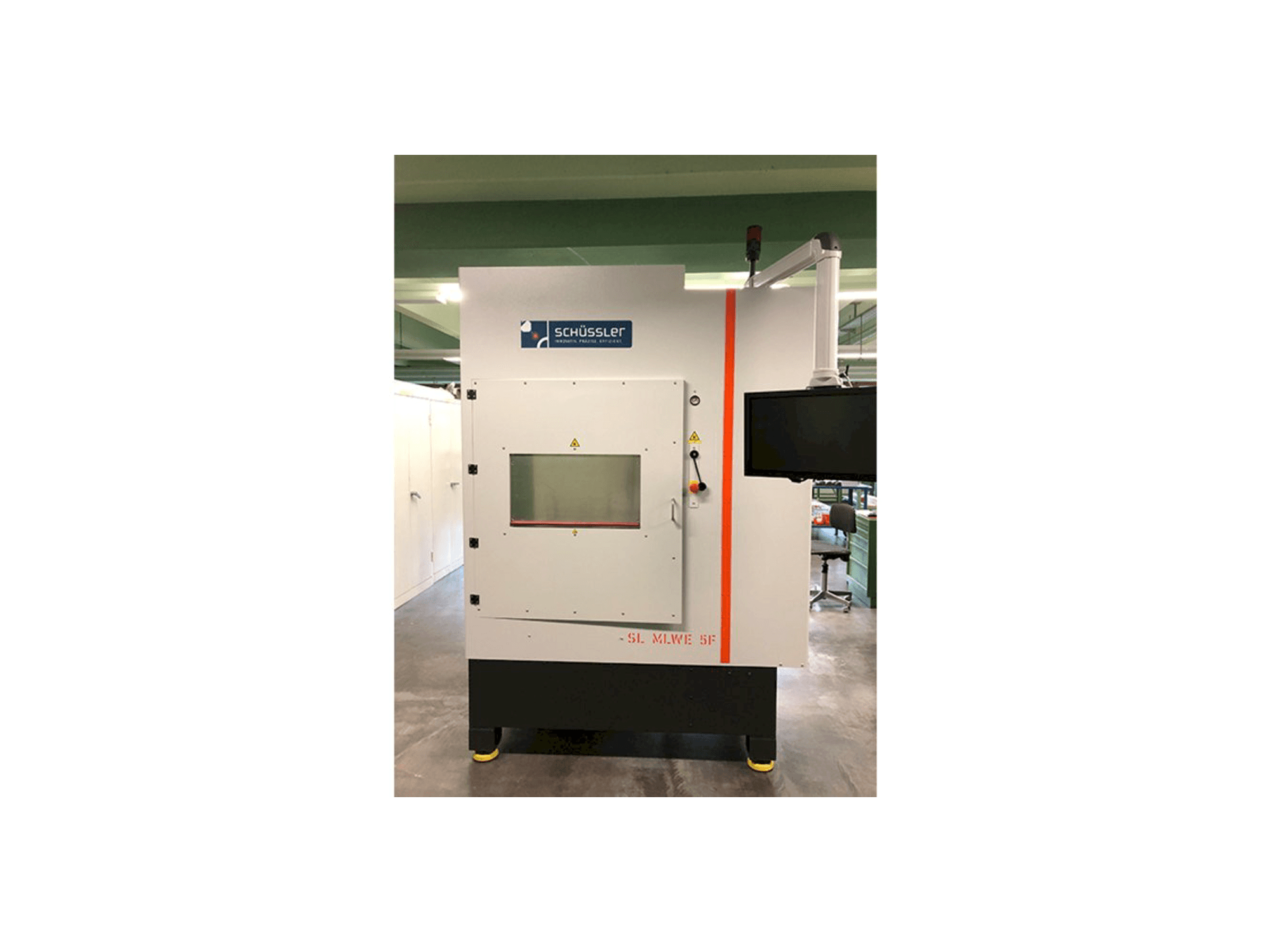

Schussler SL MLWE 5F Laser Welding machine

Show in original language

This Schussler SL MLWE 5F Laser Welding machine was manufactured in the year 2020. Operated through an Industrial touch monitor. This 5 axis works with a QCW laser (IPG) 150 kW. Machine is new, has 0 production hours.

Overview

brand: Schussler
year: 2020
MODEL: SL MLWE 5F
production hours: 0
application type: Other Sheet Metal Machinery
Location: Germany
machine type: Laser Welding Machine
availability: Sold

Technical Information - Schussler SL MLWE 5F

General Data

Measurements width: 1700 mm
Measurements depth: 1260 mm
Measurements height: 2350 mm

Main drive

Number of spindles: 1
Laserpower: 150 kW
Number of axis: 5

Movement

X-AXIS Movement: 500 mm
Y-AXIS Movement: 300 mm
Z-AXIS Movement: 200 mm

Table

Table load: 25 kg

Media

Main electronic connection: 400V 50/60 Hz

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Workpiece holder on the rotary-swivel unit
- - Led work area lighting
- - Door with automated loading window
- - Observation camera in the interior
- - Maintenance-free direct drives as linear and rotary axes
- - Switch cabinet with integrated control
- - Industrial touch monitor
- - Industrial pc (i7) with windows operating system data transfer via usb and network
- - Wavelength 1055-1070 nm
- - Pulse frequency 0-5 khz, cw
Qualitative Machine Benefits:
- - 5 machines available - each machine including the laser and the optic
- - The machines have a legal warranty of 12 months
- - 5 axis cnc laser machining center for microlaser welding with "fixed optics"
- - Basic machine flexible cnc laser machining center
- - Machine frame in stable steel-welded construction housing according to laser protection class 1
- - Compact design due to attached laser source
- - Objective f=150 mm
- - Rotation axis without clamping cylinder
- - Preparation protective gas supply in the machine consisting of valve and connection at the back of the machine for connection of gas supply by customer
- - Suction preparation consisting of sensor and flexible hose

Extra information

- Machine as new

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
