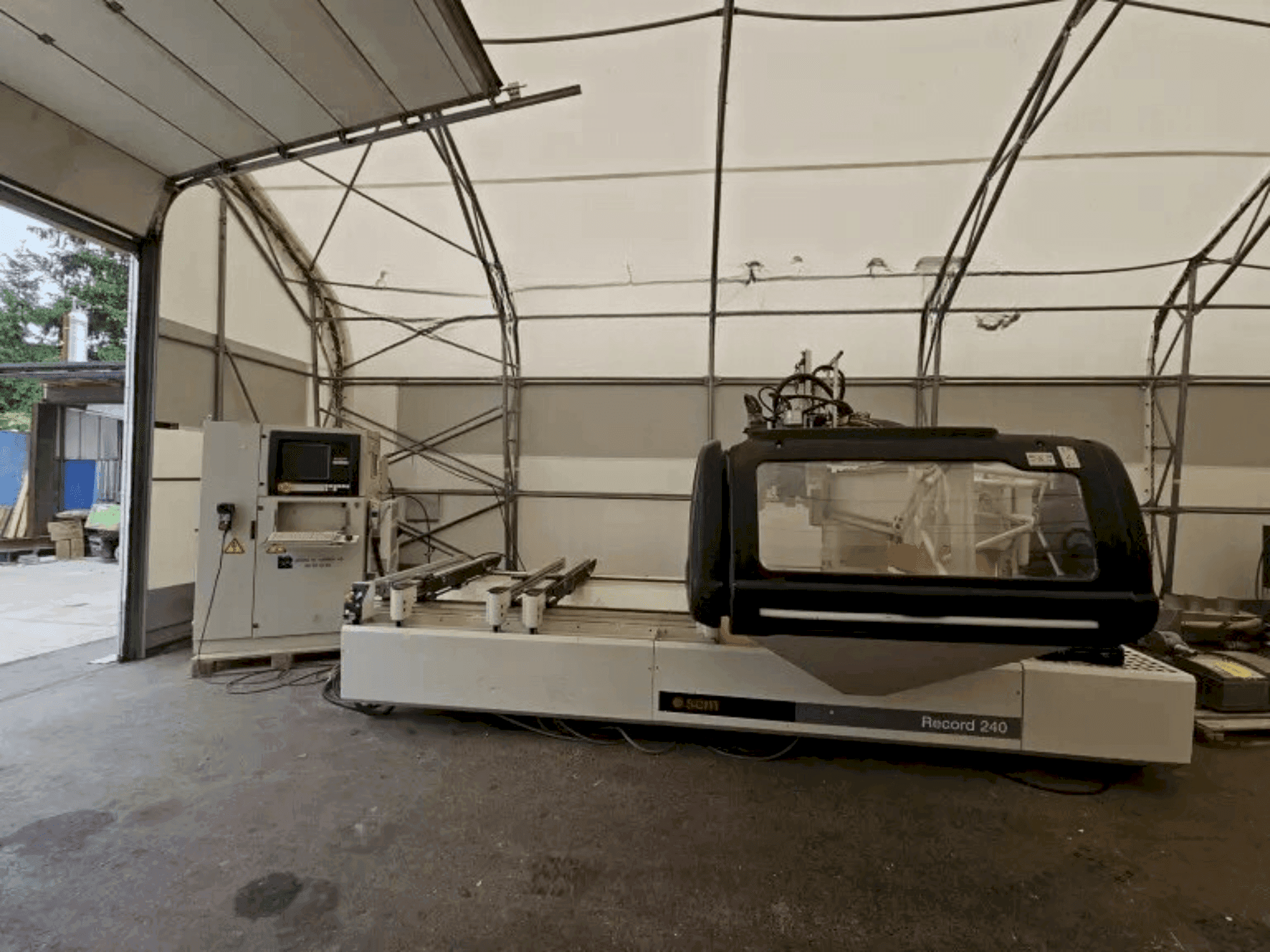

SCM Record 240 TV

Photo Gallery

SCM - Record 240 TVSI-WOO-SCM-2001-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Wood Working
➤ Used SCM Record 240 TV For sale | gindumac.com

Show in original language

This 3-axis SCM Record 240 TV woodworking machine was manufactured in 2001. It features a working dimension of 3000 x 1300 mm, a 7.5 kW router, and a 12-position tool changer. Equipped with a boring unit that includes 12 vertical and 6 horizontal spindles, and a 2.2 kW saw unit adjustable from 0-360 degrees. Ideal for diverse woodworking tasks, buy this SCM Record 240 TV woodworking machine. Contact us for further details regarding this woodworking machine.

Overview

brand: SCM
year: 2001
MODEL: Record 240 TV
production hours: 0
application type: CNC Wood Machining
Location: Slovenia
machine type: CNC Router

Technical Information - SCM Record 240 TV

Main drive

Number of axis: 3

Movement

X-AXIS Movement: 3000 mm
Y-AXIS Movement: 1300 mm

Tools

Number of stations: 12

Additional equipment

- Conveyor for efficient waste removal.

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Router power: 7. 5 kw
- - Saw unit power: 2. 2 kw, 0-360 degrees
- - Working dimensions: 3000 x 1300 mm
- - Vertical spindles: 12 // horizontal spindles: 6
- - Working table configuration: 6 bars, 18 vacuum cups
- - Vacuum pump: 100 m³/h
- - Powerful router for proficient machining.
- - Comprehensive boring unit with 12 vertical and 6 horizontal spindles.
- - Efficient saw unit with 0-360 degrees adjustments.
- - Robust workholding with 18 vacuum cups and a powerful vacuum pump.
Qualitative Machine Benefits:
- - Versatile tooling options with a 12-position tool changer.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
