Used SEI LASER X-Type 1610 - 2016 - Laser Cutting Machine for sale | gindumac.com

Show in original language

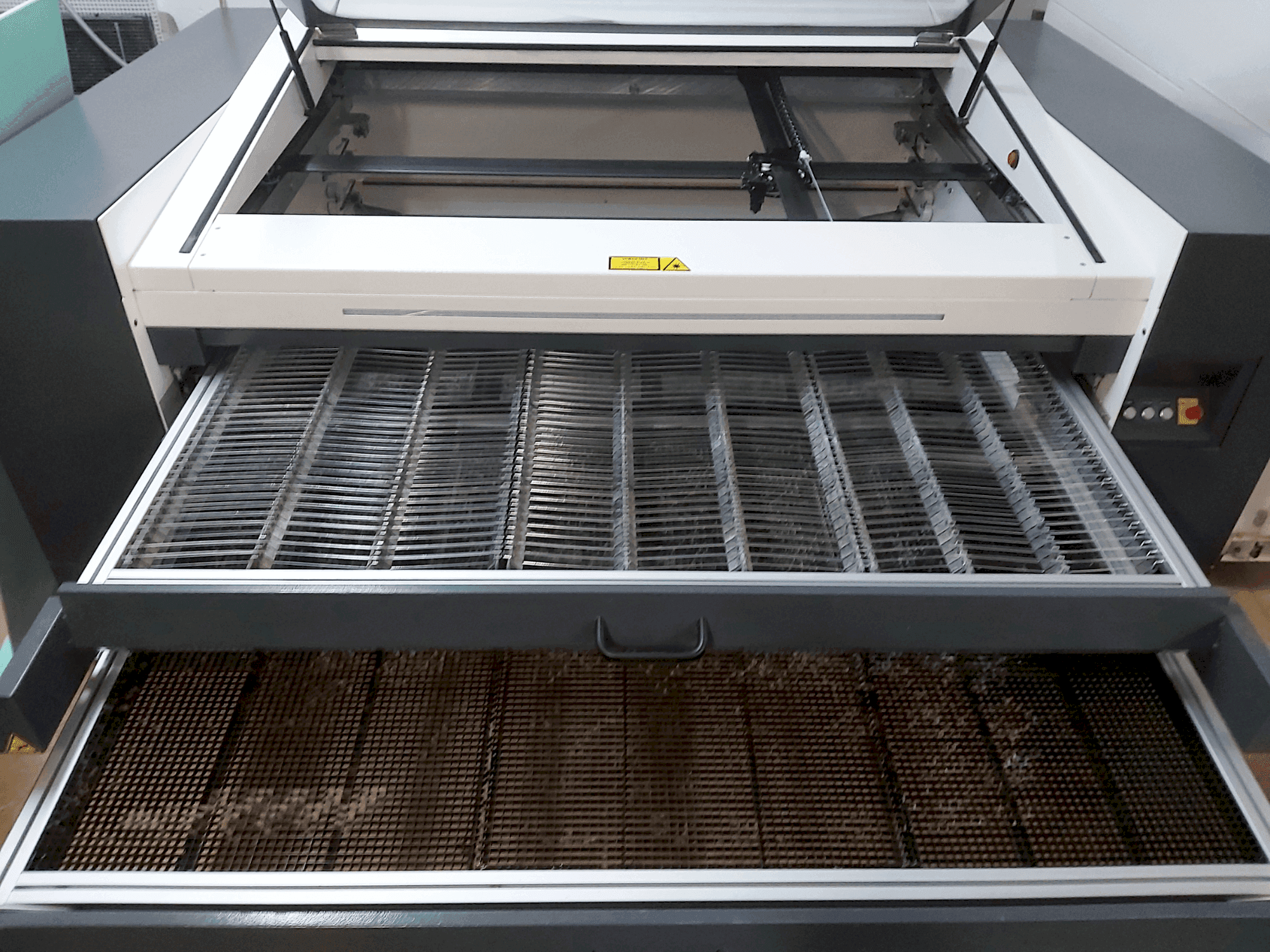

This 3-axis Sei SPA X-Type 1610 laser cutting machine was manufactured in 2016. It features dual tables allowing for simultaneous loading and unloading during processing, and a standard cutting head with a compressed air requirement of 6 bar. The machine can handle a maximum material weight of 40kg and includes a controlled motorized table stroke for precision. A great opportunity to buy this Sei SPA X-Type 1610 laser cutter. Reach out for more information about this machine.

Overview

brand: SEI
year: 2016
MODEL: SPA X-Type 1610
production hours: 270
application type: Cutting
Location: Austria
machine type: CO2 Laser Cutting Machine
availability: Immediately

Technical Information - SEI SPA X-Type 1610

General Data

Measurements width: 2760 MM
Measurements depth: 1950 MM
Measurements height: 1310 MM
Machine weight: 1400 KG

Main drive

Laserpower: 230 KW

Workpiece

Workpiece weight: Maximum 40kg

Table

Outer length: 1600 MM
Outer width: 1000 MM

Additional equipment

- Standard cutting head: compressed air 6 bar
- Two tables for loading and unloading
- Linear motors and carbon fiber traverses
- Liquid cooling for laser source
- A Herding Delta 1500-10/9 with multicoater
- Factory-fitted extraction fan

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Axis x-y; max. Working speed 3000mm
- - Axis x-y; max. Laser running speed 3000mm
- - Axis x-y accuracy 0. 001mm
- - Z-axis stroke: 210 mm with dual table, 80mm with mono table
- - Max. Scanning speed: 3000mm /s

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
