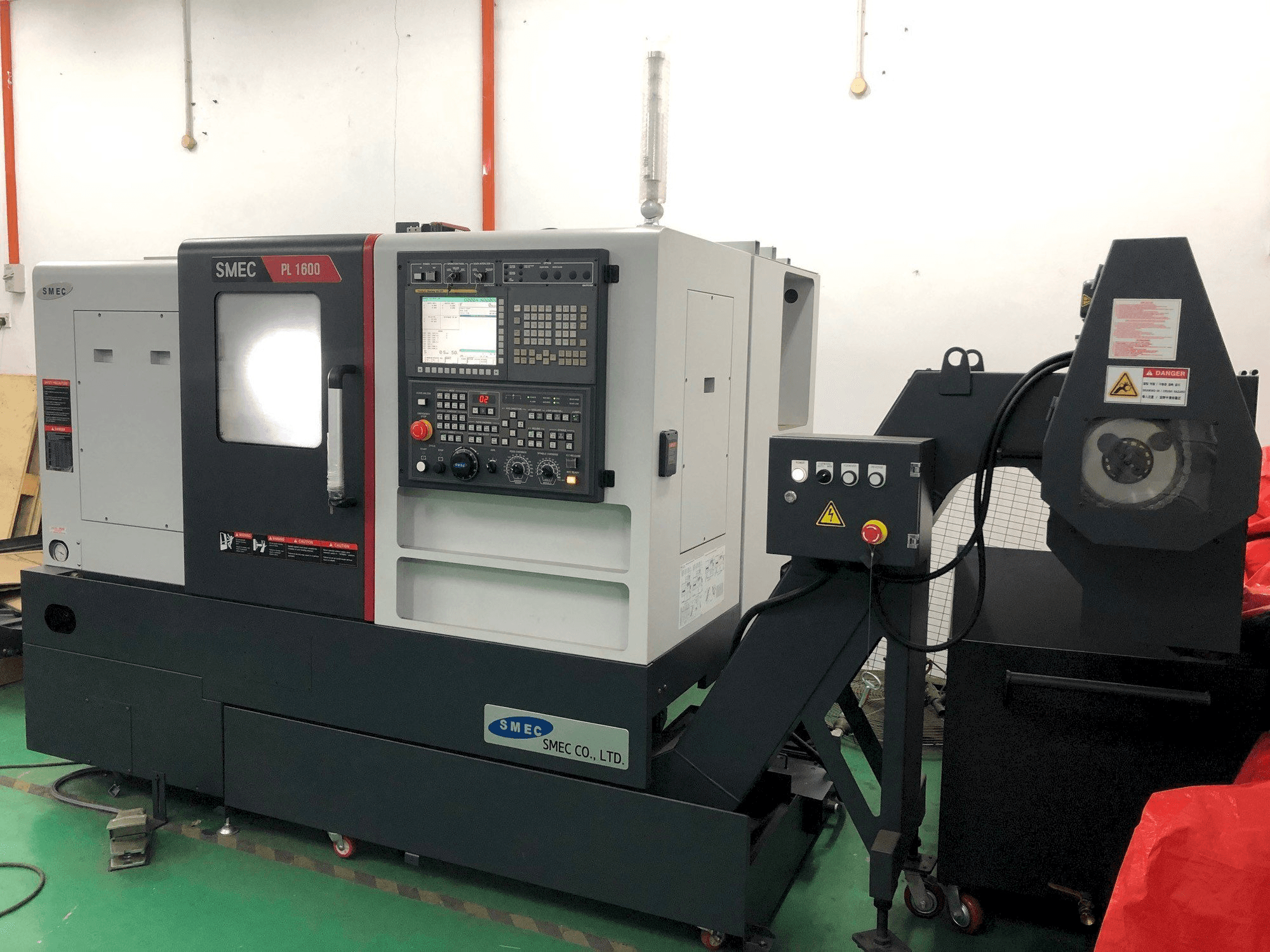

SMEC PL 1600 Lathe

Show in original language

This SMEC PL 1600 Lathe was manufactured in Malaysia in the year 2017. This machine is equipped with a Fanuc Series Oi-TF control unit. It can perform with a spindle speed up to 6000 rpm. It includes tailstock.

Overview

brand: SMEC
year: 2017
MODEL: PL 1600
application type: Turning
Location: Malaysia
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - SMEC PL 1600

General Data

Measurements width: 2295 mm
Measurements depth: 1520 mm
Measurements height: 1657 mm
Machine weight: 2850 kg

Control Unit

Model: Series Oi-TF
Brand: FANUC

Main drive

Spindle speed range: 6000 1/MIN
Spindle bore: 61 mm

Movement

X-AXIS Movement: 165 mm
X-AXIS Rapid traverse: 24 m/min
Z-AXIS Movement: 350 mm
Z-AXIS Rapid traverse: 30 m/min

Turret

Number of tool slots: 12

Media

Main electronic connection: 220 V
Power consumption: 22 kVA

Additional Information

Additional equipment

Tailstock included

Machine Benefits

Technical Machine Benefits

Swing over the bed: 530 mm
Swing over the cross slide: 290 mm
Max. Machining diameter: 290 mm
Max. Machining length: 307 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
