SMERAL LKT 250D

Photo Gallery

SMERAL - LKT 250DSK-STA-SME-2019-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

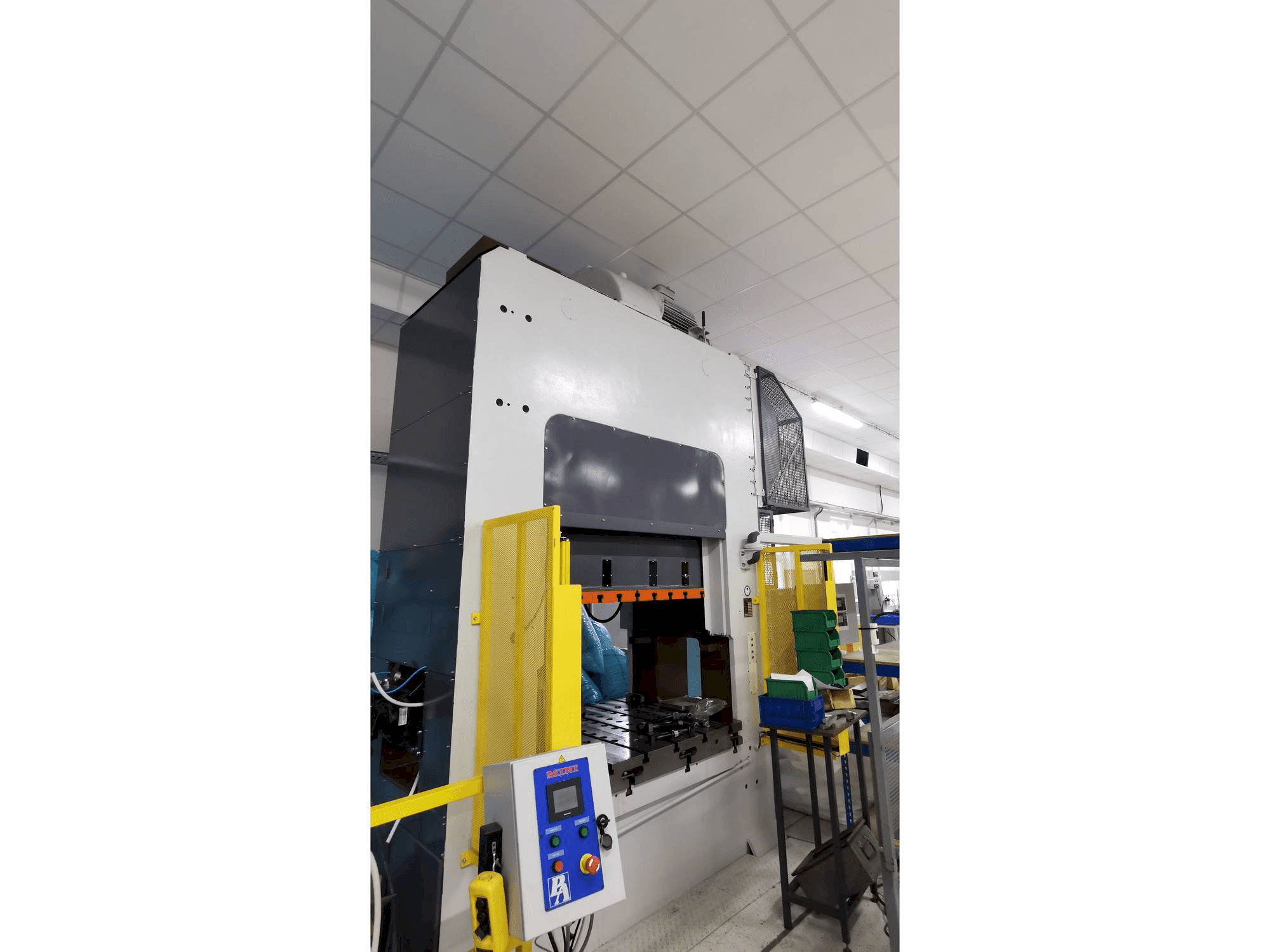

SMERAL LKT 250D Stamping machine

Show in original language

This SMERAL LKT 250D Stamping machine was manufactured in the year 2019 in Czech Republic. It is equipped with a MINI control unit.

Overview

brand: SMERAL
year: 2019
MODEL: LKT 250D
production hours: 0
application type: Other Sheet Metal Machinery
Location: Slovakia
machine type: Sheet Metal Machine

Technical Information - SMERAL LKT 250D

General Data

Machine weight: 27000 kg

Table

Outer length: 1575 mm
Outer width: 1150 mm

Additional equipment

- Feeding line (decoiler, straightener, feeder)

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Main motor power 30 kw / nominal force 2500 kn / working path 12. 5 mm
- - Strokes per min 20 / ram stroke 250 mm
- - Ram size 1380 x 850 mm / adjustment of ram 100 mm
- - Daylight 1600 mm
- - Passage under guidance 1600 mm / table working surface 1575 x 1150 mm / table top thickness 130 mm
- - The power of the electric motor for adjustment is 2. 2 kw / speed of the electric adjustment motor 1440 rpm
- - Press width 2980 mm / press depth 1500 mm / press height 4615 mm
Qualitative Machine Benefits:
- - Fully retrofitted machine in 2019

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
