Sodick AQ1200L

Photo Gallery

Sodick - AQ1200LDE-EDM-SOD-2011-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

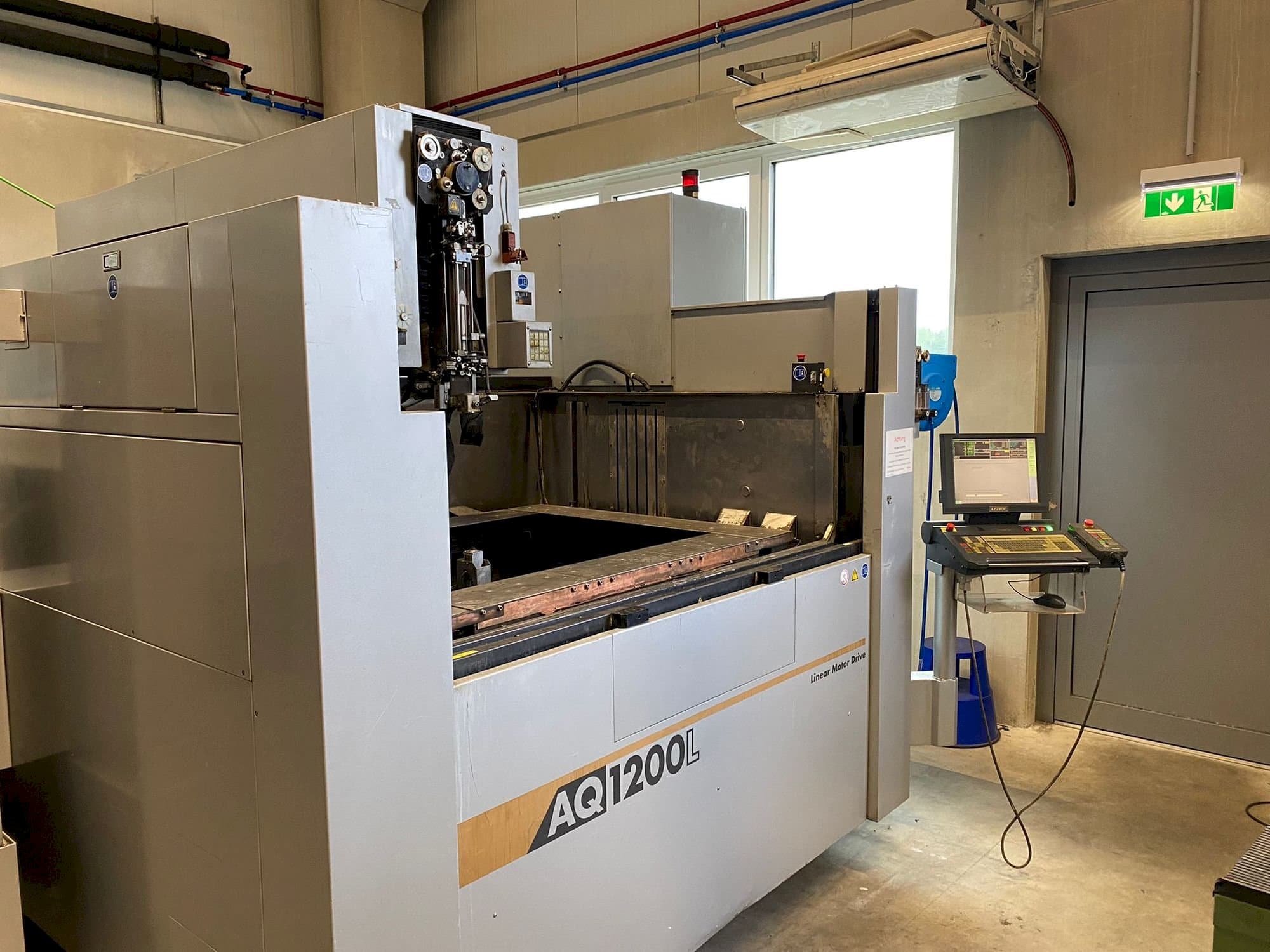

Sodick AQ1200L Erosion machine

Show in original language

This Sodick AQ1200L Erosion machine was manufactured in the year 2011 in Thailand and has 25000 production hours. It is equipped with a Sodick LP2WH control unit and has 5 axis. The machine has a wire diameter of Ø 0. 15 - Ø 0. 33 mm and a max wire speed of 423 mm/sec.

Overview

brand: Sodick
year: 2011
MODEL: AQ1200L
production hours: 25000
application type: EDM
Location: Germany
machine type: Wire EDM Machine
control unit brand: SODICK

Technical Information - Sodick AQ1200L

General Data

Measurements width: 4100 mm
Measurements depth: 3870 mm
Measurements height: 2490 mm
Machine weight: 11000 kg

Control Unit

Model: LP2WH
Brand: SODICK

Main drive

Number of axis: 5

Movement

X-AXIS Movement: 1200 mm
Y-AXIS Movement: 800 mm
Z-AXIS Movement: 400 mm
V-Axis Movement: 820 mm
U-Axis Movement: 1220 mm

Workpiece

Workpiece weight: 4000 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Taper angle (for 150 mm height): ±30°
- - Internal dimensions of working tank (mm): 1824 x 1400
- - Max. Workpiece dimensions (w x d x h, mm): 1600 x 1200 x 400
- - Wire diameter (mm): Ø 0. 15 - Ø 0. 33
- - Wire tension (n): 3 - 23
- - Max. Wire speed (mm/sec): 420
- - Distance floor - table (mm): 1200
- - Controlled axes: 5
Qualitative Machine Benefits:
- - Y-guides were exchanged.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
