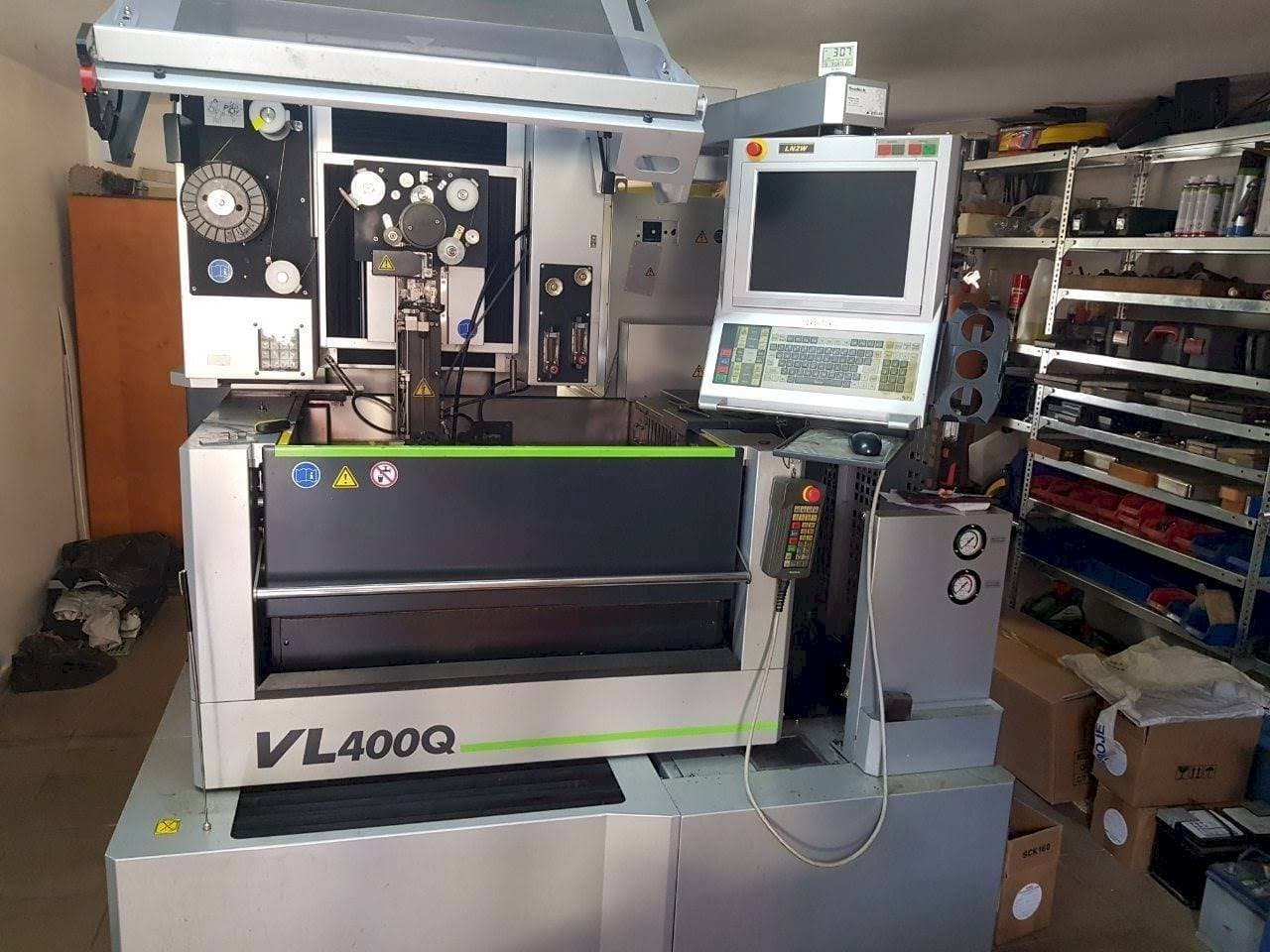

Sodick VL 400Q Erosion Machine

Show in original language

This Sodick VL 400Q Erosion Machine was made in 2017 in Japan. It has been working for only 3100 hours. It is equipped with a Sodick LN2W control unit. This machine can work with a wire diameter of 0.1 to 0.3 mm. Machine in top condition, like new.

Overview

brand: Sodick
year: 2017
MODEL: VL 400Q
production hours: 3100
application type: EDM
Location: Slovakia
machine type: Wire EDM Machine
availability: Sold
control unit brand: SODICK

Technical Information - Sodick VL 400Q

General Data

Measurements width: 2020 mm
Measurements depth: 2310 mm
Measurements height: 1990 mm
Machine weight: 2750 kg

Control Unit

Model: LN2W
CNC language customizable: Yes
Brand: SODICK

Main drive

Wire diameter: 0.1-0.3 mm

Movement

X-AXIS Movement: 400 mm
Y-AXIS Movement: 300 mm
Z-AXIS Movement: 220 mm

Workpiece

Workpiece weight: 500 kg

Media

Main electronic connection: 200 V
Power consumption: 11 kVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Wire feed speed (max. ) 420 mm/sec
- - Work tank dimensions (w×d) 860 x 690 mm
- - U x v axis travel 90 x 90 mm
- - Taper angle (at workpiece thickness of 120mm) +/- 15 degrees
- - Wire tension 3-23 n
- - Distance from floor to table top 900 mm
- - Dielectric capacity/amount 380 kg/590 l
- - "filtration 2 replaceable paper filters (internal-pressure type)"
- - Linear motor + absolute linear scales (x, y, u, v axis)
- - Ceramic components
Qualitative Machine Benefits:
- - Machine in top condition, like new!

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
