Soraluce - TA-35AHR-MIL-SOR-2015-00002

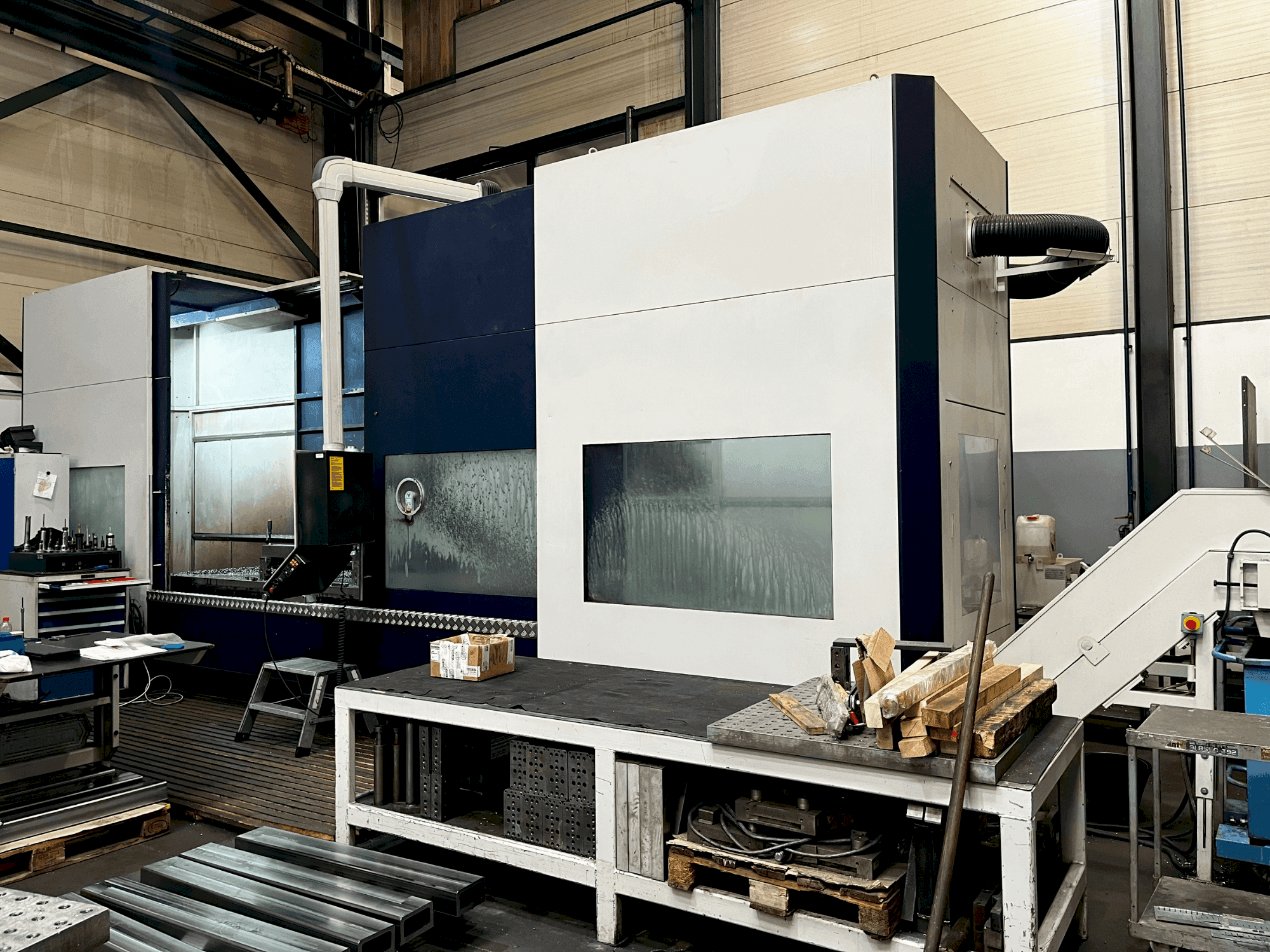

This SORALUCE TA-35A Milling machine was manufactured in 2015 in Spain. It is equipped with a HEIDENHAIN iTNC 530 HSCI (3 axes + spindle) Rotatable remote unit control pendant with joint. Includes a 19" flat screen, metallic keyboard with integrated mouse, and USB interface at the control panel. Processor speed 0.5 ms included too. Interpolation turning with HEIDENHAIN iTNC 530 consisting of CAM system, HEIDENHAIN post-processor, software adaptation C-axis. The machine has Portable electronic handwheel HEIDENHAIN HR 410 with 3 m spiral cable. Dispose of an automatic indexing milling head with 2.5° x 2.5° division and speeds up to 4000 min-1, 28 kW, 479 Nm, including air cooling/oil mist lubrication, tool clamping force 20,000 N, tool holder ISO 50 - DIN 69871 A (H200), not required when selecting milling head H210. Includes a complete splash guard enclosure with a height of 2,600 mm. Consisting of two front doors and one rear door for operating the machine from the front and rear. All doors and walls are equipped with a total of 7 windows. The Hydraulic weight is compensated by a directly acting on the vertical slide. Contains a Machine table with 5 x T-slots 22 H12 (6 x T-slots for table width 1000 mm) and one reference slot 22 H8, T-slot spacing 140 mm.
