SPINNER PD32 Lathe

Show in original language

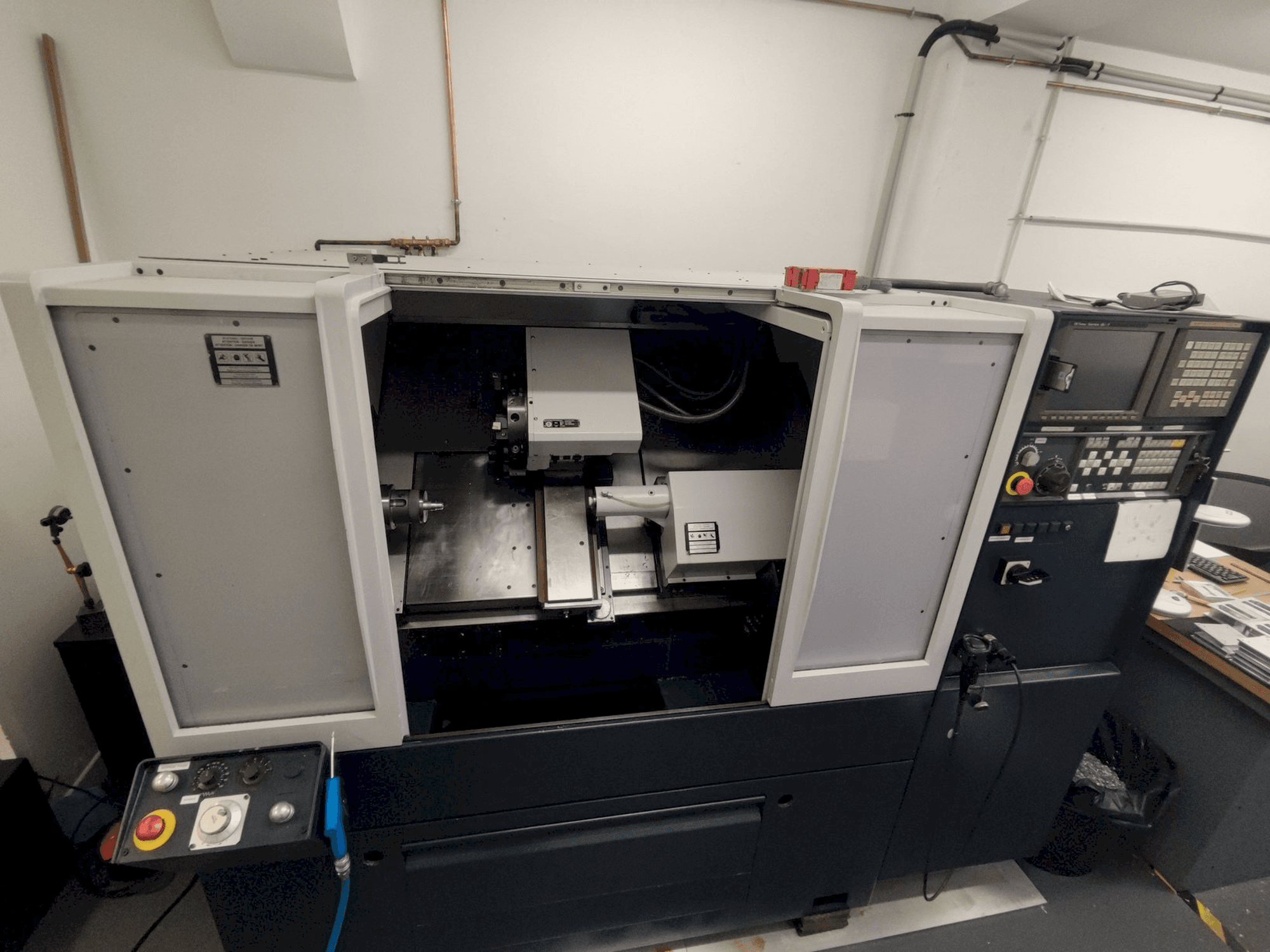

This SPINNER PD32 Lathe was manufactured in the year 2001 in Germany. It is equipped with a Fanuc Series 18i-T control unit. The machine has a spindle speed of 6000 rpm.

Overview

brand: SPINNER
year: 2001
MODEL: PD32
application type: Turning
Location: France
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - SPINNER PD32

General Data

Measurements width: 1200 mm
Measurements depth: 2300 mm
Measurements height: 1700 mm
Machine weight: 2200 kg

Control Unit

Model: Series 18i T
Brand: FANUC

Main drive

Spindle speed range: 6000 1/MIN

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Admited above the bench: 300 mm
- - Passage of the spindle: 32 mm
- - Engine power:7. 7 kw
- - Fast forward: 12m/min
- - Travel of the transverse slide (x): 400 mm
- - Maximum length of the carriage (z): 400 mm
- - The sheath / stroke: 40 / 128 mm.
- - Max speed of motorized tools:
- - Tool holder turret: 12 vd120 tools
- - Max power: 11 kw , max torque: 23 nm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
