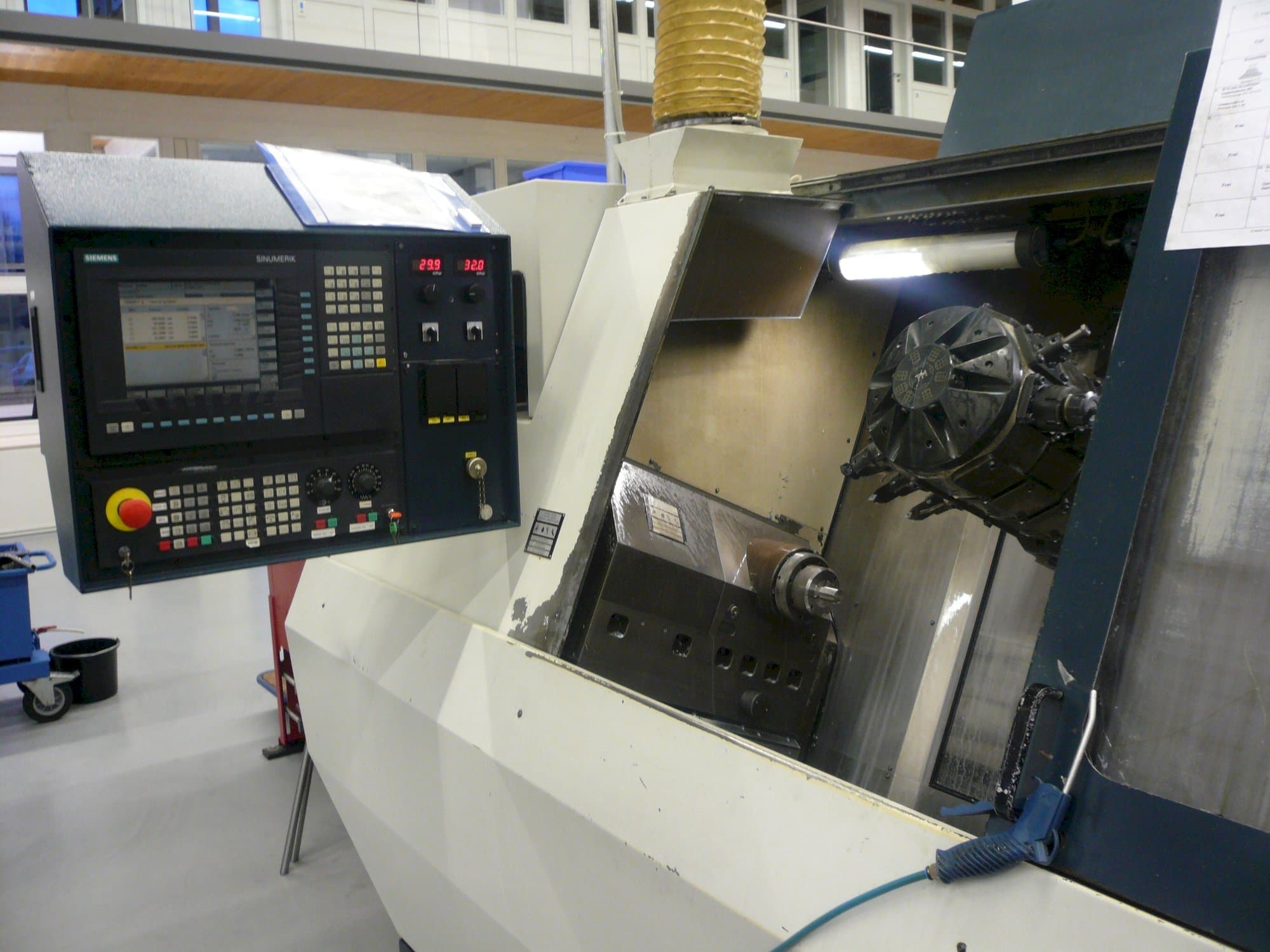

This SPINNER TM Lathe was made in the year 1999. It is equipped with a Siemens Sinumerik control unit. This turning and milling center can operate with a speed up to 6000 rpm. Several additional tools are included as additional equipment.
Overview
- brand: SPINNER
- year: 1999
- MODEL: TM
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
Technical Information - SPINNER TM
Dimensions
- Machine Depth: 2900 mm
- Machine Height: 2300 mm
- Machine Weight: 7500 kg
Movement
- X-axis Travel: 400 mm
- Y-axis Travel: 300 mm
Technical Specification
- Spindle Power: 11 kW
- Spindle Speed: 6000 RPM
Additional Information
Additional equipment
- bar short loader 1m
- various spindle reductions
- clamping devices
- measuring probe chip conveyor
Machine Benefits
Technical Machine Benefits
- Chuck diameter 140 mm
- Number of positions revolver 1 total 24
- Rapid traverse 20 m/min
- Tool holder static and driven
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
