SPINNER VC 1200

Photo Gallery

SPINNER - VC 1200DE-MIL-SPI-2014-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

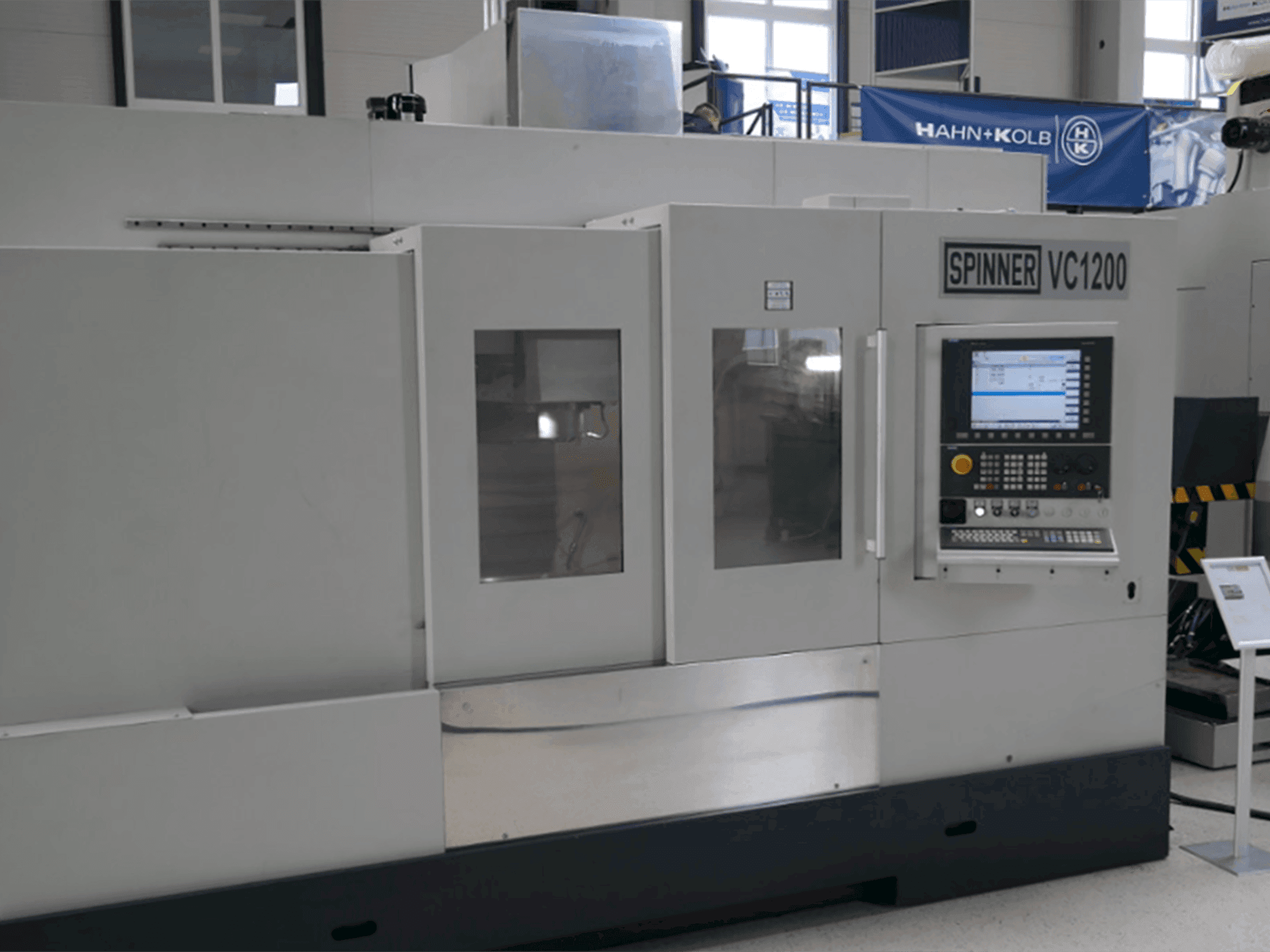

SPINNER VC 1200 Vertical Machining Center

Show in original language

This SPINNER VC 1200 Vertical Machining Center was manufactured in 2014. It has a working history of approximately 22000 hours. It is operated through a Siemens 840D-SL control unit. This machine can operate with a spindle speed up to 12000 rpm. It includes a chip conveyor, and a coolant.

Overview

brand: SPINNER
year: 2014
MODEL: VC 1200
production hours: 22000
application type: Milling
Location: Germany
machine type: Universal Machining Centre
control unit brand: SIEMENS

Technical Information - SPINNER VC 1200

General Data

Measurements width: 4240 mm
Measurements depth: 2270 mm
Measurements height: 3000 mm
Machine weight: 10500 kg

Control Unit

Model: 840D-SL
Brand: SIEMENS

Main drive

Spindle speed range: 12000 1/MIN
Spindle motor power: 28 kW

Movement

X-AXIS Movement: 1200 mm
X-AXIS Rapid traverse: 48 m/min
Y-AXIS Movement: 730 mm
Y-AXIS Rapid traverse: 48 m/min
Z-AXIS Movement: 650 mm
Z-AXIS Rapid traverse: 48 m/min

Table

Outer length: 1400 mm
Outer width: 710 mm
Table load: 1000 kg

Tools

Type of tool holder: SK 40

Media

Main electronic connection: 400 V

Additional Information

Additional equipment

Chip conveyor
Coolant thought spindle, 22 bar

Machine Benefits

Technical Machine Benefits

Spindle torque: 178 nm
Tool magazin: 32 stations
Clamping surface: 1400 x 710 mm
Load capacity: 1000 kg

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
