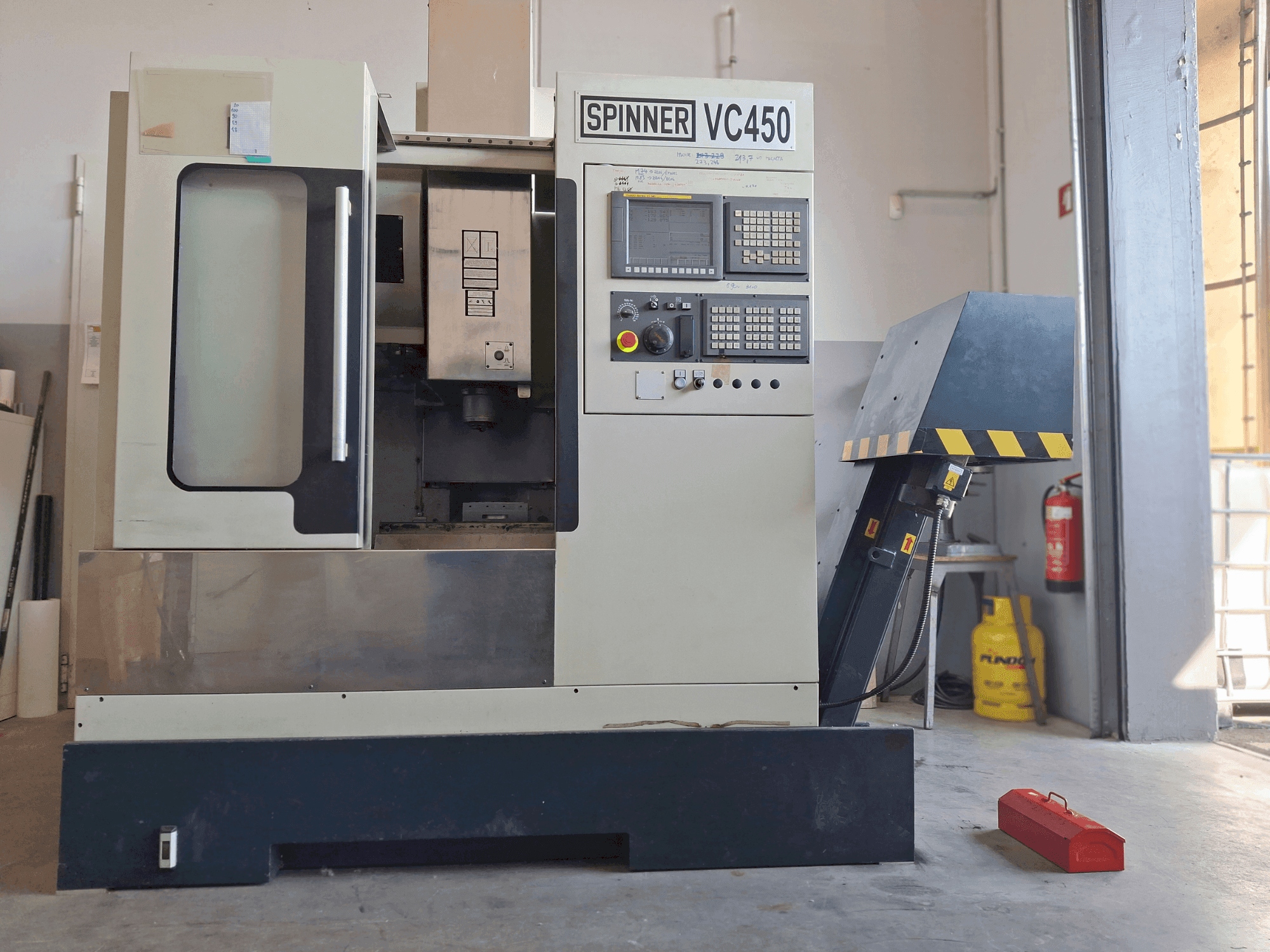

Front view of SPINNER VC 450 machine
Front view of SPINNER VC 450 machine

SPINNER - VC 450SI-MIL-SPI-2011-00001

Rs. 2,538,800
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis SPINNER VC 450 was manufactured in 2011. It features a Fanuc 0i-MD control unit, X/Y/Z travels of 450/400/400 mm, and a rapid traverse rate of 36 m/min. The spindle operates at up to 15,000 rpm with a power of 7.5 kW. It includes a 24-tool changer, linear guideways, and a chip conveyor. If you are looking to get high-quality milling capabilities consider the SPINNER VC 450 machine we have for sale. Contact us for more information.

Overview

  • brand: SPINNER
  • year: 2011
  • MODEL: VC 450
  • application type: Milling
  • Location: Slovenia
  • machine type: Vertical Machining Centre
  • control unit brand: FANUC

Technical Information - SPINNER VC 450

Control Unit

  • Brand: FANUC
  • Model: oi-md

Main drive

  • Spindle speed range: 15000 1/MIN
  • Spindle motor power: 7.5 kW (S6/40%)
  • Tool taper: SK40 (DIN 69871-A)
  • Number of axis: 3

Movement

  • X-AXIS Movement: 450 MM
  • X-AXIS Rapid traverse: 36 m/min
  • Y-AXIS Movement: 400 MM
  • Y-AXIS Rapid traverse: 36 m/min
  • Z-AXIS Movement: 400 MM
  • Z-AXIS Rapid traverse: 36 m/min

Table

  • Outer length: 770 mm
  • Outer width: 410 mm
  • Table load: 200 kg

Tools

  • Slots in storage: 24

Media

  • Chip conveyor: Yes

    Additional equipment

    • - Air-blow system for spindle taper
    • - Included: Approx. 40 SK40 tool holders

    Additional Information

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

    Your account manager:

    Sergi Guardia

    Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

    get in contact

    Payment Terms

    • Payment in advance

    • Asset Financing
