STAMA - MC536/TwinDE-MIL-STA-2007-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

Show in original language

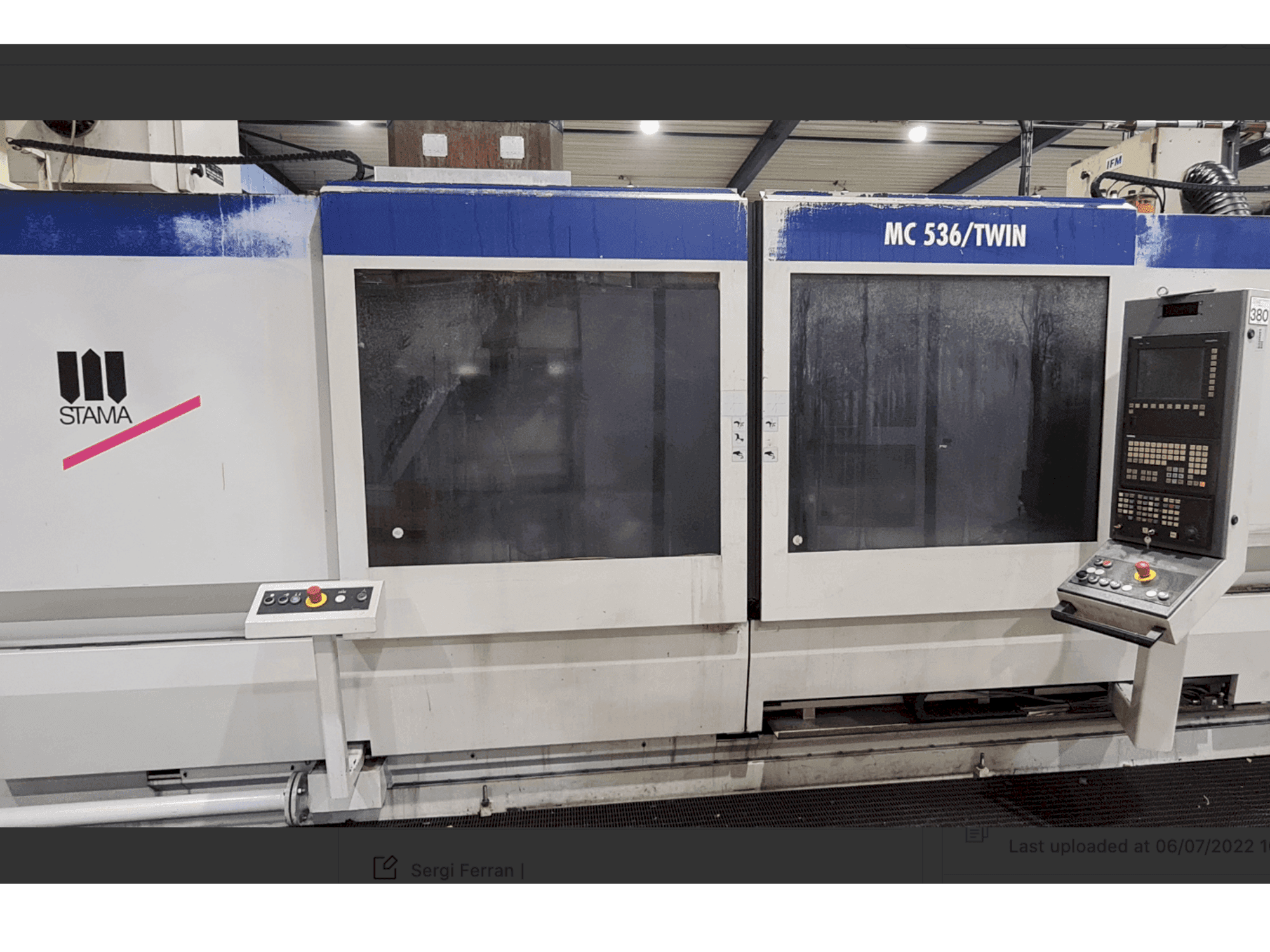

This STAMA MC536/Twin vertical machining machine was built in 2007. This 3 axis machine is operated through a SIEMENS SINUMERIK control unit. This machine has a spindle speed range 0-10000 rpm.

Overview

brand: STAMA
year: 2007
MODEL: MC536/Twin
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - STAMA MC536/Twin

General Data

Measurements width: 3800 mm
Measurements depth: 7300 mm
Measurements height: 3500 mm
Machine weight: 14500 kg

Control Unit

Model: SINUMERIK
Brand: SIEMENS

Main drive

Number of spindles: 2
Spindle speed range: 0-8000 1/MIN
Spindle motor power: S1 - 100% ED: 22 KW
Throat: 120 mm
Number of axis: 3

Movement

X-AXIS Movement: 2200 mm
X-AXIS Feed Force: 10000 n
X-AXIS Rapid traverse: 40 m/min
Y-AXIS Movement: 550 mm
Y-AXIS Feed Force: 10000 n
Y-AXIS Rapid traverse: 40 m/min
Z-AXIS Movement: 510 mm
Z-AXIS Feed Force: 15000 n
Z-AXIS Rapid traverse: 40 m/min

Workpiece

Workpiece weight: 2 x 1500 kg

Table

Min distance between vertical spindle and table: 250 mm
Max distance between vertical spindle and table: 760 mm

Tools

Max tool length: 320 mm
Type of tool holder: HSK100

Media

Main electronic connection: 400 v 50 hz
Power consumption: 74 kw
Internal cooling: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 2 pallets. Pallets size: 2 x 1250 x 250 mm
- - Max. Milling capacity 500 cm3; max. Drilling 50 mm; max. Thread m36
- - Internal coolant supply (50bar) din 69871 a/b
- - Engine power: s6 - 40% ed - 70 kw
- - Spindle bearing 95 mm
- - Max. Torque 300 nm
- - Spindle arrangement a=400
- - Number of tools 2x21; tool tension 45000 n; max. Tool 180
- - Feed speed x,y,z: 1-10000 mm
- - Total connected load 96 kva

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
