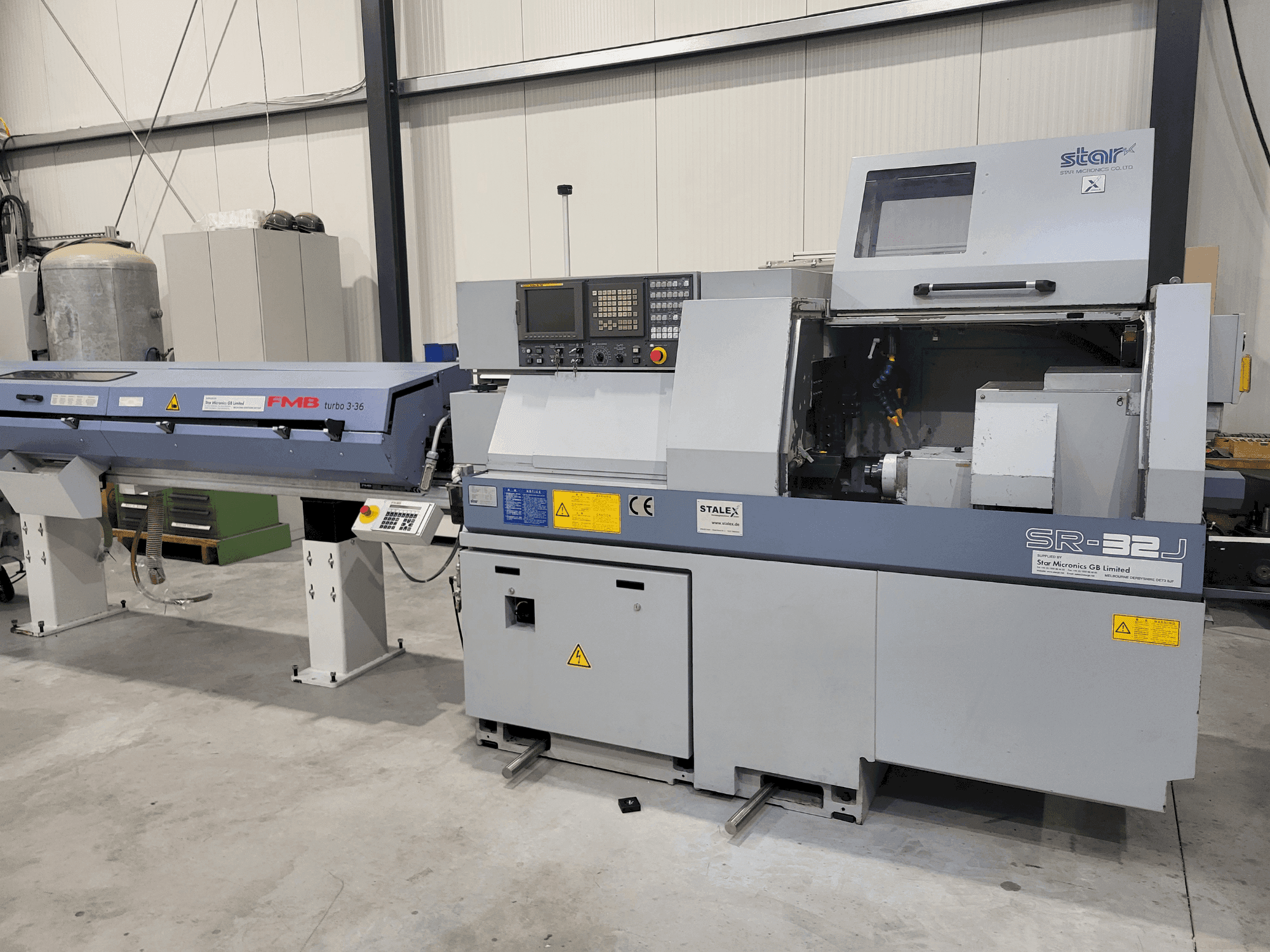

Star - SR-32JDE-TUR-STA-2007-00001

Additional equipment

• - With FMB bar loader
• - The Star SR32J is sold together with an FMB trubo 3-36 stage loader.
• - The bar loader was built in 2008, and the machine itself is from 2007.
• - The machine features a JBS guide bushing system for increased precision thanks to flexible guide bushings.
• - It also features a Star ER 16/ER11 front-end drilling unit with three spindles for front and rear machining.

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Maximum machining diameter: 32mm
  • - Number of tools: 4~15 tools (including op)
  • - Tool shank dimensions: 6mm x 95~155mm
  • - Maximum drilling capability: 13mm
  • - Maximum tapping capability: m12xp1. 75
  • - Maximum die cutting capability: m10xp1. 5
  • - Power-driven attachment maximum drilling capability: 8mm
  • - Maximum tapping capability with power-driven attachment: m6xp1. 0
  • - Maximum milling capability: 10mm
  • - Main spindle indexing angle: c-axis control (15* : op)

Extra information

• - Coolant Tank Capacity: 174 liters
