STYLE - 510 X 1350DE-TUR-STY-2010-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
STYLE 510 X 1350 Lathe

Show in original language

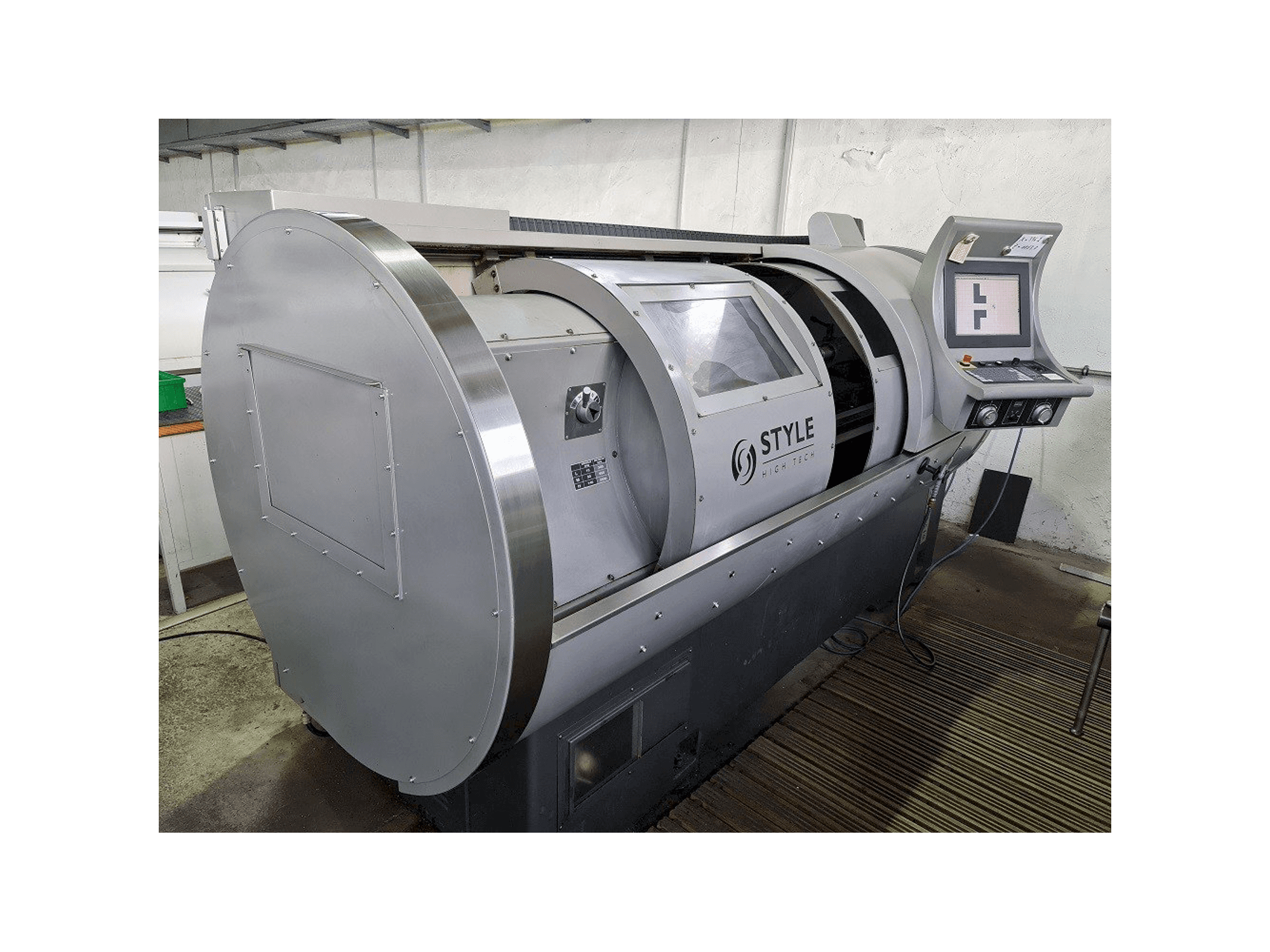

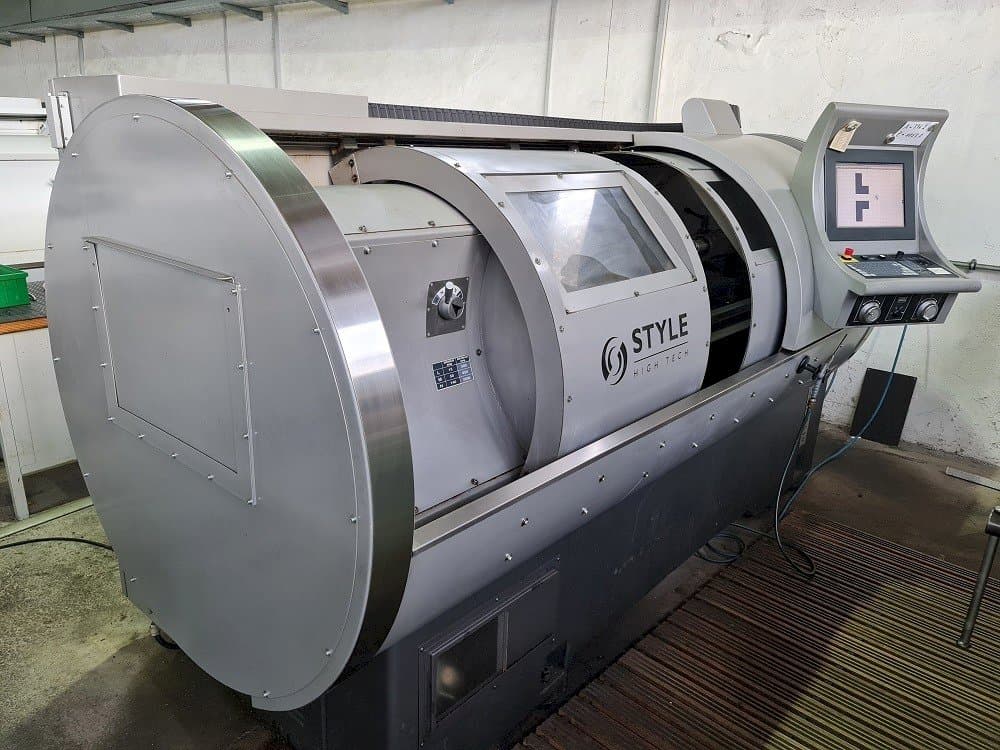

This STYLE 510 X 1350 Lathe was manufactured in the year 2010 in Holland. It is equipped with a STYLE control unit and has 2 axis. The machine has a spindle speed of 2500 rpm.

Overview

brand: STYLE
year: 2010
MODEL: 510 X 1350
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
availability: Sold

Technical Information - STYLE 510 X 1350

General Data

Measurements width: 1800 mm
Measurements depth: 3200 mm
Measurements height: 1800 mm
Machine weight: 2700 kg

Main drive

Spindle speed range: 2500 1/MIN
Spindle motor power: 16 kW
Spindle bore: 80 mm
Number of axis: 2

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Turning diameter over the bed 510 mm
- - Turning diameter over the slide 300 mm
- - Center width 1350 / 1850 mm
- - Bed width 330 mm
- - Max. Weight between centers 600 kg
- - Morse taper mounting d1-8 / d1-8
- - Ball screw Ø x-axis 25 mm, ball screw Ø z-axis 40 mm
- - Rapid traverse 8 m/min, feed rate 0. 01-1000 mm/min
- - Reitstock: quill diameter 75 mm ,quill stroke 150 mm ,quill size 5 mt

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
