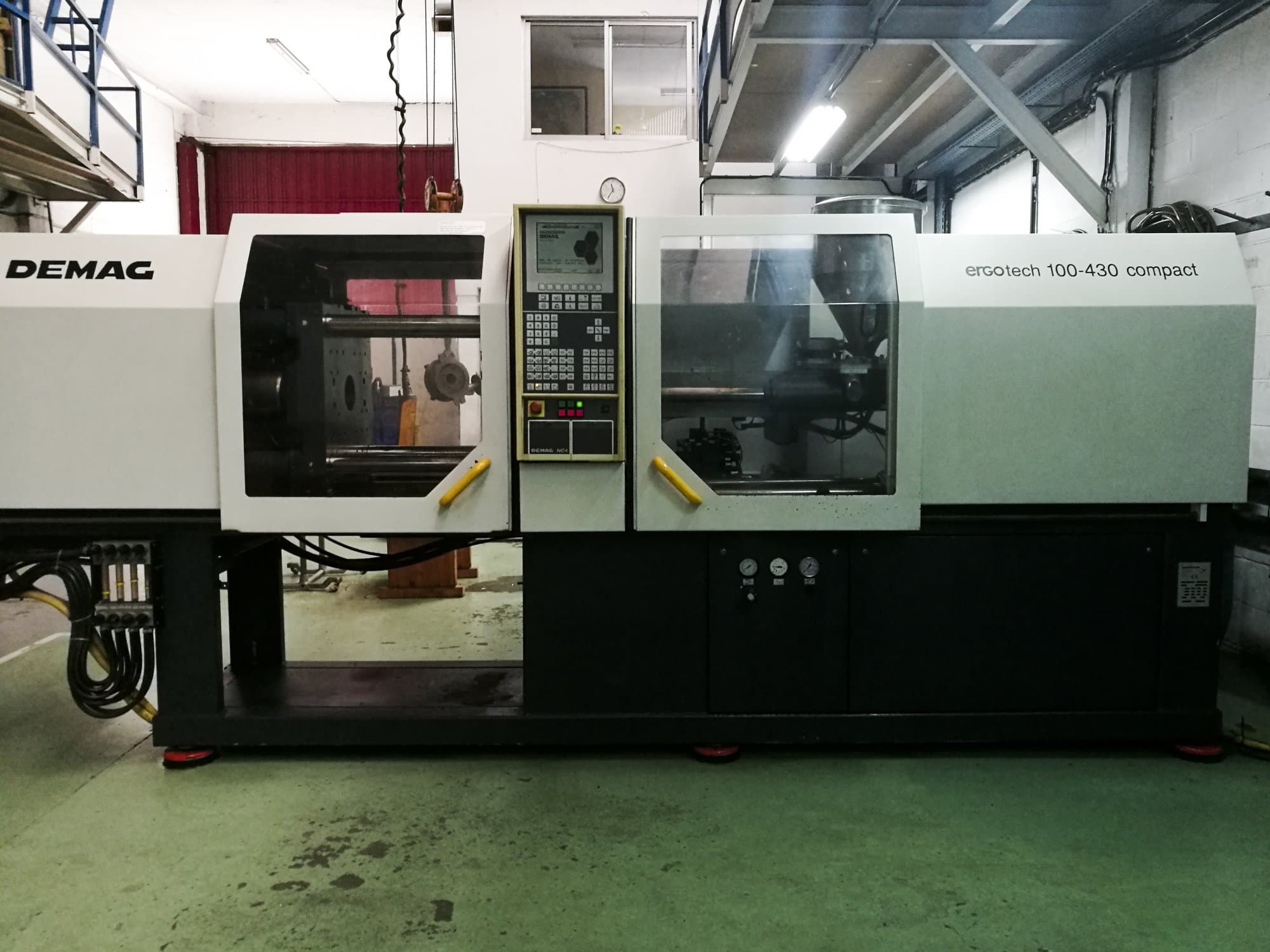

Front view of DEMAG ERGOtech 100-430 compact machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

SUMITOMO SHI DEMAG ERGOtech 100-430 compact

Photo Gallery

SUMITOMO SHI DEMAG - ERGOtech 100-430 compactES-INJ-DEM-1997-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
DEMAG ERGOtech 100-430 compact Injection Moulding Machine

Show in original language

This DEMAG ERGOtech 100-430 compact Injection Moulding Machine dates from the year 1997 and has worked for 59050 production hours since its manufacture. It is equipped with a DEMAG NC4 Control unit that makes this machine very easy to handle, and operates with a 2020 bar injection pressure and 1000 kN clamping force.

Overview

brand: SUMITOMO SHI DEMAG
year: 1997
MODEL: ERGOtech 100-430 compact
production hours: 59050
application type: Injection Moulding
Location: Spain
machine type: Hydraulic Injection Moulding Machine

Technical Information - SUMITOMO SHI DEMAG ERGOtech 100-430 compact

General Data

Measurements width: 4200 mm
Measurements depth: 1400 mm
Measurements height: 1900 mm
Machine weight: 3700 kg

Control Unit

Model: NC4

Injection Unit

Screw diameter: 40 mm
Shot weight: 205 g/PS
Stroke volume: 231.2 cm³
Injection pressure: 2020 bar
Heating capacity: 11.1 kW
Nozzle pressure: 60 kN

Clamping unit

Clamping force: 1000 kN
Opening stroke: 500 mm
Mould height min: 250 mm
Size of mold platens: 580 x 590 mm
Ejector stroke: 150 mm
Ejector force for / back: 41.2 kN

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
