SUMITOMO SHI DEMAG - Ergotech 150-610 CompactDE-INJ-DEM-1998-00005

Name: DEMAG Ergotech 150-610 Compact
Brand: SUMITOMO SHI DEMAG
SKU: DE-INJ-DEM-1998-00005
Price: 1387750 INR
Availability: InStock

Rs. 1,387,750

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery

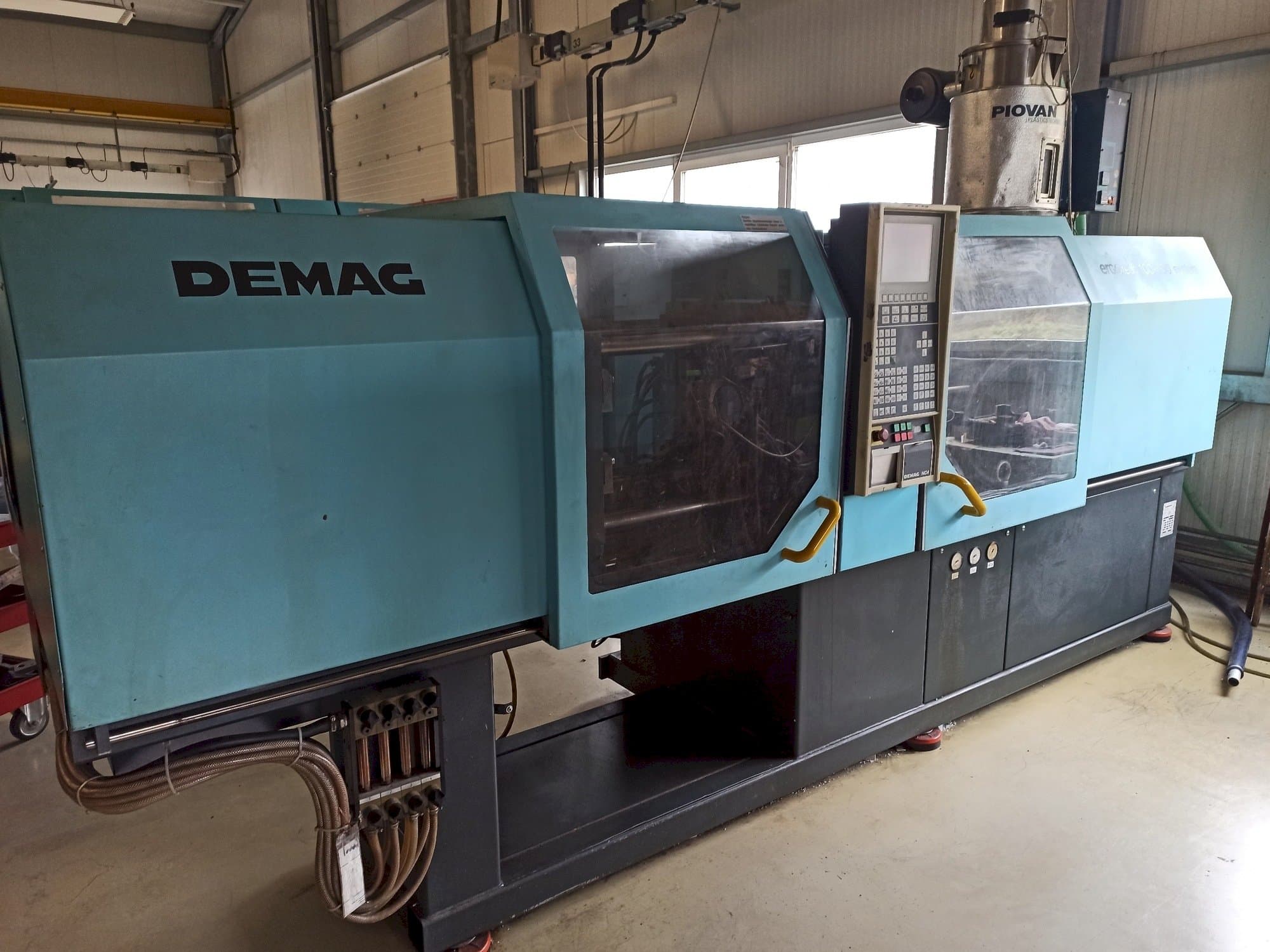

DEMAG Ergotech 150-610 Compact Injection Moulding Machine

Show in original language

This DEMAG Ergotech 150-610 Compact Injection Moulding Machine was built in the year 1998 and has 13860 pump hours. It is equipped with a Demag NC IV control unit. The machine has a clamping force of 1650 kN and a screw diameter of 40 mm.

Overview

brand: SUMITOMO SHI DEMAG
year: 1998
MODEL: Ergotech 150-610 Compact
production hours: 13860
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
availability: Immediately

Technical Information - SUMITOMO SHI DEMAG Ergotech 150-610 Compact

General Data

Measurements width: 5200 mm
Measurements depth: 1600 mm
Measurements height: 2100 mm
Machine weight: 7400 kg

Control Unit

CNC main language: German

Injection Unit

Screw diameter: 40 mm
Shot weight: 230 g
Injection pressure: 2418 bar

Clamping unit

Clamping force: 1650 kn
Max open daylight: 1060 mm
Distance between bars: 500 mm x 500 mm
Mould height min: 250 mm
Mould height max: 560 mm
Size of mold platens: 750 mm x 750 mm
Ejector stroke: 160 mm
Ejector force for / back: 58/26 kN

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max mold weight 1700 kg
- - Core pulls hydr. 2 pcs
- - L / d 20
- - Electrical and hydraulic equipment
- - Rated power of the pump motor: 34 kw
- - Installed heating power: 11,7 kw
Qualitative Machine Benefits:
- - General condition: only one shift used

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
