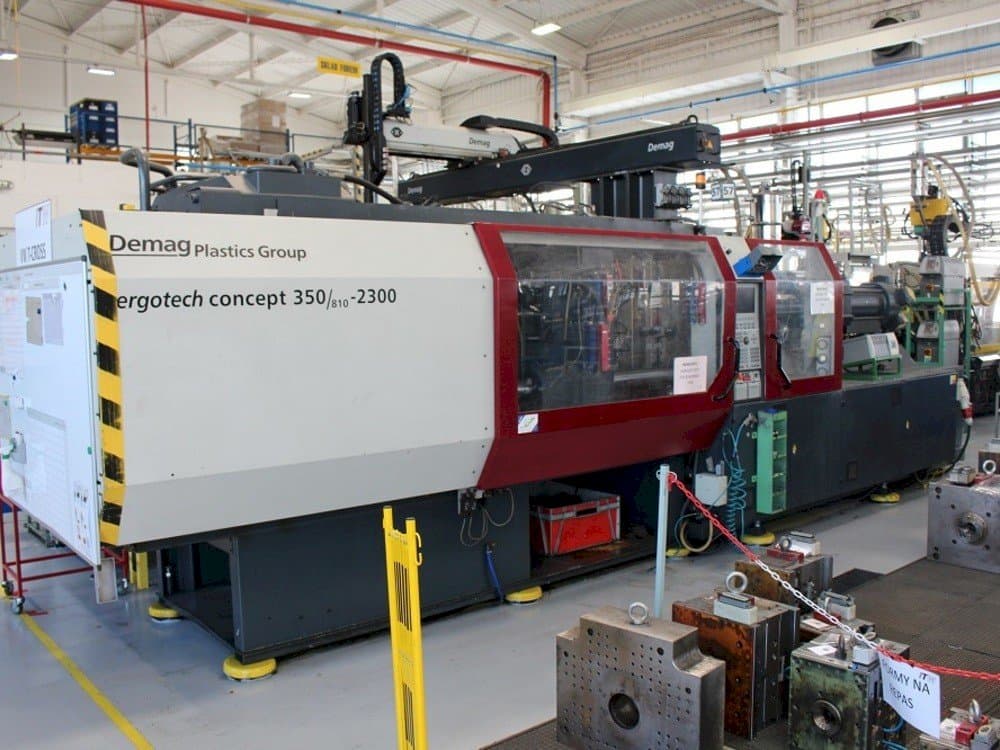

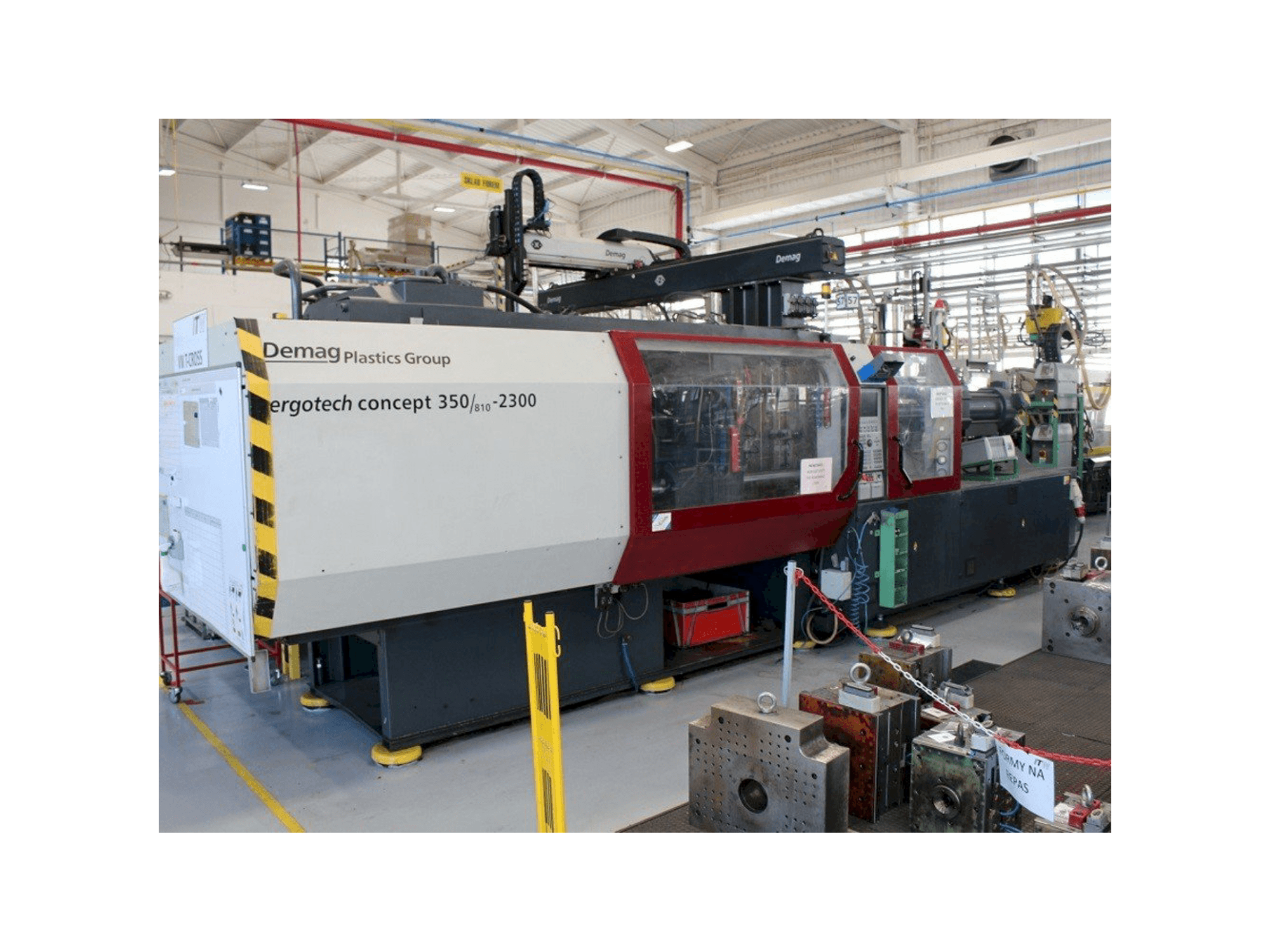

DEMAG Ergotech 350/810-2300 Injection moulding machine

Show in original language

This DEMAG Ergotech 350/810-2300 Injection moulding machine was made in the year 2003 in Germany and has 86200 pump hours. It is equipped with a Demag NC4 control unit. The machine has a clamping force of 3500 kN and has an integrated Demag DR631-0399 robot.

Overview

brand: SUMITOMO SHI DEMAG
year: 2003
MODEL: Ergotech 350/810-2300
production hours: 86200
application type: Injection Moulding
Location: Czech Republic
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - SUMITOMO SHI DEMAG Ergotech 350/810-2300

General Data

Measurements width: 7800 mm
Measurements depth: 2200 mm
Measurements height: 4500 mm
Machine weight: 20000 kg

Injection Unit

Screw diameter: 70 mm
Shot weight: 1090 g
Stroke volume: 1212 CM³
Injection pressure: 1877 bar

Clamping unit

Clamping force: 3500 kn

Additional equipment

- The machine has an integrated Demag DR631-0399 robot.
- Robot interface: Euromap E 67

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Tie bar spacing (h): 810 mm
- - Tie bar spacing (v): 710 mm
- - Platen length: 1200 mm
- - Platen width: 1100 mm
- - Number of cores: 2
- - Opening of the press: 710 mm
- - Mould size: 380

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
