TAILIFT HP1250 Punching Machine

Show in original language

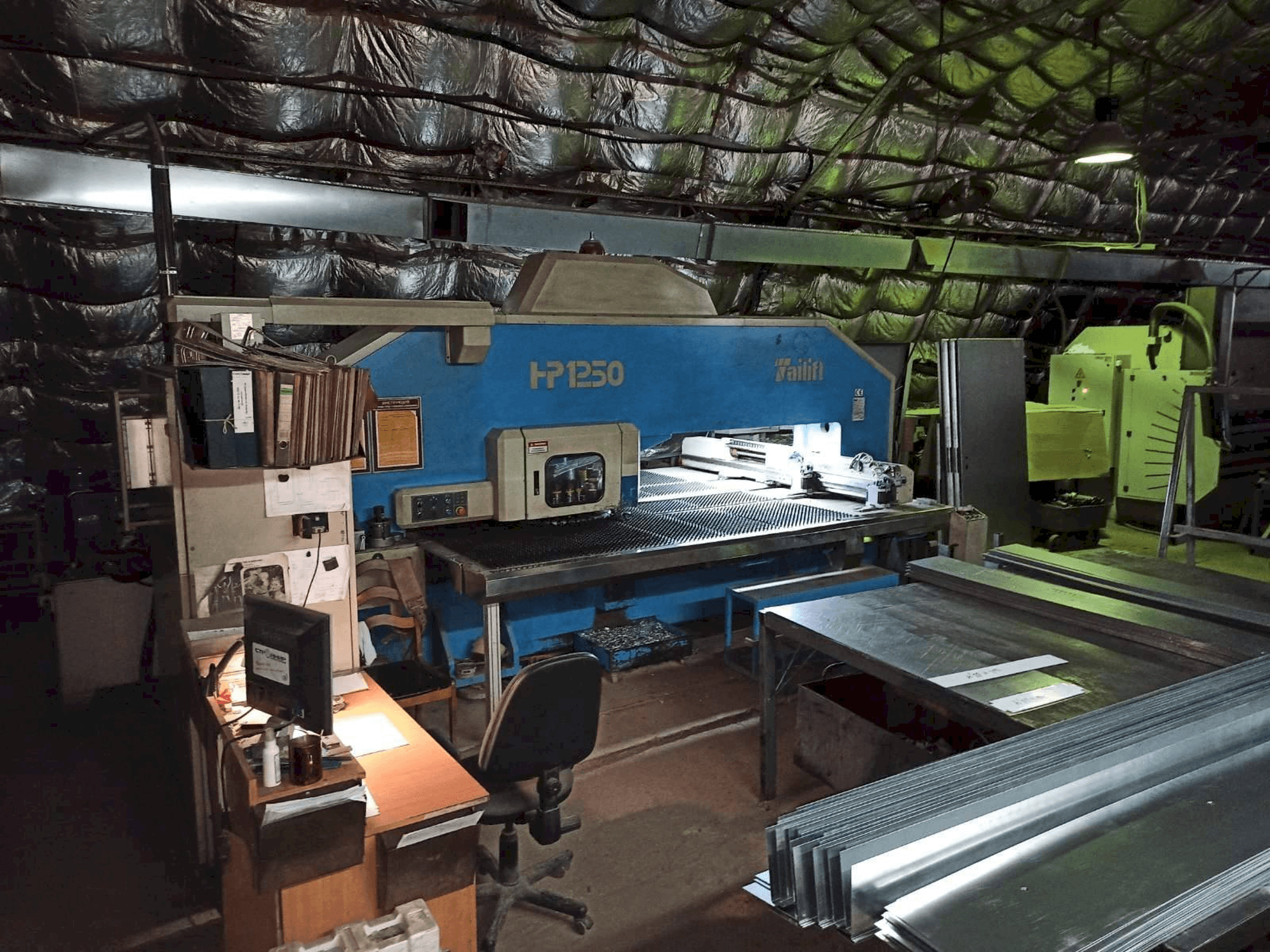

This TAILIFT HP1250 Punching Machine was manufactured in the year 2006. It is equipped with a FANUC Oi-PC control unit. This machine can operate with a punching force of 300 kN, and 36 tool stations.

Overview

brand: TAILIFT
year: 2006
MODEL: HP1250
application type: Punching
Location: Belarus
machine type: CNC Punch Press
availability: Sold
control unit brand: FANUC

Technical Information - TAILIFT HP1250

General Data

Measurements width: 4535 mm
Measurements depth: 2630 mm
Measurements height: 2530 mm
Machine weight: 13000 kg

Control Unit

Model: Oi-PC
Brand: FANUC

Main drive

Punching force: 300 kN

Movement

X-AXIS Movement: 1250±10 mm
X-AXIS Rapid traverse: 75 m/min
Y-AXIS Movement: 1250±10 MM
Y-AXIS Rapid traverse: 60 m/min

Tools

Number of stations: 36

Media

Power consumption: 25 kVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max sheet size: 1250 x 2500 mm
- - Max sheet thickness: 6. 35 mm
- - Max sheet weight: 110 kg
- - Punch speed: 280 hist/min
- - Max punching diameter: 88. 9 mm
- - Turret rotating speed: 40 rpm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
