Takisawa - TS-4000YSHU-TUR-TAK-2021-00001

Name: Takisawa TS-4000YS
Brand: Takisawa
SKU: HU-TUR-TAK-2021-00001
Price: 16248350 INR
Availability: InStock

Rs. 16,248,350

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Takisawa TS-4000YS For Sale | gindumac.com

Show in original language

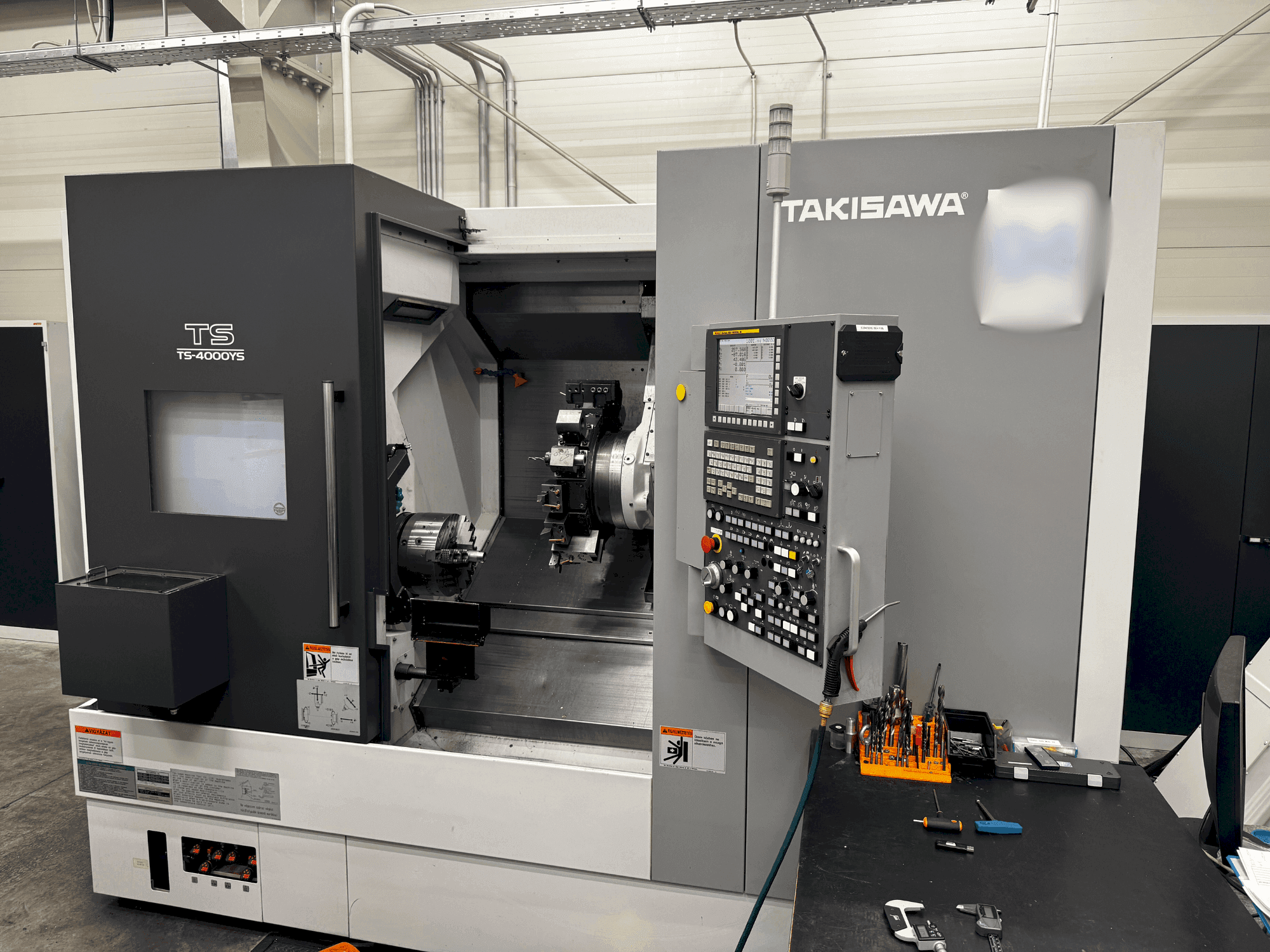

This 3-axis Takisawa TS-4000YS was manufactured in 2021. It features a robust 6200 kg frame with a 30° inclined bed for stability and precision. Key specs include a 22 kW main spindle, 618 Nm torque, and rapid traverses up to 30 m/min. It's equipped with a dual spindle, Y-axis, and a 15-position turret for versatile machining. If you are looking to get high-quality turning capabilities, consider the Takisawa TS-4000YS machine we have for sale. Contact us for more information.

Overview

brand: Takisawa
year: 2021
MODEL: TS-4000YS
application type: Turning
Location: Hungary
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - Takisawa TS-4000YS

General Data

Measurements width: 2140 MM
Measurements depth: 3000 MM
Measurements height: 2300 MM
Machine weight: 6200 KG

Control Unit

Brand: FANUC
Model: Series 32i-Model B

Main drive

Spindle speed range: 4200 1/MIN
Main motor power: 22 kw

Movement

X-AXIS Movement: 267 MM
X-AXIS Rapid traverse: 30 m/min
Y-AXIS Movement: -50 to 70 MM
Y-AXIS Rapid traverse: 30 m/min
Z-AXIS Movement: 840 MM
Z-AXIS Rapid traverse: 30 m/min

Media

Chip conveyor: Yes

Additional equipment

- LNS Barfeeder interface
- Part catcher
- Renishaw tool measurement (main and subspindle also)
- Kitagawa BB-250 3 jaws hydraulic chuck – main spindle
- Kitagawa SS1881K hydraulic hollow cylinder – main spindle
- Kitagawa B-206 3 jaws hydraulic chuck – sub spindle
- Kitagawa SS12640K hydraulic hollow cylinder – sub spindle
- 15 pos turret
- High power coolant pump (520W)
- Work lamp

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Swing diameter: 600 mm
- - Max. Turning diameter and length: Ø 370 x 750 mm
- - Max torque: 618 nm
- - A-axis: 780 mm
- - Trough hole: Ø 82 mm
- - Number of tool positions on turret: 15 pcs
- - Max. Tools speed: 6000 rpm
- - 3 pcs live tool (radial-axial)
- - Live center 2 pcs
- - Static tool holder
Qualitative Machine Benefits:
- - High rigidity and built-in main and sub-spindle enable precise and vibration-free machining.
- - High performance and solid machine bed enable high-volume chip removal.

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
