➤ Used TOP Automazioni FUSION 352 SX For Sale

Show in original language

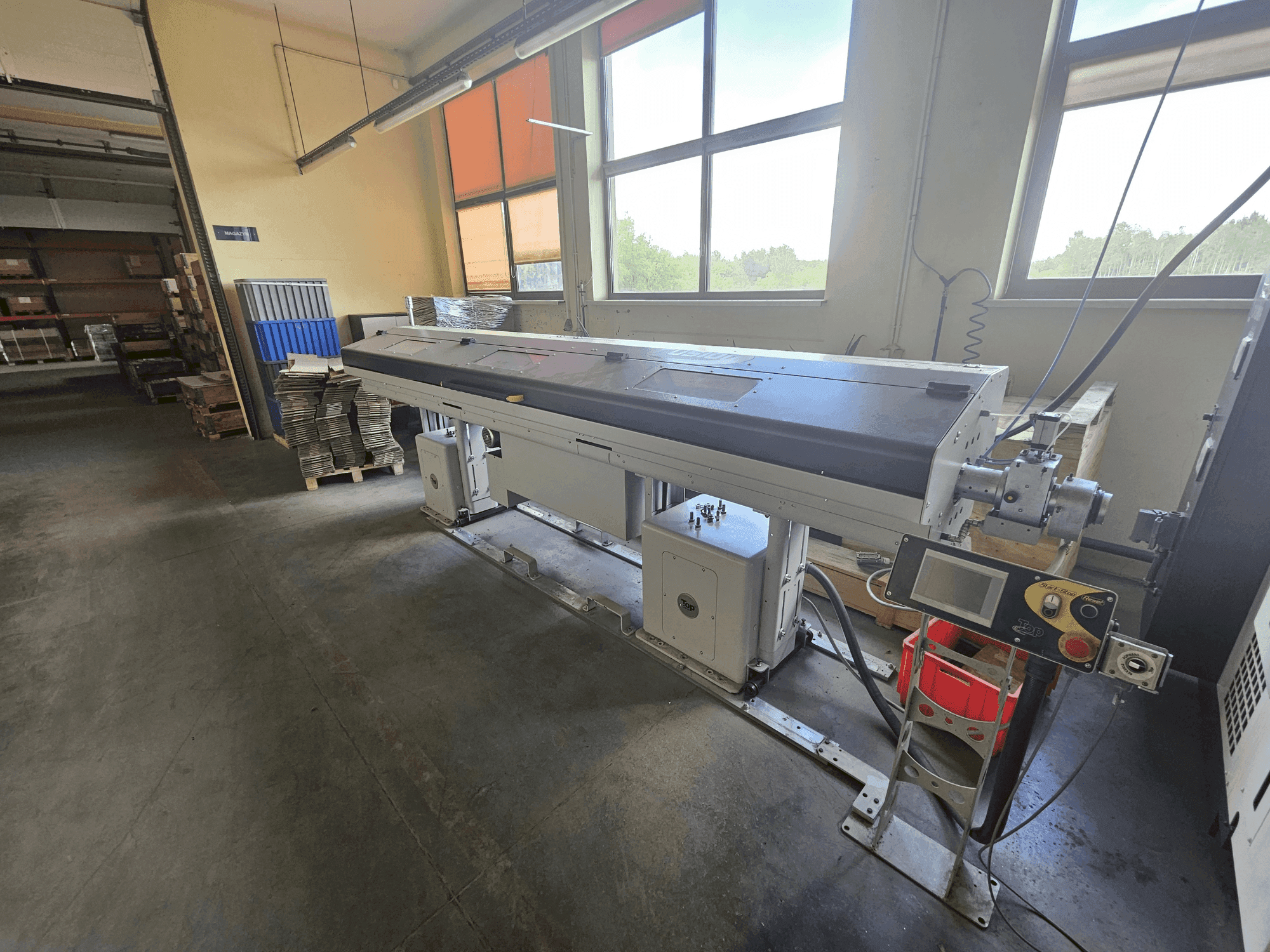

This TOP Automazioni FUSION 352 SX was manufactured in 2020. It is a single-channel bar feeder supporting bar lengths up to 3200 mm and diameters from 8 to 50 mm. Features include a tray width of 235 mm and a manual axial shift for easy spindle access. Dimensions are 4375 x 9000 x 1545 mm, weighing 1200 kg. Consider the opportunity to buy this TOP Automazioni FUSION 352 SX. Contact us for more information.

Overview

brand: TOP Automazioni
year: 2020
MODEL: FUSION 352 SX
production hours: 200
application type: Other Automation Equipment
Location: Poland
machine type: Automation Equipment

Technical Information - TOP Automazioni FUSION 352 SX

General Data

Measurements width: 9000 mm
Measurements depth: 4375 mm
Measurements height: 1545 mm
Machine weight: 1200 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Type: single-channel bar feeder
- - Maximum bar length: 3200 mm
- - Supported bar diameter range: 8 to 50 mm
- - Tray width (bar feeder magazine): 235 mm
- - Manual axial shift: 600 mm for easier access to the lathe spindle
- - Support for small-diameter bars: 8–20 mm
- - The bar feeder is almost new with minimal usage.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
