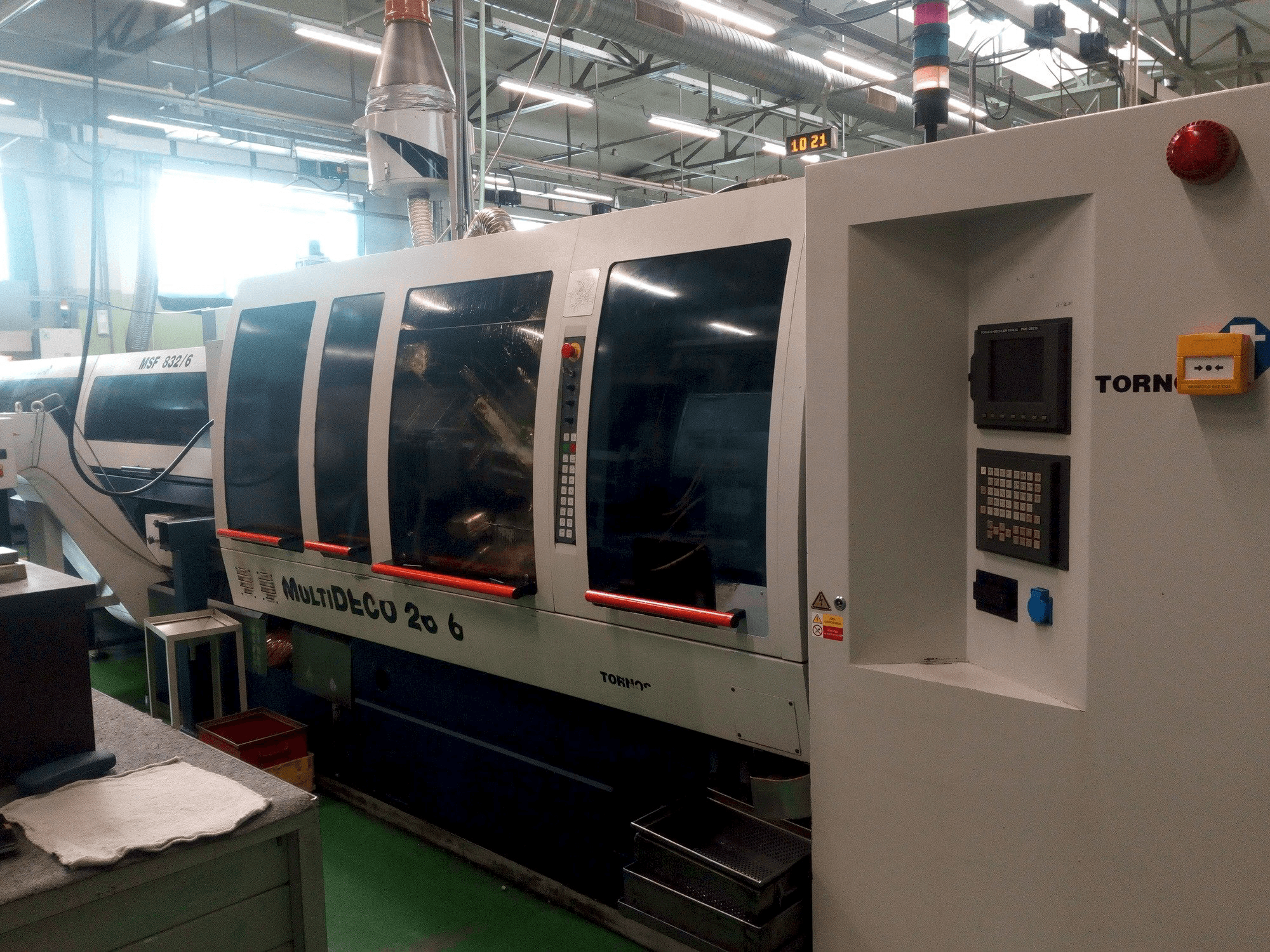

Front view of Tornos Multideco 26/6 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TORNOS Multideco 26/6

Photo Gallery

TORNOS - Multideco 26/6CZ-TUR-TOR-2001-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Tornos Multideco 26/6 Lathe

Show in original language

This Tornos Multideco 26/6 Lathe was built in Germany in 2001 and has been working for 69290 hours. Operated through a FANUC Series 16i Control unit, this machine works with a spindle speed up to 5000 rpm.

Overview

brand: TORNOS
year: 2001
MODEL: Multideco 26/6
production hours: 69290
application type: Turning
Location: Czech Republic
machine type: Swiss Type Turning Machine
control unit brand: FANUC

Technical Information - TORNOS Multideco 26/6

General Data

Measurements width: 6035 mm
Measurements depth: 1600 mm
Measurements height: 1950 mm
Machine weight: 8000 kg

Control Unit

Model: Series 16i
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 5000 1/MIN

Workpiece

Workpiece drm: 26 mm

Media

Power consumption: 57 kVA
Chip conveyor: Yes

Additional equipment

- Bar feeder Robobar MSF 832/6 (bar length 3000 mm)

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Turning diameter: 26 mm
- - Number of spindles: 6 pcs
- - Main motor power: 18 kw (1500 rpm)
- - Torque 114. 6 nm (1500 rpm)
- - Workpiece diameter: 8-26 mm
- - Production capacity 40 pieces/min.
- - Oil filtration
- - Cooling
Qualitative Machine Benefits:
- - Regularly serviced and maintained
- - 2013 - new spindle bearings
- - 2013 - new central shaft
- - 2014 - new screws z13, z26, x3
- - 2014 - new linear guideways
- - 2015 - new motor x7, new hydraulic pump, new threading unit
- - 2018- repair of axes z21, z22, z24; new z12 screw; new motor x3
- - 2019 - new gearbox

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
