TOS FGS 50 CNC-B Milling Machine

Show in original language

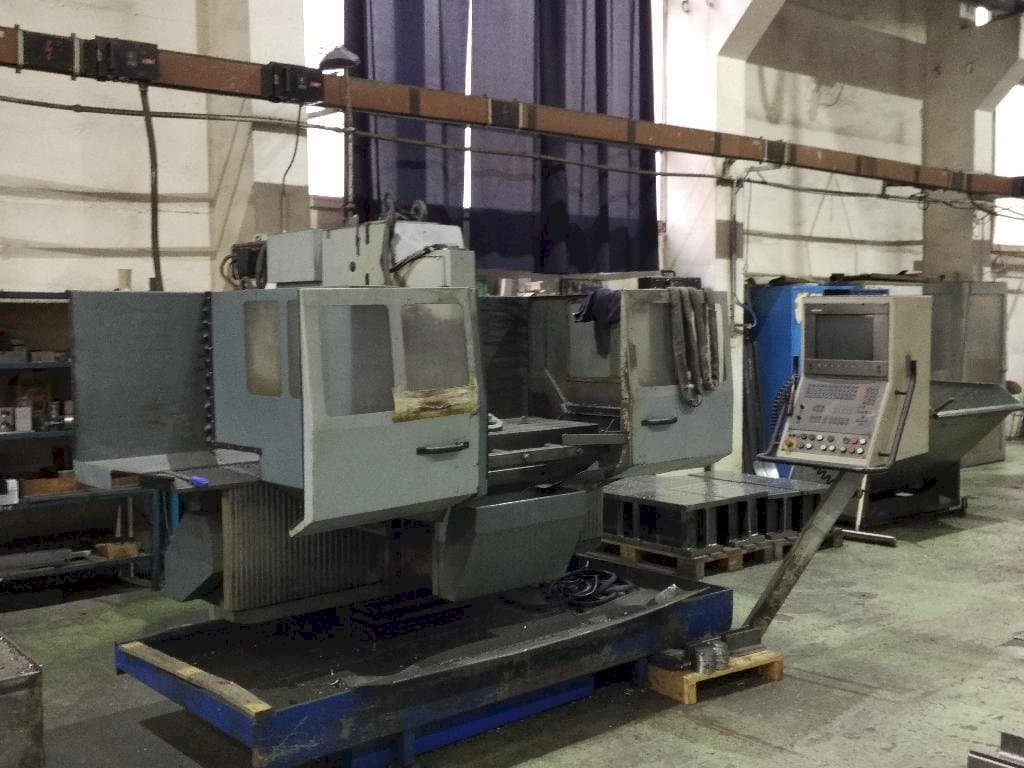

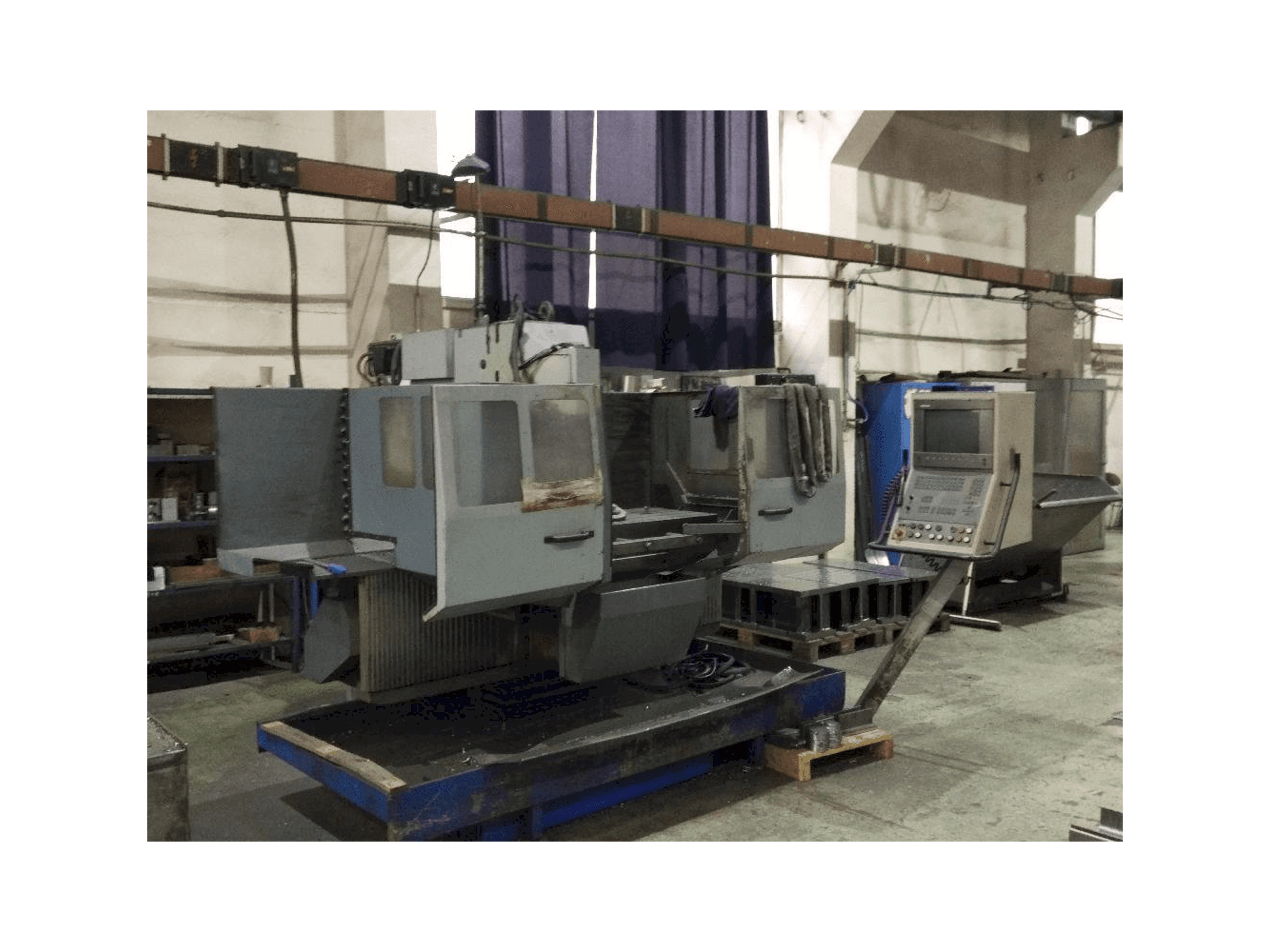

This TOS FGS 50 CNC-B Milling Machine was built in 2001 in the Czech Republic and has been operative for 40000 hours. Equipped with a HEIDENHAIN TNC 410 MA Control unit, this machine can work with a spindle speed up to 4000 rpm.

Overview

brand: TOS
year: 2001
MODEL: FGS 50 CNC-B
production hours: 40000
application type: Milling
Location: Czech Republic
machine type: CNC Milling Machine
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - TOS FGS 50 CNC-B

General Data

Measurements width: 3860 mm
Measurements depth: 5210 mm
Measurements height: 2100 mm
Machine weight: 5260 kg

Control Unit

Model: TNC 410 MA
CNC main language: Czech
CNC language customizable: Yes
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 4000 1/MIN
Spindle motor power: 10 kW

Movement

X-AXIS Movement: 1100 mm
Y-AXIS Movement: 600 mm
Z-AXIS Movement: 500 mm

Workpiece

Workpiece weight: 600 kg

Table

Outer length: 1250 mm
Outer width: 500 mm
Number of tslots: 5

Tools

Type of tool holder: ISO 40

Media

Power consumption: 16 kVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle torque 680 nm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
