TOS Kurim FOQ 80

Photo Gallery

TOS Kurim - FOQ 80CZ-MIL-TOS-2005-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

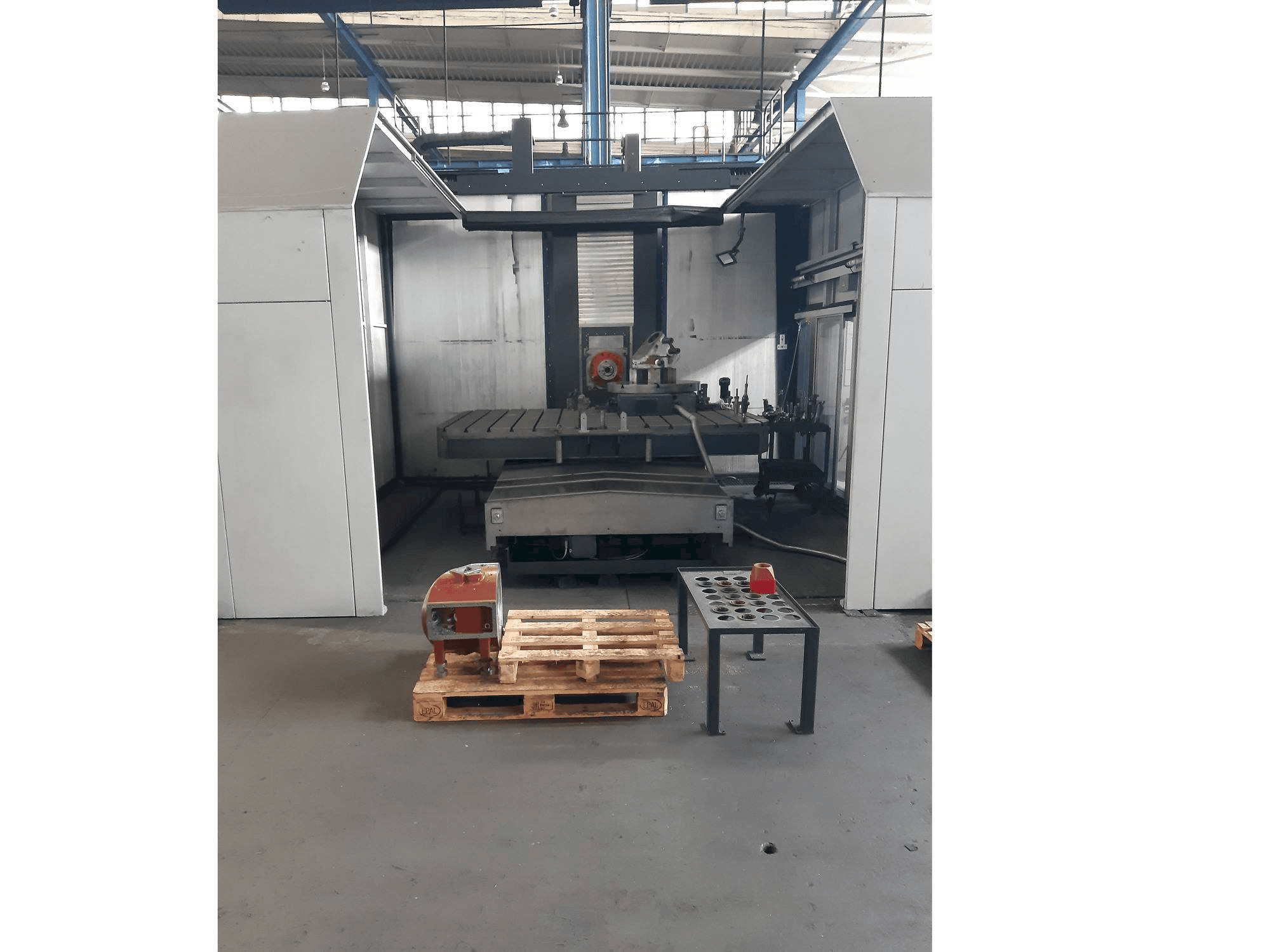

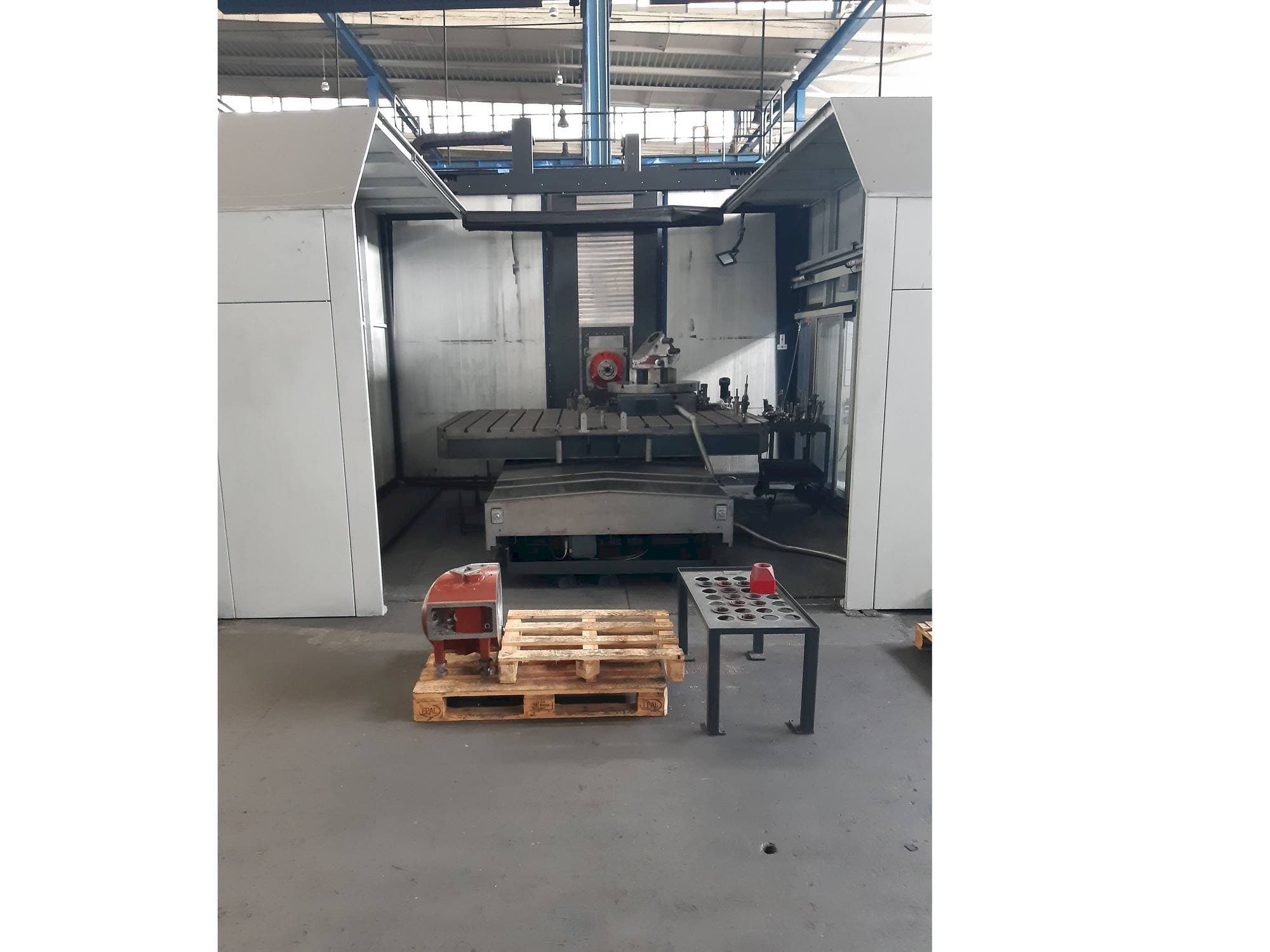

TOS Kurim FOQ 80 Milling Machine

Show in original language

This TOS Kurim FOQ 80 Milling Machine was manufactured in the Czech Republic in the year 2005. This 7 axis machine operates through a Heidenhain iTNC 530 control unit. It can work with a spindle speed up to 4000 rpm. It has a table of 2000 mm outer length and 3000 mm outer width. The machine is in a very good condition.

Overview

brand: TOS Kurim
year: 2005
MODEL: FOQ 80
application type: Milling
Location: Czech Republic
machine type: CNC Milling Machine
control unit brand: HEIDENHAIN

Technical Information - TOS Kurim FOQ 80

General Data

Machine weight: 63000 kg

Control Unit

Model: iTNC 530
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 4000 1/MIN
Spindle motor power: 30 kW
Number of axis: 7

Movement

X-AXIS Movement: 2600 mm
Y-AXIS Movement: 1650 mm
Z-AXIS Movement: 825 mm

Workpiece

Workpiece weight: 25000 kg

Table

Outer length: 2000 mm
Outer width: 3000 mm

Tools

Slots in storage: 20
Max weight: 15 kg
Max tool diameter: 110/200 mm
Max tool length: 300 mm
Type of tool holder: HSK-A100

Media

Power consumption: 60 kVA
Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle for interchangeable heads
- - Working feeds range x, y, z 1 – 30 000 mm/min
- - Maximal feed force 20 000 n
- - Spindle torque 2000nm
- - Head va1: 4000 rpm, 2000 nm, iso50 ad, din
- - 2-axis rotary head vk: 4000 rpm, 1000nm, iso50 ad, din
- - Rmp60 renishaw workpiece probe
- - High pressure cooling 30 bar
Qualitative Machine Benefits:
- - Very good conditions

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
