TOS Kurim FUT 150

Photo Gallery

TOS Kurim - FUT 150CZ-MIL-TOS-2016-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

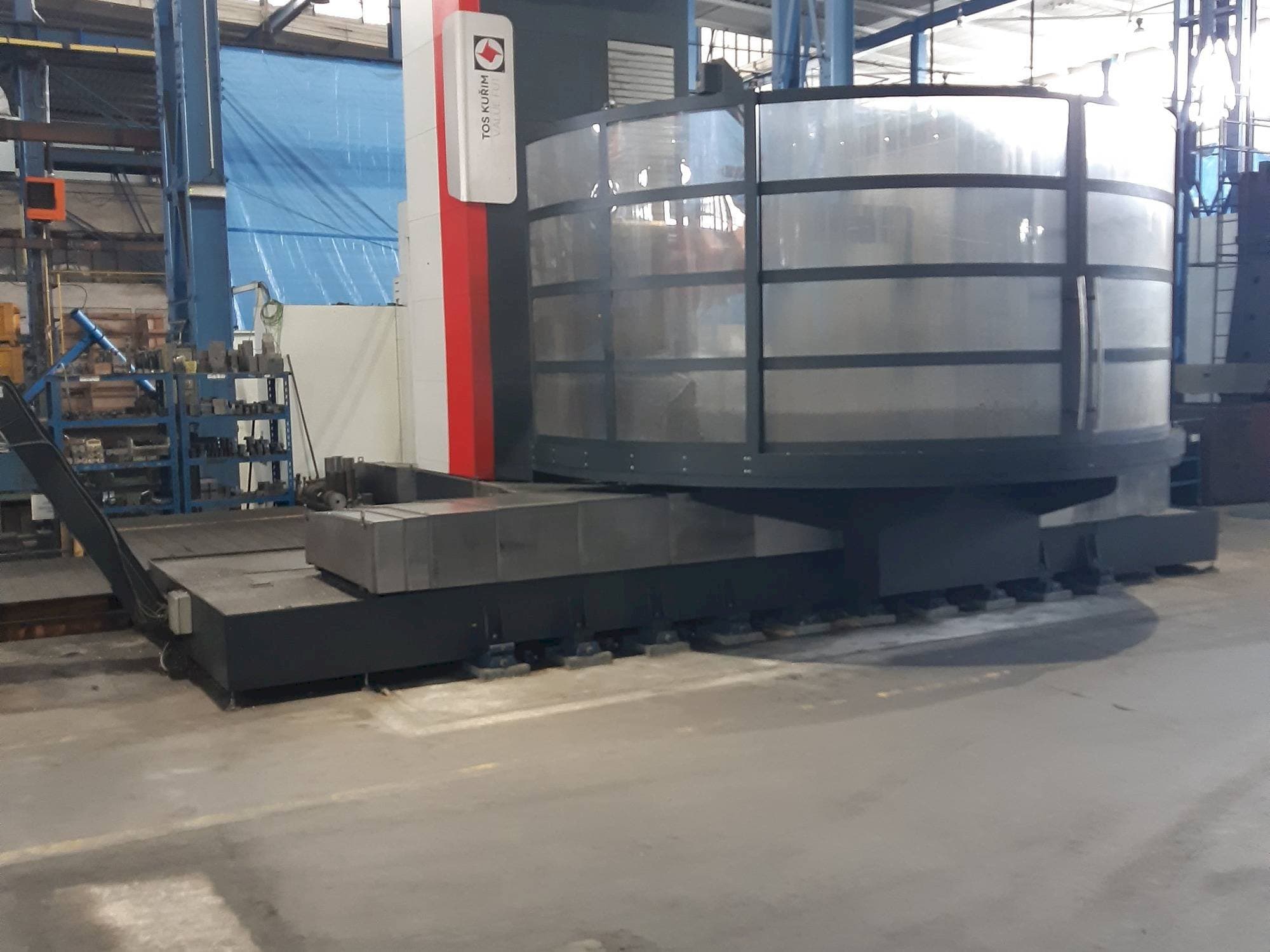

TOS Kurim FUT 150 Milling Machine

Show in original language

This TOS Kurim FUT 150 Milling Machine was manufactured in 2016 in the Czech Republic. This 5 axis machine operates through a Siemens S840 D control unit. It has a spindle speed up to 6000 rpm. It has a table of 1800 x 2200 mm. The machine is in a very good working conditions.

Overview

brand: TOS Kurim
year: 2016
MODEL: FUT 150
application type: Milling
Location: Czech Republic
machine type: Vertical Machining Centre
control unit brand: SIEMENS

Technical Information - TOS Kurim FUT 150

General Data

Machine weight: 29500 kg

Control Unit

Model: S840 D
Brand: SIEMENS

Main drive

Number of spindles: 1
Spindle speed range: 6000 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 3000 mm
X-AXIS Working Feed: 30.000 mm/min
Y-AXIS Movement: 2000 mm
Y-AXIS Working Feed: 30.000 mm/min
Z-AXIS Movement: 1500 mm
Z-AXIS Working Feed: 30.000 mm/min

Workpiece

Workpiece weight: 20000 kg

Table

Outer length: 1800 mm
Outer width: 2200 mm

Additional Information

Additional equipment

Straight head VA1 6000 rpm, 1500Nm, ISO50 AD
Straight head VA2 6000 rpm, 1000Nm, ISO50 AD
2-AXIS HEAD VK 6000 RPM, 1000NM, ISO50 AD, TILT RANGE +90/-120 DEG.

Machine Benefits

Qualitative Machine Benefits

Very good conditions

Technical Machine Benefits

Automatic head exchange - pick-up for 3 heads
Main motor power 37 kw
Cooling through spindle 20 bar
Outer cooling 6 bar
Chip conveyor
Hand wheel ht2
C axis +/-180 degrees, indexation 1 degree

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
