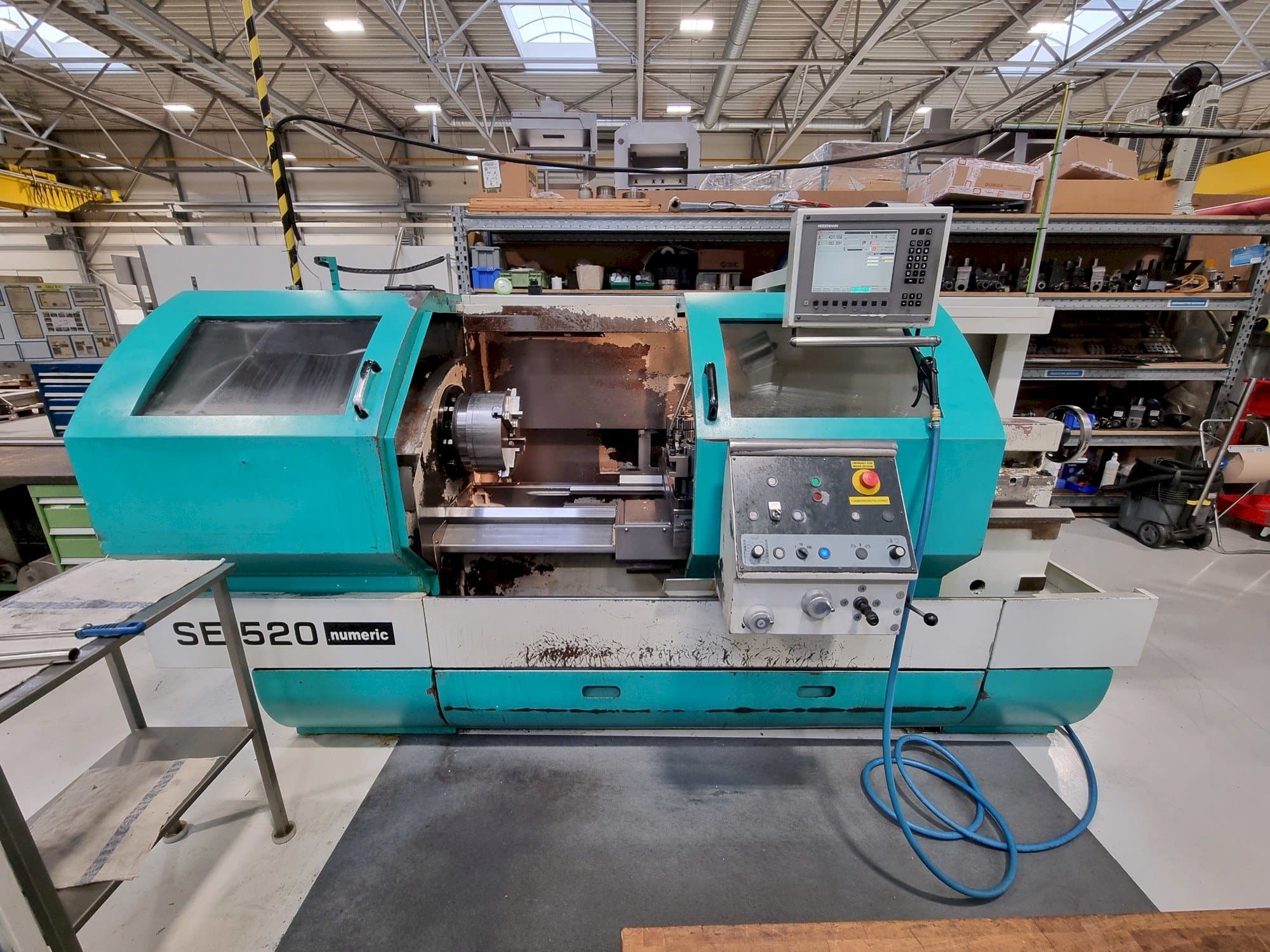

Front view of TRENS SE 520 Numeric machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TRENS SE 520 Numeric

Photo Gallery

TRENS - SE 520 NumericSK-TUR-TRE-2006-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
TRENS SE 520 Numeric

Show in original language

This TRENS SE 520 Numeric Lathe was manufactured in 2006 in Slovakia. Equipped with a Heidenhain control unit. This 2 axis machine operates with one spindle and a maximum cutting length of 1500 mm. Good working conditions, regularly maintained.

Overview

brand: TRENS
year: 2006
MODEL: SE 520 Numeric
application type: Turning
Location: Slovakia
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - TRENS SE 520 Numeric

General Data

Measurements width: 3290 mm
Measurements depth: 1560 mm
Measurements height: 1800 mm
Machine weight: 2800 kg

Control Unit

Brand: HEIDENHAIN

Main drive

Number of spindles: 1

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Swing over bed 520 mm
- - Swing over cross-slide 290 mm
- - Maximum turning length 1500 mm
- - 4-jaw chuck
- - Tailstock
- - 315 mm universal four-jaw chuck for this 2 sets of jaws (instead of the 4-jaw chuck)
- - 315 mm universal three-jaw chuck with 2 sets of jaws
- - Swivel tip 2pcs
- - Spindle bore 105 mm
- - Spindle front bearing dia. 150 mm
Qualitative Machine Benefits:
- - Good condition
- - Regularly maintained

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
