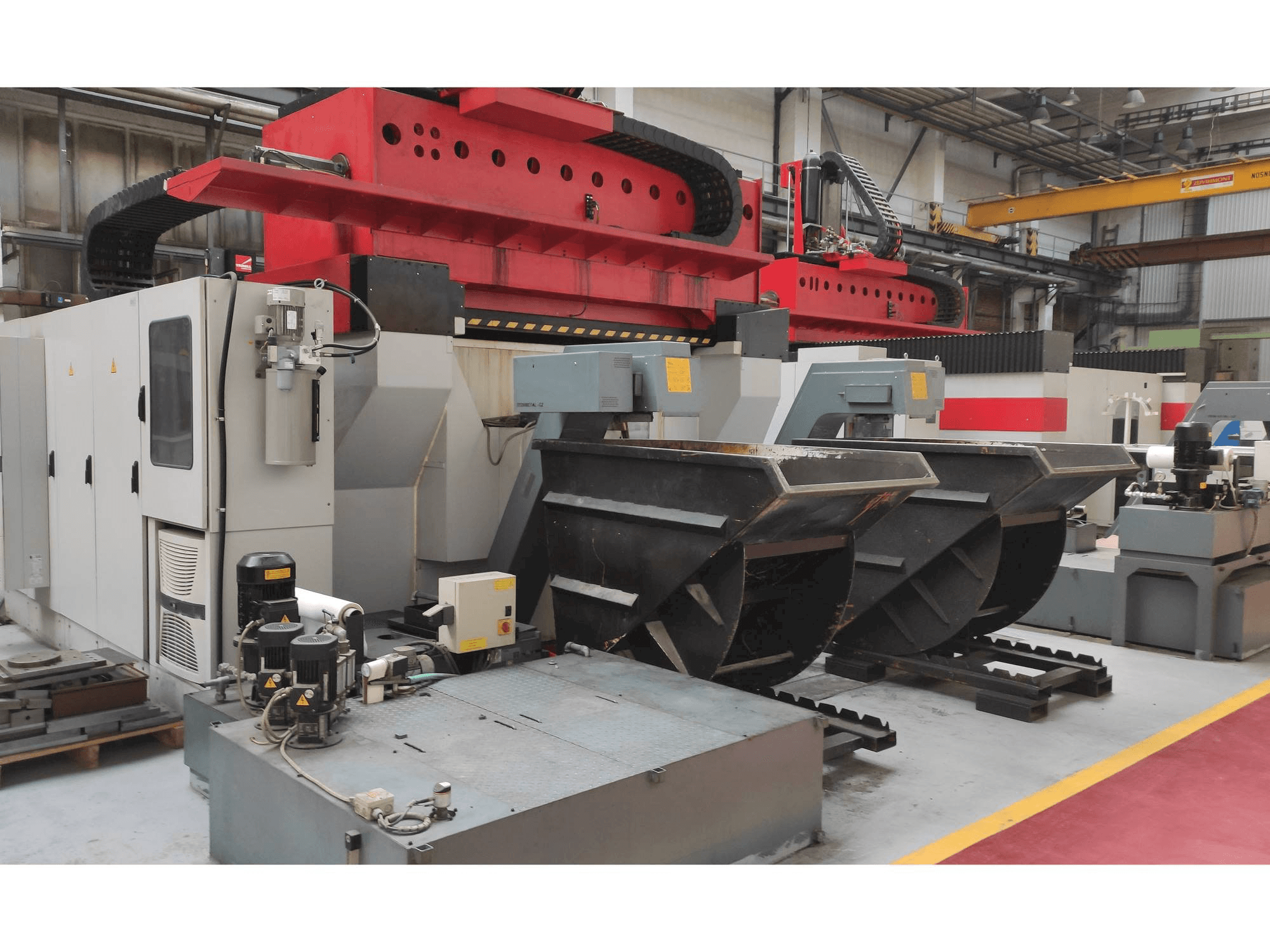

TRIMILL VU 2313

Photo Gallery

TRIMILL - VU 2313CZ-MIL-TRI-2010-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Trimill VU 2313 Vertical Machining center

Show in original language

This Trimill VU 2313 Vertical Machining center was manufactured in the year 2010 in the Czech Republic and has 68648 hours, of which 40637 are spindle hours. It is equipped with a Heidenhain iTNC530 control unit and has 5 axis. The machine has a spindle speed of 10000 rpm, is in good condition, and is well maintained.

Overview

brand: TRIMILL
year: 2010
MODEL: VU 2313
production hours: 68648
application type: Milling
Location: Czech Republic
machine type: Gantry Milling Machine
control unit brand: HEIDENHAIN

Technical Information - TRIMILL VU 2313

General Data

Machine weight: 36000 kg

Control Unit

Model: iTNC530
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 10000 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 2300 mm
Y-AXIS Movement: 1300 mm
Z-AXIS Movement: 1000 mm

Workpiece

Workpiece weight: 18000 kg

Table

Outer length: 1800 mm
Outer width: 1800 mm
TSlots size: 11
Distance between: 160 mm

Tools

Slots in storage: 10
Max weight: 12 kg
Max tool diameter: 110/125 mm
Max tool length: 450 mm
Type of tool holder: HSK-A 100

Media

Main electronic connection: 3x400 V
Power consumption: 59 kVa

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle motor power/torque 25 kw / 195 nm
- - B-axis (head) -2°/+92°
- - C-axis table n x 360°
- - Working feedrates x, y, z 30. 000 mm/min
- - Rapid feedrates x, y, z 3 m/sec²
- - Through spindle coolant
Qualitative Machine Benefits:
- - Good condition!

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
