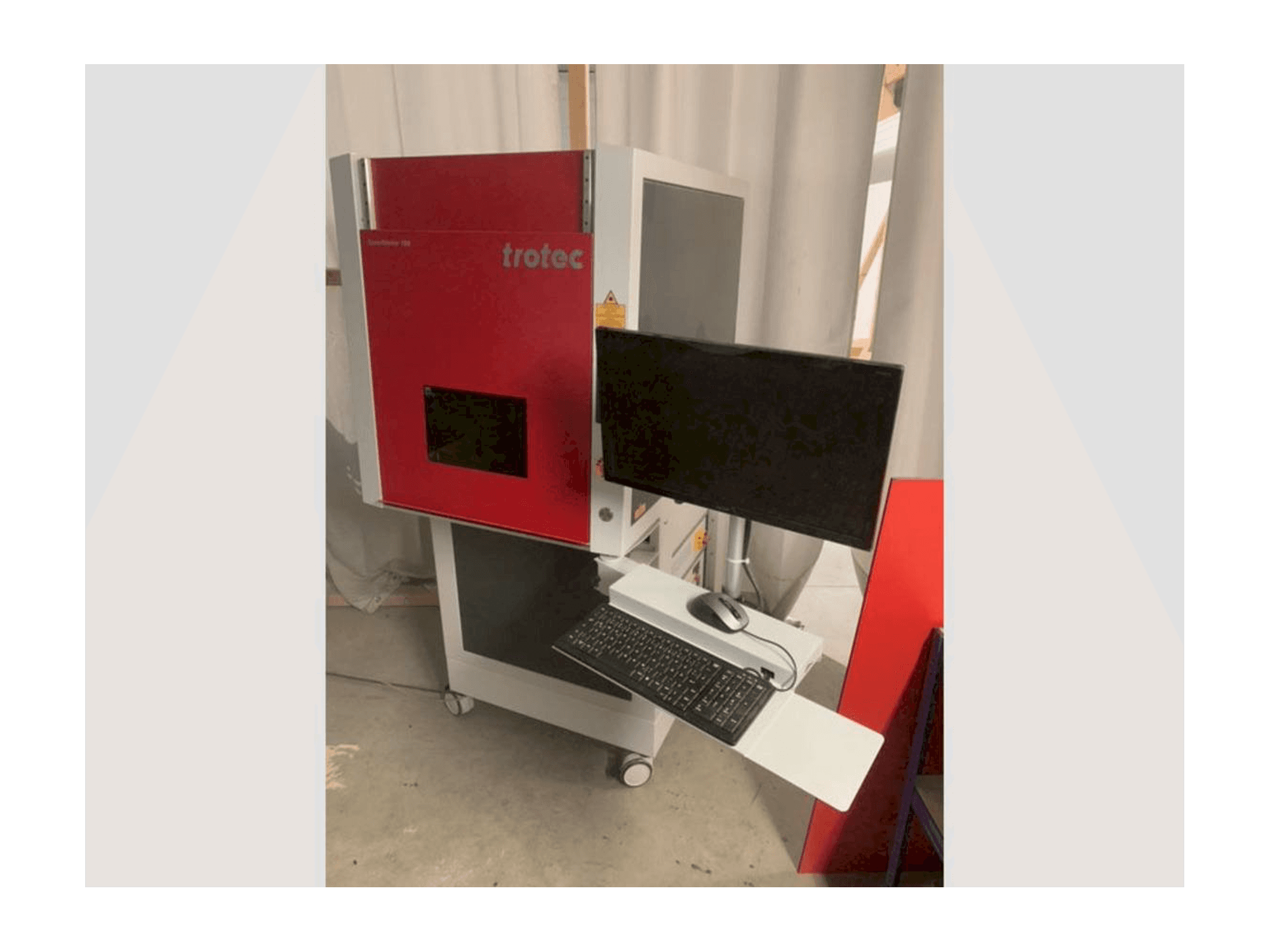

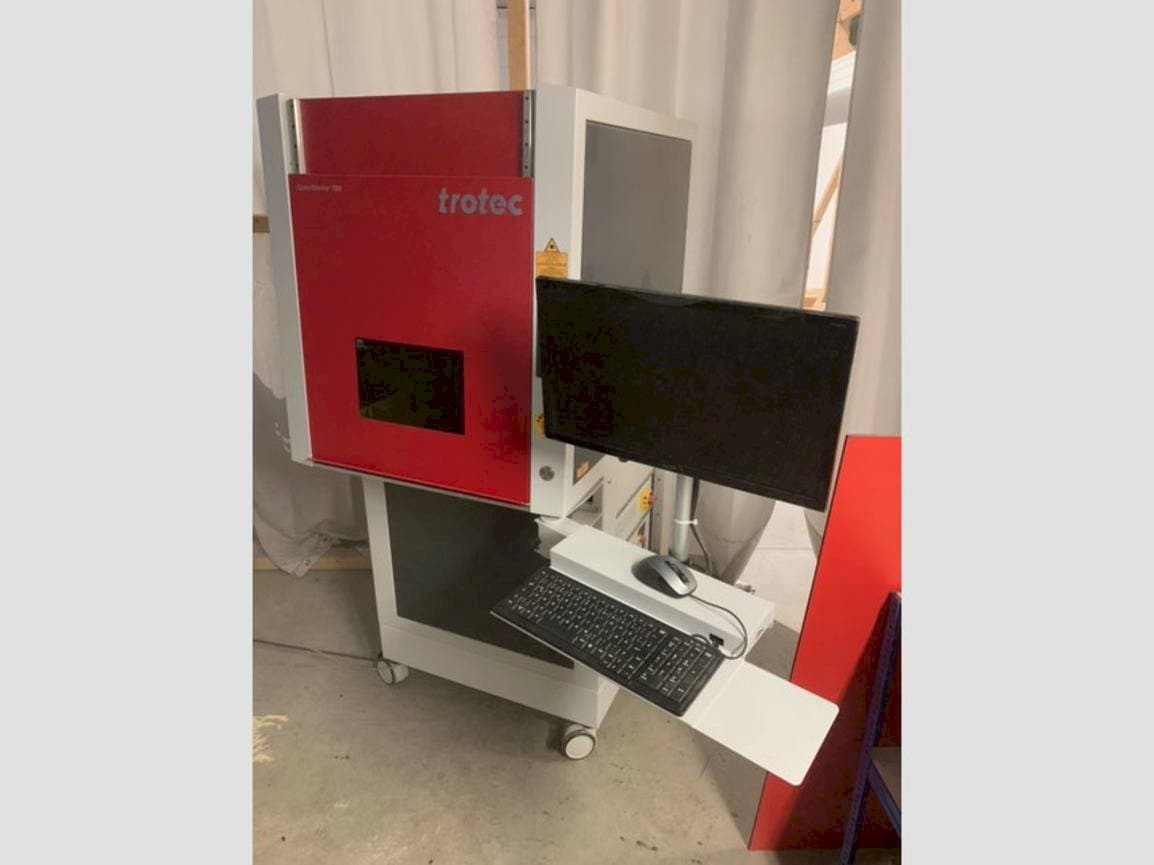

Front view of Trotec Speedmarker 700 SM700HT machine
Front view of Trotec Speedmarker 700 SM700HT machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

Trotec - Speedmarker 700 SM700HTDE-LAS-TRO-2020-00001

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This TROTEC Speedmarker 700 SM700HT FIBER Laser Marking was manufactured in the year 2021 in Germany. The machine has not been used apart from the instruction and is like new. It is equipped with a fiber laser and can operate with a max. load of 1.5 kg.

Overview

  • brand: Trotec
  • year: 2020
  • MODEL: Speedmarker 700 SM700HT
  • application type: Other Sheet Metal Machinery
  • Location: Germany
  • machine type: Laser Marking Machine

Technical Information - Trotec Speedmarker 700 SM700HT

General Data

  • Measurements width: 780 mm
  • Measurements depth: 981 mm
  • Measurements height: 1802 mm

Main drive

  • Laser type: FIBER

Movement

  • X-AXIS Movement: 510 mm
  • Y-AXIS Movement: 190 mm

    Additional Information

    Additional equipment

    • Laser beam sources: Wavelength 1065 +- 5nm, M²= 1.6, laser protection class 4
    • Scan head: galvanometer deflection unit, standard: plane field objective F-Theta 160mm, labelling field approx. 120x120mm
    • Laser control interface: Ready for operation, laser start, marking finished, laser emission, emergency off, safety shutdown
    • Cooling: Air-cooled
    • Labelling software: Speedmark
    • Options: Pilot laser 650mm /<1mW
    • Lenses: f=100mm, labelling field 70x70mm, f=160mm, labelling field 120x120mm, f=254mm, labelling field 190x190mm
    • Laser power: FL MOPA laser

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
