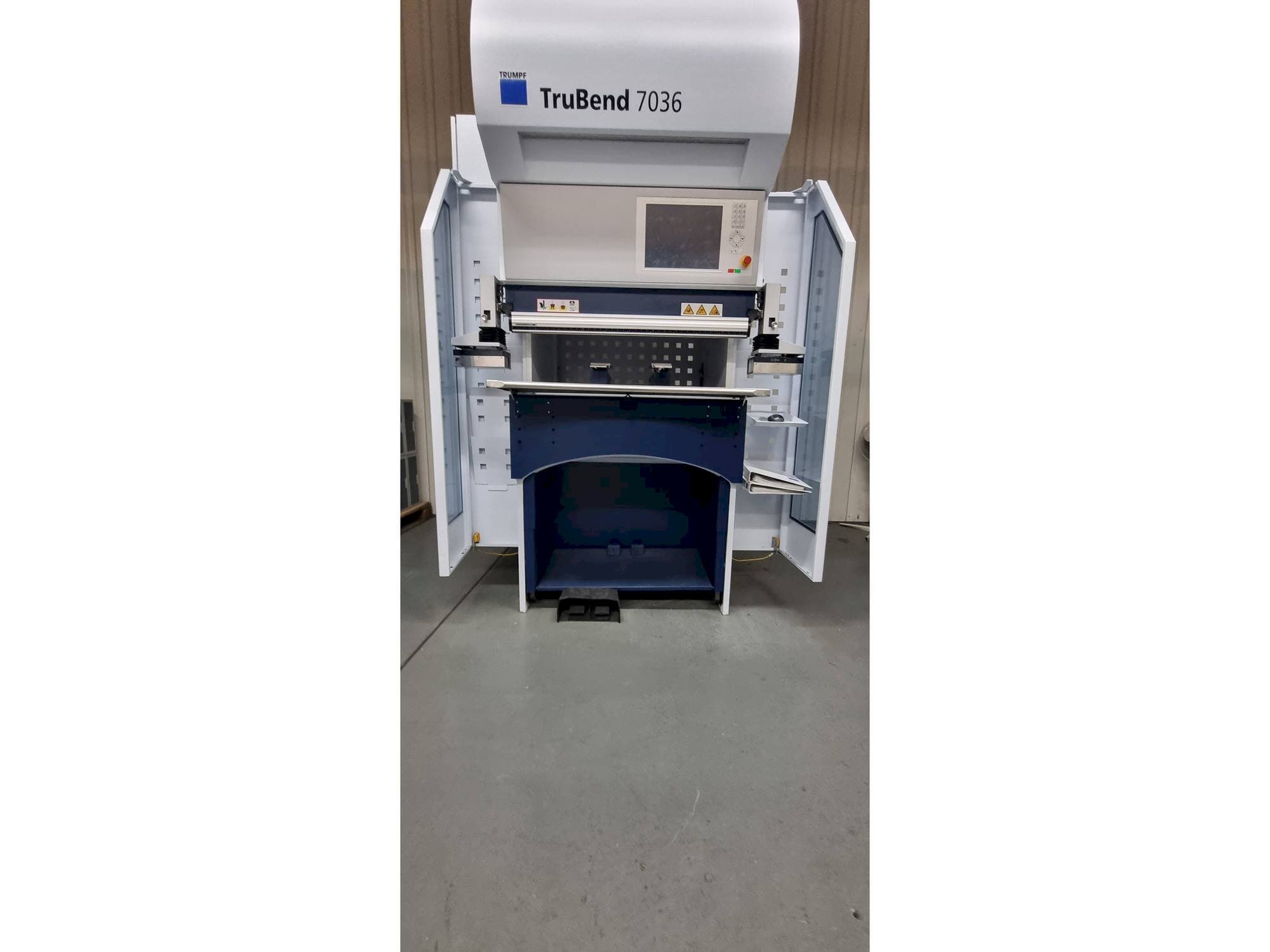

This TRUMPF TruBend 7036 Bending machine was manufactured in the year 2011 in Austria. It has a pressing force of 360 kN and a bending length of 1020 mm. See tech specs extract as PDF (DE) attached.
Overview
- brand: TRUMPF
- year: 2011
- MODEL: TruBend 7036
- application type: Bending
- Location: Germany
- machine type: Press Brake
Technical Information - TRUMPF TruBend 7036
General Data
- Measurements width: 1900 mm
- Measurements depth: 1340 mm
- Measurements height: 2380 mm
- Machine weight: 3300 kg
Main drive
- Pressing force: 360 kN
- Bending length: 1020 mm
- Number of axis: 4
Additional Information
- Technical Machine Benefits:
- - Press force 360 kn
- - Bending length 1020 mm
- - Width between columns 932 mm
- - Usable open height 295 m
- - Throat depth 150 mm
- - Maximum speed y axis, operation 25 mm/s
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
