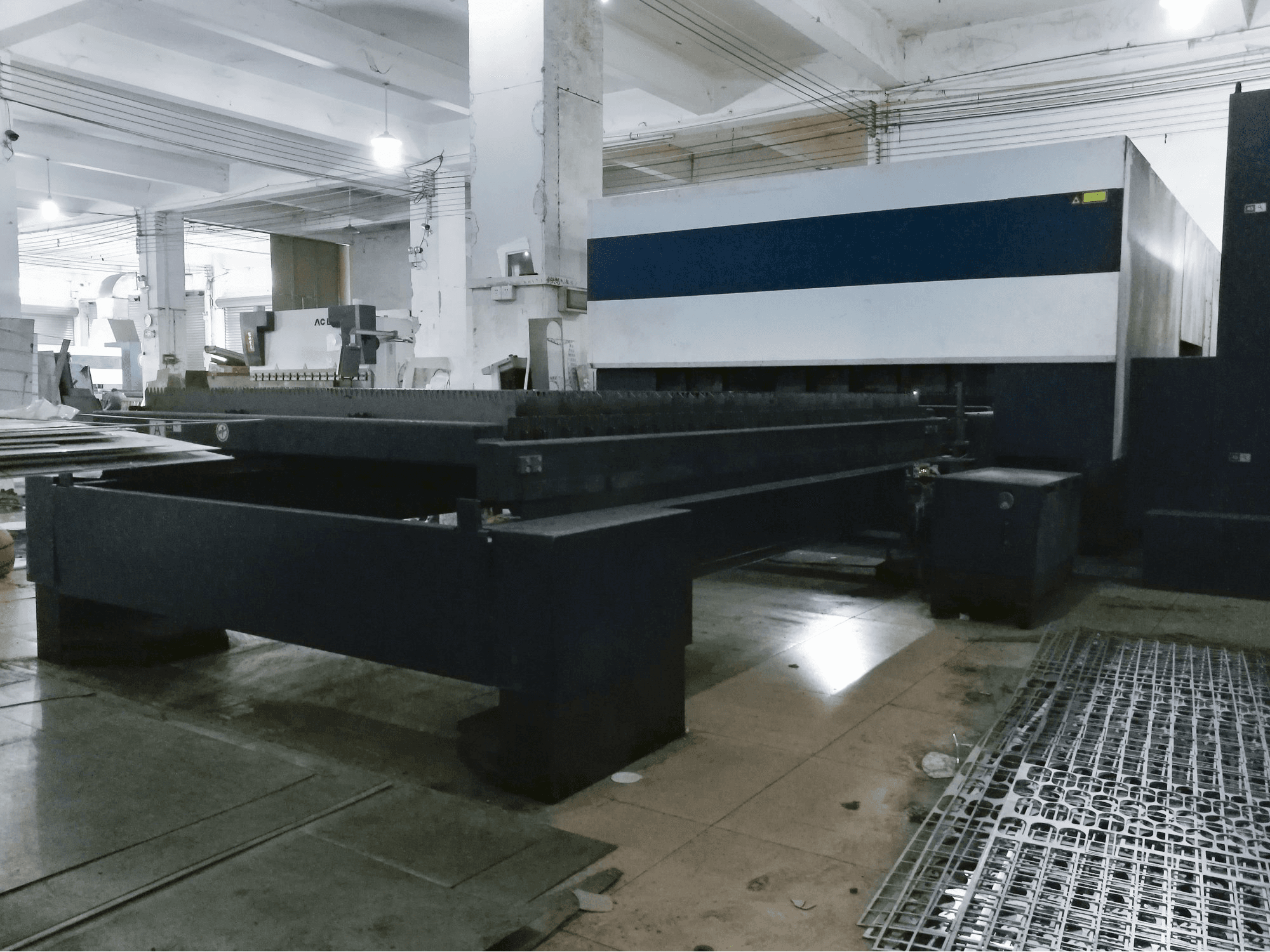

Right view 1 of Trumpf TruLaser 3030 machine
Right view 1 of Trumpf TruLaser 3030 machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

TRUMPF - TruLaser 3030CN-LAS-TRU-2014-00003

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Trumpf TruLaser 3030 Laser Cutting Machine from 2014 holds a production record of 17239 hours and is managed by a SIEMENS SINUMERIK 840D Control unit. Its flexibility and efficiency are regarded as the machine's highlights, as well as its powerful and solid German-manufactured laser.

Overview

  • brand: TRUMPF
  • year: 2014
  • MODEL: TruLaser 3030
  • production hours: 17239
  • application type: Cutting
  • Location: China
  • machine type: CO2 Laser Cutting Machine
  • availability: Sold
  • control unit brand: SIEMENS

Technical Information - TRUMPF TruLaser 3030

General Data

  • Measurements width: 9155 mm
  • Measurements depth: 3400 mm
  • Measurements height: 2200 mm
  • Machine weight: 12000 kg

Control Unit

  • Model: SINUMERIK 840D
  • Interface: USB, Ethernet
  • Brand: SIEMENS

Main drive

  • Number of spindles: 1
  • Laserpower: 4 kW

Movement

  • X-AXIS Movement: 3000 mm
  • X-AXIS Working Feed: 60 m/min
  • Y-AXIS Movement: 1500 mm
  • Y-AXIS Working Feed: 60 m/min
  • Z-AXIS Movement: 115 mm
  • Z-AXIS Working Feed: 60 m/min
  • X-Y-Simultaneous Working Feed: 85 m/min
  • Pa Accuracy: 0.1
  • Ps Accuracy: 0.03

Workpiece

  • Workpiece x: 3000 mm
  • Workpiece y: 1500 mmm

Table

  • Outer length: 3000 mm
  • Outer width: 1500 mm

Max Material thickness

  • Steel: 20 mm
  • Stainless steel: 15 mm
  • Aluminum: 10 mm

Media

  • Main electronic connection: 400 V / 50 Hz
  • Power consumption: 88 kVA
  • Air pressure: 6 bar
  • He consumption: 13.1 l/h
  • CO2 consumption: 1.1 l/h
  • N2 consumption: 5.8 l/h
  • Lubrication tank: 95 L

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Sergi Guardia

Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
