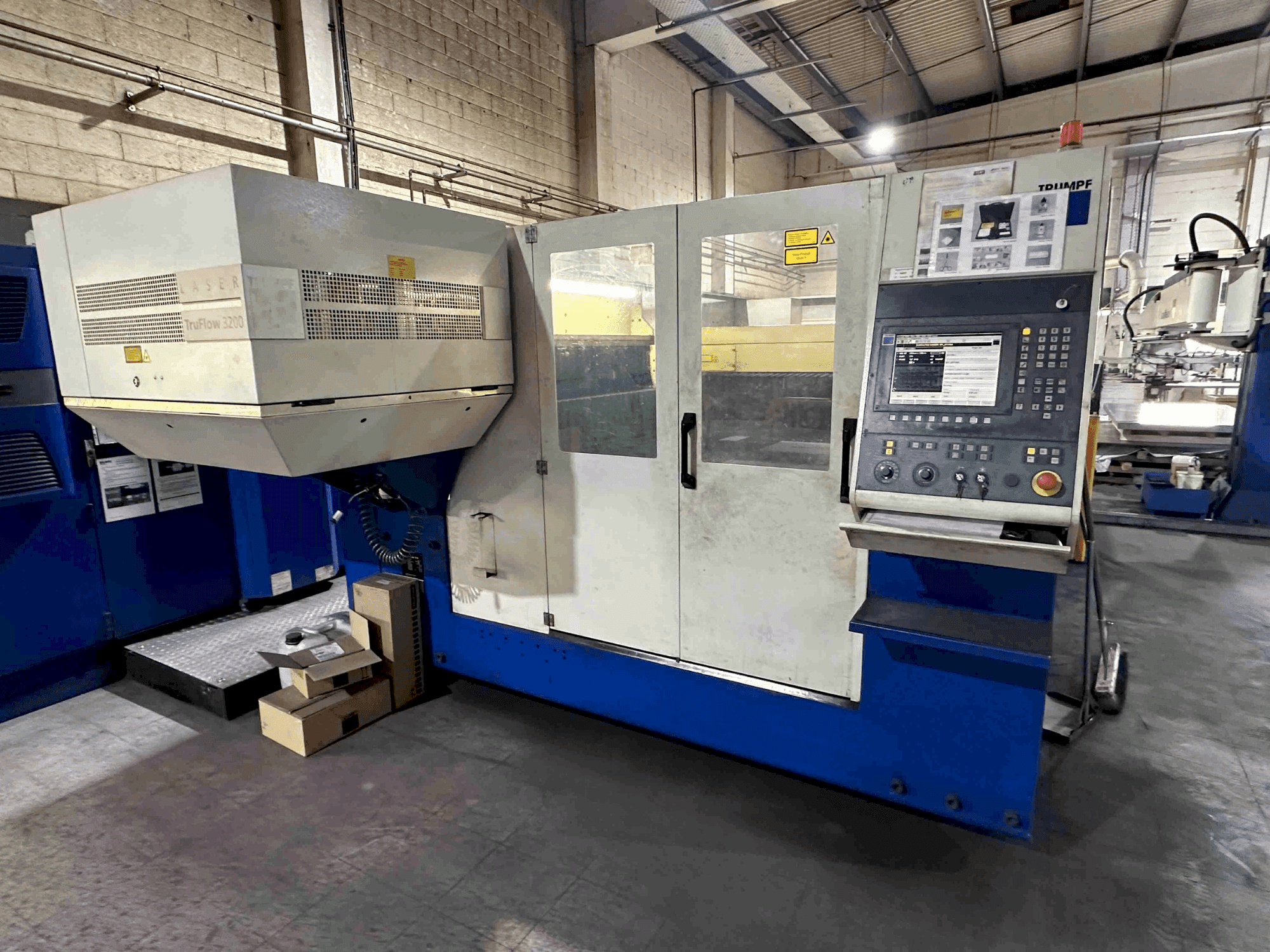

- ➤ Used TRUMPF Trulaser 3030 | Laser Cutting Machine
This Laser cutting machine was manufactured in 2008. A robust Siemens Sinumerik 840D SL control unit enhances its precision, while the powerful 3.2 kW Trumpf laser efficiently handles materials up to 15 mm steel thickness. Ideal for the sheet metal industry, the machine offers a substantial 3000 mm x 1500 mm processing area. Consider the opportunity to buy this TRUMPF Trulaser 3030 Laser cutting machine. For more information about this Laser cutting machine, please reach out to us.
Overview
- brand: TRUMPF
- year: 2008
- MODEL: Trulaser 3030
- application type: Cutting
- Location: Ireland
- machine type: CO2 Laser Cutting Machine
- control unit brand: SIEMENS
Technical Information - TRUMPF Trulaser 3030
General Data
- Measurements width: 7600 mm
- Measurements depth: 6500 mm
- Measurements height: 2200 mm
- Machine weight: 12000 kg
Control Unit
- Model: Sinumerik 840D SL
- Brand: SIEMENS
Main drive
- Plasma brand: Trumpf
- Plasmapower: 3.2 kW
- Laser brand: Trumpf
Movement
- X-AXIS Movement: 3000 mm
- Y-AXIS Movement: 1500 mm
- Z-AXIS Movement: 115 mm
Workpiece
- Workpiece x: 3000 mm
- Workpiece y: 1500 mm
- Workpiece z: 115 mm
- Workpiece weight: 900 kg
Max Material thickness
- Steel: 15 mm
- Stainless steel: 12 mm
- Aluminum: 8 mm
Machine specific data
- Last performed resonator maintenance: 2023
Media
- Main electronic connection: 400 V
- Chip conveyor: Yes
- Internal cooling: Yes
Additional Information
- Material type: Mild steel
- Material thickness: 4 mm
- End product: Enclosures
- Industries: Sheet metal industry
- Qualitative Machine Benefits:
- - Very well maintained machine
- - Machine still under power
Machine history
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
